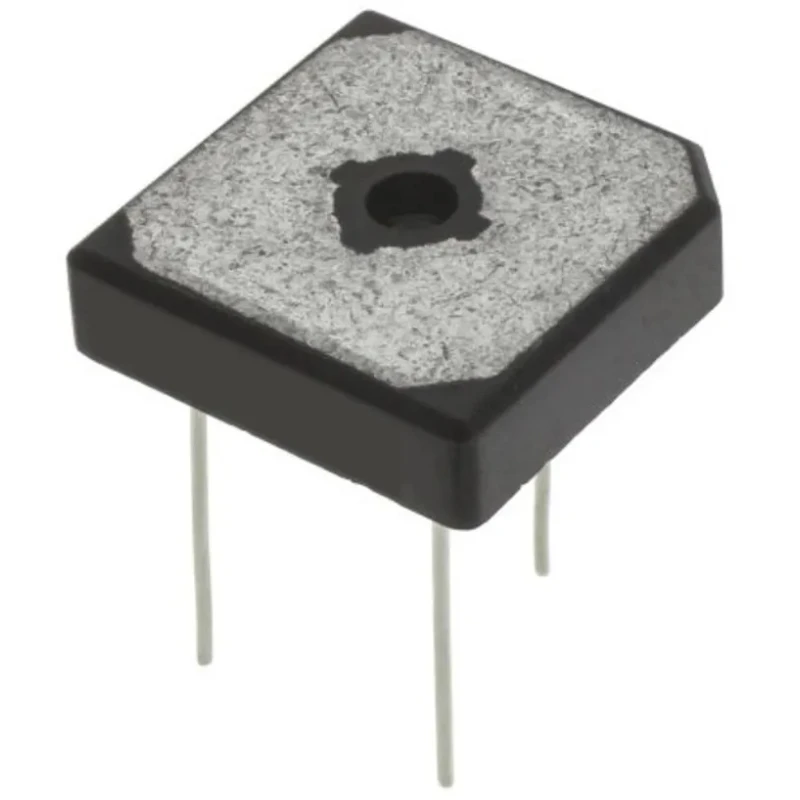

onsemi Bridge Rectifier, 100 V Peak Reverse Voltage, 400 A Peak Surge Current, 4-Pin Through Hole GBPC3501W

onsemi GBPC3501W Bridge Rectifier is a high performance discrete semiconductor designed for industrial and electronic power applications. It is rated with a peak reverse voltage of 100 V and a peak non-repetitive forward surge current of 400 A, making it suitable for robust circuit designs requiring efficient AC to DC conversion.

This device mounts via 4-pin through-hole package (GBPC) facilitating secure placement and stable electrical connections on printed circuit boards. The integrally molded heatsink layout ensures very low thermal resistance which allows for maximum heat dissipation under heavy load operations, thus enhancing reliability and lifespan.

Its operating temperature range spans from -55°C minimum to a maximum of 150°C, allowing it to be used in a broad variety of environments including demanding industrial and automotive applications where temperature extremes may be encountered.

The silver-plated terminals maximize solderability for dependable wire connections, while the isolated case-to-lead voltage rating exceeding 2500 V ensures enhanced electrical isolation and safety. The device's physical dimensions of 29 mm by 29 mm by 11.23 mm render it compact yet powerful.

Applications of the GBPC3501W cover general power rectification tasks across sectors such as industrial machinery, power supplies, and electronic instrumentation, providing a reliable and effective solution for converting AC to DC power.

Features a 4-pin through hole mount for easy PCB installation. Supports a forward current of 35 A and peak surge current of 400 A for reliable operation. Integrally molded heatsink provides excellent heat dissipation to maintain thermal performance.

Operates within a temperature range of -55°C to 150°C for harsh environments. Silver finish terminals ensure solderability for wire connection. Isolated voltage between case and lead exceeding 2500 V enhances safety. Compact dimensions of 29 mm length, 29 mm width, and 11.23 mm height for versatile use.

This product is suitable for use in industrial, electronic, and power conversion applications. It is ideal for designers and engineers requiring dependable bridge rectification with robust electrical and thermal characteristics.
