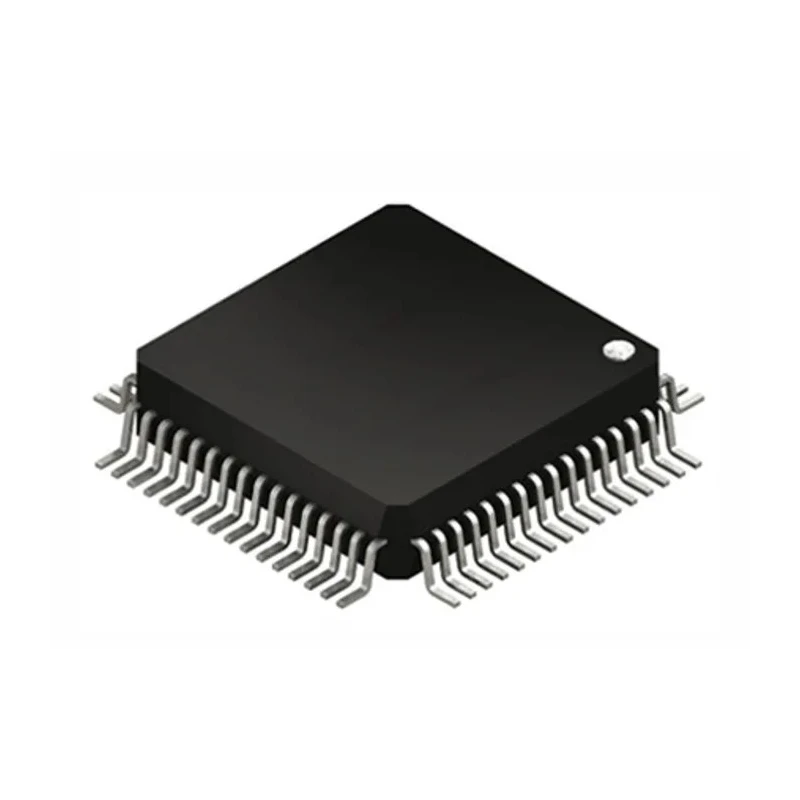

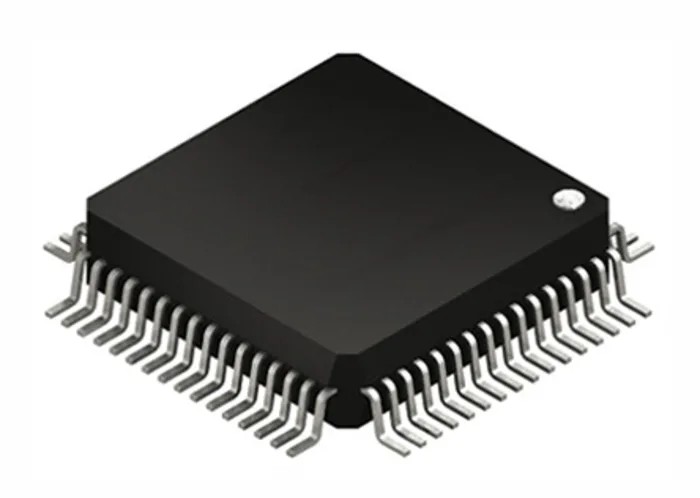

Silicon Labs 8-bit 8051 Microcontroller 64kB FLASH 25MHz 64-Pin TQFP C8051F041-GQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 1.05mm |
| Length | 10mm |
| Model | C8051F041-GQ |
| Width | 10mm |
| Mount Type | Surface |
| Series | C8051F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4.35kB |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Device Core | 8051 |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 25MHz |
| Number of Programmable I/Os | 32 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 4.1MB |
| Number of Timers | 5 |
| Instruction Set Architecture | CISC |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Features a 64-pin TQFP surface mount package for compact PCB integration.
- Operates with an 8-bit data bus width and 4.35kB on-chip RAM for efficient processing.
- Includes two 12-bit DACs and thirteen 12-bit ADC channels for precise analogue signal conversion.
- Supports industrial temperature range from -40°C to +85°C ensuring reliability in harsh environments.
- Equipped with multiple timers and programmable I/Os to enable complex control applications.
- Contains an 8051-compatible CIP-51 microcontroller core providing up to 25 MIPS performance.
- Integrated watchdog timer, voltage monitor, and temperature sensor enhance system safety and stability.
- Supports in-system programmable flash memory allowing firmware updates and flexible application design.
Product Description
Silicon Labs C8051F041-GQ 8-bit 8051 Microcontroller offers advanced mixed-signal capabilities with a 64kB flash memory and a maximum clock frequency of 25 MHz. It is housed in a 64-pin TQFP surface mount package optimized for modern compact industrial and embedded system designs.
Built around a CISC 8051-compatible core, this microcontroller supports 8-bit data bus width and features 4.35kB of onboard RAM. Its comprehensive analogue peripherals include two 12-bit DACs, thirteen 12-bit ADCs with programmable gain amplifiers, and three analogue comparators, enabling high precision data acquisition and control.
The device operates reliably within a broad industrial temperature range from -40°C to 85°C and supports supply voltages from 2.7 V to 3.6 V. It provides 32 programmable I/O pins and additional features such as five 16-bit timers and multiple serial communication interfaces including SPI, SMBus/I2C, and UARTs for versatile connectivity.
Safety and reliability are enhanced by integrated watchdog timers, on-chip voltage monitoring, and temperature sensing, making it suitable for industrial automation, control systems, and instrumentation.
This microcontroller's in-system programmable flash memory allows non-volatile data storage and field-upgradeable firmware, significantly easing development and maintenance processes.
Features a 64-pin TQFP surface mount package for compact PCB integration. Operates with an 8-bit data bus width and 4.35kB on-chip RAM for efficient processing. Includes two 12-bit DACs and thirteen 12-bit ADC channels for precise analogue signal conversion.
Supports industrial temperature range from -40°C to +85°C ensuring reliability in harsh environments. Equipped with multiple timers and programmable I/Os to enable complex control applications. Contains an 8051-compatible CIP-51 microcontroller core providing up to 25 MIPS performance.
Integrated watchdog timer, voltage monitor, and temperature sensor enhance system safety and stability. Supports in-system programmable flash memory allowing firmware updates and flexible application design.
This microcontroller is ideal for industrial, laboratory, embedded control, and automation applications requiring precise analogue and digital processing capabilities. The advanced features combined with compact packaging support efficient system design and reliable operation.
Explore more Microcontrollers and semiconductor products at EnvMart for robust electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 25 MHz.
It operates within an industrial temperature range from -40°C to 85°C.
This microcontroller features 64kB of FLASH program memory.
It is housed in a 64-pin TQFP surface mount package.
The C8051F041-GQ provides 32 programmable I/O pins.
This model has 4.35kB of on-chip RAM.
It includes two 12-bit DACs and thirteen 12-bit ADC channels.
The supply voltage range is from 2.7 V to 3.6 V.
This microcontroller is equipped with five 16-bit timers.
It includes an integrated watchdog timer, voltage monitor, and temperature sensor.
It complies with RoHS standards.
It utilizes an 8051-compatible CISC core architecture.
