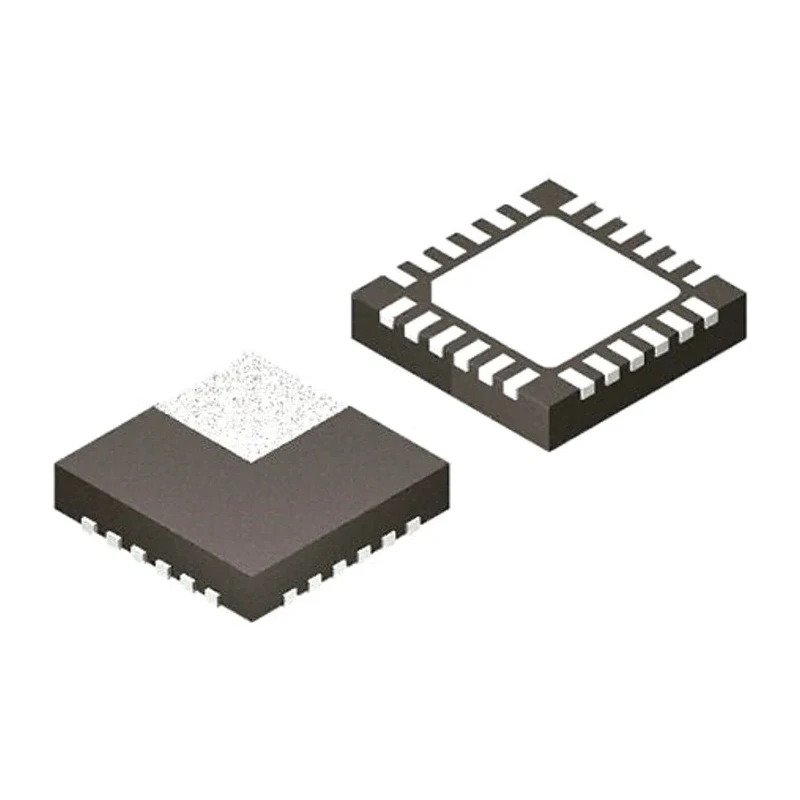

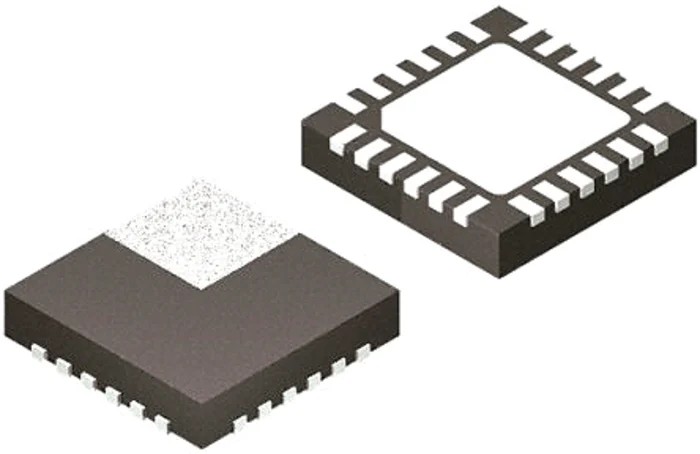

Silicon Labs 8 Bit 8051 C8051F39x Microcontroller, 50 MHz, 16kB FLASH, 24-Pin QFN C8051F390-A-GM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 0.75mm |
| Length | 4mm |
| Model | C8051F390-A-GM |
| Width | 4mm |
| Mount Type | Surface |
| Series | C8051F39x |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | 8051 |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 50MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 1 |
| Maximum Expanded Memory Size | 768bit |
| Number of Timers | 6 |
| Instruction Set Architecture | Pipelined |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 10 Bit |
Key Features
- Operates on a maximum supply voltage of 3.6 V and minimum supply voltage of 1.8 V.
- Features 1kB RAM size and 25 programmable input/output pins for flexible interfacing.
- Incorporates two 10-bit DACs and sixteen 10-bit ADCs for analog signal processing.
- Supports 6 timers and has an operating temperature range from -40°C to 105°C.
- Compact dimensions with 4 mm length, 4 mm width, and 0.75 mm height in a surface-mounted QFN package.
- Utilizes a pipelined 8051 device core architecture for efficient processing.
- Maximum power dissipation of 1 W ensuring low power consumption.
- Complies with RoHS standards for environmental safety.
Product Description
Silicon Labs C8051F390-A-GM is a high-performance 8 bit 8051 microcontroller from the C8051F39x series designed for industrial and embedded applications. It operates at a maximum clock frequency of 50 MHz, providing fast processing capabilities suitable for complex control tasks.
This microcontroller comes with 16kB of FLASH program memory and 1kB of RAM, facilitating efficient code execution and data storage. It includes 25 programmable input/output pins for flexible connectivity with external devices and peripherals.
The device supports 2 digital-to-analog converters (DACs) of 10-bit resolution and 16 analog-to-digital converters (ADCs) also with 10-bit resolution, ideal for advanced analog interfacing and signal conditioning.
Designed to operate over a wide temperature range from -40°C to 105°C, the C8051F390-A-GM is reliable for harsh industrial environments. It includes 6 timers and an analog comparator, enhancing its control and measurement capabilities.
The compact QFN package with dimensions of 4 mm by 4 mm by 0.75 mm supports surface mount technology, enabling space-saving designs on PCBs. The device adheres to RoHS compliance standards, aligning with environmental regulations.
Maximum supply voltage ranges from 1.8V to 3.6V. Maximum power dissipation is rated at 1 watt, ensuring low power usage. Instruction set architecture is pipelined for faster instruction throughput. Includes one analog comparator and supports automotive standards is set to 'No'.
Maximum expanded memory size is 768 bits for additional data storage needs.
This microcontroller is suitable for industrial automation, embedded control, consumer electronics, and communication equipment applications. Its advanced features and compact package make it ideal for integration in high-reliability and space-constrained electronic systems.
Explore more Microcontrollers like this at EnvMart to find the perfect component for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 50 MHz, allowing for fast processing capabilities suitable for complex control tasks.
It operates over a temperature range from -40°C to 105°C, making it suitable for harsh industrial environments.
This microcontroller features 16kB of FLASH program memory, facilitating efficient code execution and data storage.
The QFN package dimensions are 4 mm in length, 4 mm in width, and 0.75 mm in height, supporting surface mount technology.
It includes 25 programmable input/output pins, providing flexible connectivity with external devices and peripherals.
This model incorporates two 10-bit digital-to-analog converters (DACs) and sixteen 10-bit analog-to-digital converters (ADCs) for advanced analog interfacing.
The maximum power dissipation is rated at 1 watt, ensuring low power consumption during operation.
This microcontroller has a RAM size of 1kB, which supports data storage needs during operation.
It supports 6 timers, enhancing its control and measurement capabilities for various applications.
The minimum supply voltage is 1.8V and the maximum supply voltage is 3.6V, allowing for a range of power supply configurations.
Yes, it complies with RoHS standards for environmental safety, aligning with regulations for hazardous substances.
It utilizes a pipelined instruction set architecture, which allows for faster instruction throughput during processing.
