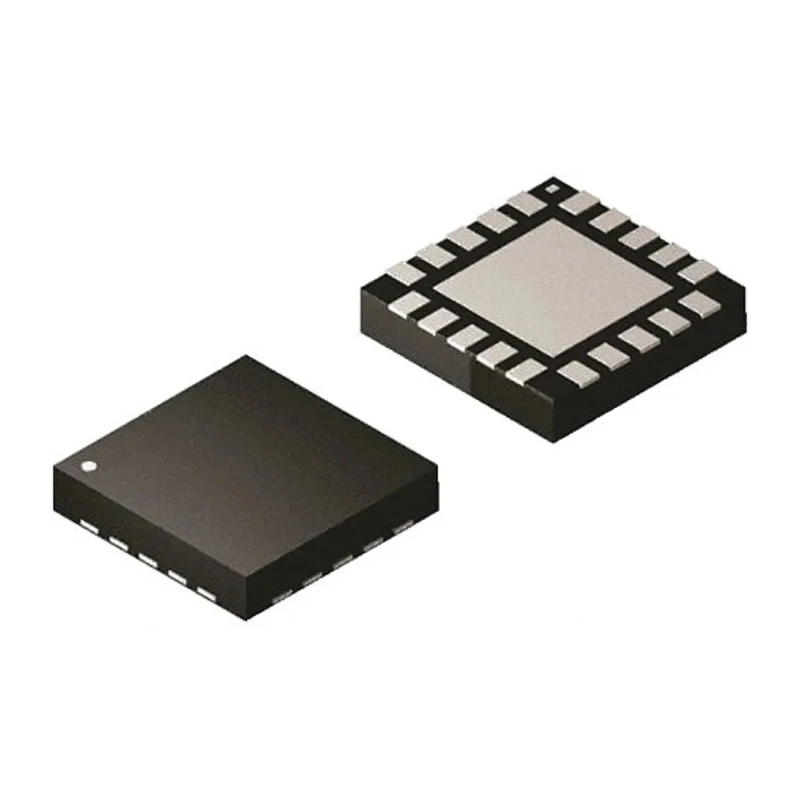

Silicon Labs 8 bit 8051 C8051F39x Microcontroller 50 MHz 16kB FLASH 20-Pin QFN C8051F392-A-GM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 0.85mm |
| Length | 4mm |
| Model | C8051F392-A-GM |
| Width | 4mm |
| Mount Type | Surface |
| Series | C8051F39x |
| Maximum Operating Temperature | 105°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | 8051 |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 50MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 1 |
| Maximum Expanded Memory Size | 768bit |
| Number of Timers | 6 |
| Instruction Set Architecture | Pipelined |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 10 Bit |
Key Features
- Equipped with an 8051 core supporting an 8-bit data bus width.
- Integrated 1kB RAM to efficiently support embedded applications.
- Packaged in a compact 20-Pin QFN surface mount package.
- Supports a maximum supply voltage of 5.5V and minimum supply voltage of 1.8V.
- Includes 36 programmable input/output pins for versatile interfacing.
- Features two 10-bit Digital-to-Analog Converters (DACs) and sixteen 10-bit Analog-to-Digital Converters (ADCs).
- Capable of operating within a wide temperature range from -40°C to 105°C.
- Offers 6 timers and an analogue comparator for advanced timing and comparison functions.
Product Description
Silicon Labs C8051F392-A-GM 8 bit 8051 Microcontroller delivers high performance with a maximum clock frequency of 50 MHz and 16kB of FLASH program memory. Designed with an 8051 device core, it supports an 8-bit data bus width, making it ideal for embedded system designs where efficient and reliable processing is essential.
The device is housed in a 20-Pin QFN surface mount package measuring 4mm x 4mm x 0.85mm, allowing for compact PCB layouts and easy integration into space-constrained applications.
This microcontroller features 1kB of RAM and 36 programmable I/O pins, providing flexibility for a wide range of peripheral connectivity. It includes two 10-bit DACs and sixteen 10-bit ADCs, enabling precise analog signal processing and conversion suitable for industrial, automotive, and consumer electronics applications.
Operating voltage ranges from 1.8V to a maximum of 5.5V, with a maximum power dissipation of 800mW, supporting robust operation under various power conditions. The device complies with RoHS standards, ensuring environmentally responsible manufacturing.
The operating temperature range extends from -40°C to 105°C, supporting demanding industrial, automotive, and harsh environment applications. The inclusion of six timers and an analogue comparator enhances timing control and signal comparison capabilities.
This microcontroller adopts a pipelined instruction set architecture that enables fast and efficient execution of instructions vital in embedded real-time systems. Equipped with an 8051 core with 8-bit data bus width. 16kB of FLASH program memory and 1kB RAM.
Packaged in a 20-Pin QFN with dimensions 4mm x 4mm x 0.85mm. Includes 36 programmable I/O pins, 2 x 10-bit DACs, and 16 x 10-bit ADCs. Operating voltage of 1.8V to 5.5V and max power dissipation of 800mW. Wide operating temperature of -40°C to 105°C.
Six timers and one analogue comparator for versatile signal processing. RoHS compliant for environmental safety. Pipelined instruction set architecture for higher performance. Ideal for applications in industrial control, automation, automotive systems, and consumer electronics requiring reliable and compact embedded microcontroller solutions.
Discover more Silicon Labs Microcontrollers and electronics components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the C8051F392-A-GM microcontroller is 50 MHz.
It features 16kB of FLASH program memory.
The operating voltage ranges from 1.8V to a maximum of 5.5V.
This microcontroller includes 36 programmable I/O pins.
It operates within a wide temperature range from -40°C to 105°C.
It is packaged in a compact 20-Pin QFN surface mount package.
The microcontroller includes sixteen 10-bit Analog-to-Digital Converters (ADCs).
The dimensions are 4mm x 4mm x 0.85mm.
This microcontroller features six timers.
The maximum power dissipation is 800mW.
Yes, it complies with RoHS standards for environmentally responsible manufacturing.
It adopts a pipelined instruction set architecture for higher performance.
