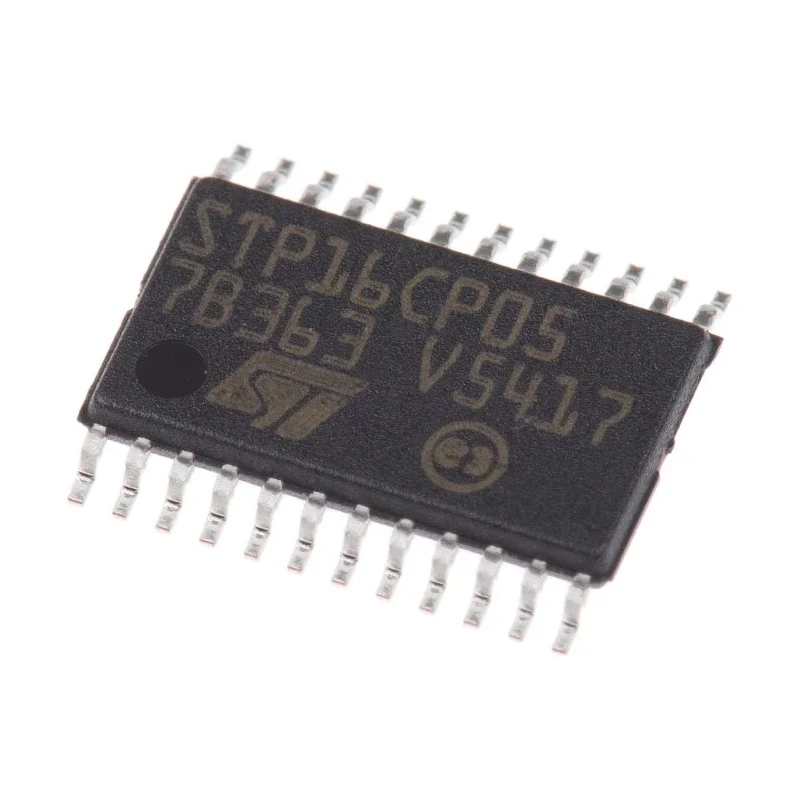

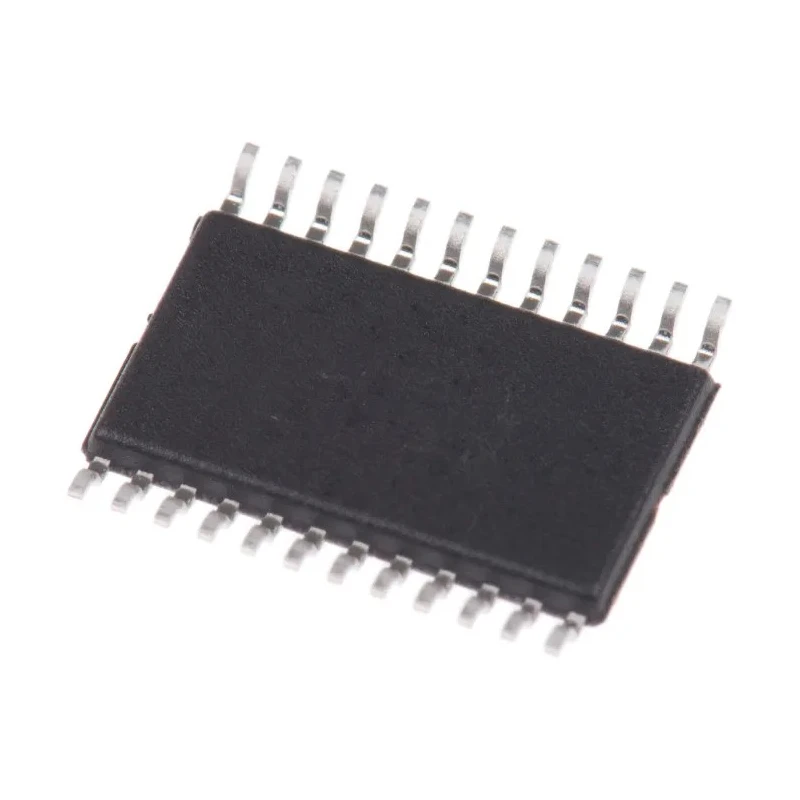

STMicroelectronics LED Driver IC 3V AC, 5.5 V AC, 100 mA, 24-Pin TSSOP STP16CP05TTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 7.9mm |
| Model | STP16CP05TTR |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Series | STP16CP05 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 3, 5.5V ac |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 20V |
| Number of Pins | 24 |
| STMicroelectronics Display Driver, 15mA PWM LED DriverBrand | STMicroelectronics |
Key Features
- This LED driver IC integrates all functions needed to drive high-brightness LEDs constantly.
- The device is packaged in a 24-pin TSSOP package suitable for through-hole mounting.
- Operates within a temperature range from -40°C to 125°C, suitable for industrial applications.
- It supports maximum output voltage of 20 V ensuring compatibility with various LED configurations.
- The compact dimensions of 7.9 mm length, 4.5 mm width, and 1.1 mm height allow flexible PCB layouts.
- Fully compliant with RoHS standards ensuring environmental safety.
- Does not meet automotive standards but is reliable for general electronic components.
Product Description
STMicroelectronics STP16CP05TTR is a 24-pin TSSOP LED Driver IC designed for reliable constant-current driving of LED arrays in electronic circuits. It operates at input voltages of 3 and 5.5 V AC and delivers a steady output current of 100 mA, making it ideal for controlling high-brightness LEDs in indicator and lighting applications.
The device integrates full constant-current control and all necessary functions to simplify LED driver circuitry designs. Its robust operating temperature range from -40°C to 125°C ensures performance stability in demanding industrial and commercial environments.
Featuring a maximum output voltage of 20 V, it supports a wide range of LED configurations with precise current regulation. The package dimensions of 7.9 mm length, 4.5 mm width, and 1.1 mm height in a TSSOP form factor facilitate compact and efficient PCB layouts.
The STP16CP05TTR is RoHS compliant, meeting environmental and safety requirements. Although it does not conform to automotive standards, it is well-suited for electronic component applications in LED lighting control, display backlighting, and signage.
This LED driver IC integrates all functions needed to drive high-brightness LEDs constantly. Compact 24-pin TSSOP package suitable for through-hole mounting. Operates reliably between -40°C and 125°C ambient temperature.
Supports input voltages of 3 V and 5.5 V AC with a 100 mA output current. Maximum output voltage of 20 V for versatile LED arrays. RoHS compliant for eco-friendly electronic manufacturing. Ideal for industrial, commercial, and electronic lighting systems.
This product is ideal for applications in industrial electronics, LED lighting systems, electronic displays, and laboratory instrumentation. EnvMart offers a full range of STMicroelectronics LED Driver ICs and components, supporting your design and manufacturing needs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this LED driver IC is 20 V, allowing it to support various LED configurations.
It operates with input voltages of 3 V and 5.5 V AC.
The output current rating for this LED driver IC is 100 mA, suitable for driving high-brightness LEDs.
It operates within a temperature range from -40°C to 125°C, making it suitable for industrial applications.
The dimensions of this model are 7.9 mm in length, 4.5 mm in width, and 1.1 mm in height.
This LED driver IC is designed for through-hole mounting, which facilitates its integration into various PCB layouts.
Yes, this LED driver IC is fully compliant with RoHS standards, ensuring it meets environmental safety requirements.
It comes in a 24-pin TSSOP package, which is compact and suitable for efficient PCB layouts.
This model is suitable for applications in industrial electronics, LED lighting systems, electronic displays, and laboratory instrumentation.
No, the STP16CP05TTR does not meet automotive standards but is reliable for general electronic component applications.
This model belongs to the STP16CP05 series of LED driver ICs.
The STP16CP05TTR has a total of 24 pins.
