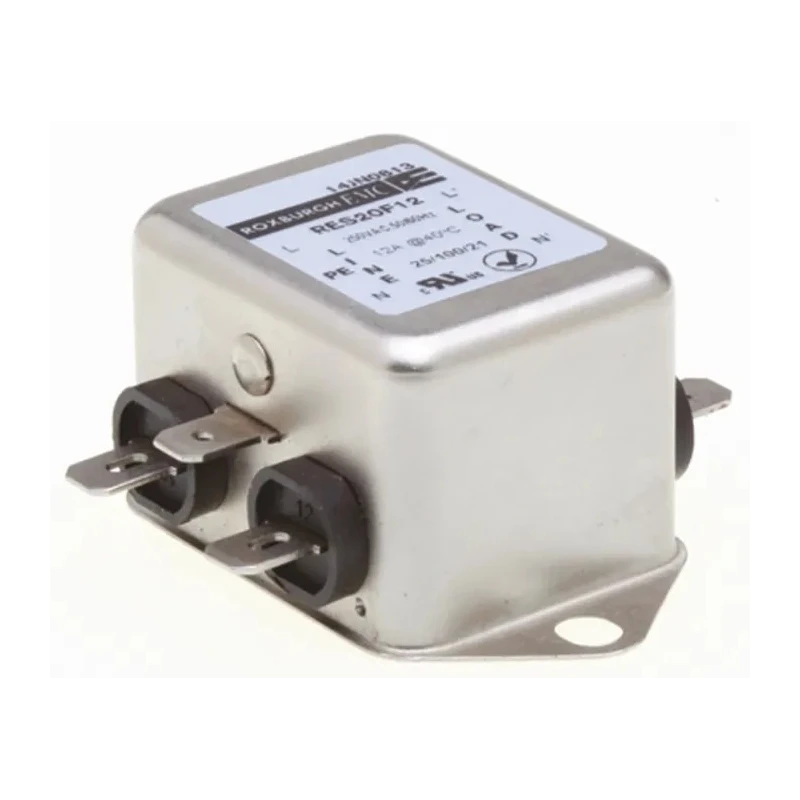

Roxburgh EMC Single Phase Chassis Mount RFI Filter 12A 250V AC 400Hz Fast-On Termination RES20
Specifications
| Country of Origin | India |
|---|---|
| Brand | Roxburgh EMC |
| Height | 29.3mm |
| Length | 64mm |
| Model | RES20 |
| Depth | 35mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | RES20 |
| Maximum Operating Temperature | 100°C |
| Resistance | 1mΩ |
| Capacitance | 300nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 12A |
| Number of Phases | 1 |
| Leakage Current | 740μA |
| Maximum Voltage | 250V ac |
| Inductance | 700μH |
| Standards/Approvals | UL 1283, CSA 22.2 No. 8 |
| Termination Style | Fast-On |
Key Features
- Single phase operation suitable for general purpose filtering applications.
- Rated maximum current of 12 amperes and voltage of 250V AC at 400Hz frequency.
- Compact chassis mount design with Fast-On termination style for easy installation.
- Equipped with 300nF capacitance and 700μH inductance for high differential mode attenuation.
- Operating temperature range from -25°C to 100°C for versatile use environment.
- Low leakage current of 740μA ensuring high efficiency and safety.
- Complies with UL 1283 and CSA 22.2 No. 8 standards for quality assurance.
- Ideal for use in electrical, electronic equipment, office automation, household appliances, and communication systems.
Product Description
Roxburgh EMC RES20F12 single phase chassis mount RFI filter is a high-performance Power Line Filter engineered for attenuation of conducted radio frequency interference (RFI) in systems operating from DC up to 400Hz. Featuring a rated maximum current of 12 amperes and maximum voltage rating of 250V AC, this filter incorporates a compact design suitable for quick and easy chassis mounting.
The RES20 series provides excellent differential mode attenuation, making these filters ideal for use in electrical and electronic equipment, household devices, building automation, machinery, and communication equipment. The filter termination employs Fast-On style connectors, allowing efficient installation and replacement in industrial and laboratory setups.
Technical parameters include a capacitance of 300nF and inductance of 700μH, supporting superior suppression of interference without compromising power quality. The product is designed to operate reliably within a temperature range from -25°C to 100°C and maintains a leakage current of only 740μA.
With physical dimensions of 64mm length, 35mm depth, and 29.3mm height, the RES20F12 filter fits compactly in control panels or equipment housing. It complies with UL 1283 and CSA 22.2 No. 8 safety standards, assuring users of compliance and safety in demanding industrial environments.
This RFI filter finds wide application across industries such as manufacturing, commercial automation, office automation, and consumer electronic products, effectively reducing electromagnetic interference and enhancing system stability.
Single phase operation suitable for general purpose filtering applications. Rated maximum current of 12 amperes and voltage of 250V AC at 400Hz frequency. Compact chassis mount design with Fast-On termination style for easy installation.
Equipped with 300nF capacitance and 700μH inductance for high differential mode attenuation. Operating temperature range from -25°C to 100°C for versatile use environment. Low leakage current of 740μA ensuring high efficiency and safety.
Dimensions of 64mm length, 35mm depth, and 29.3mm height for space-saving integration. Complies with UL 1283 and CSA 22.2 No. 8 standards for quality assurance. Ideal for use in electrical, electronic equipment, office automation, household appliances, and communication systems.
Explore more high quality EMI and Power Line Filters in the Electronics Components category at EnvMart for reliable noise suppression solutions.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this RFI filter is 12 amperes.
It has a maximum voltage rating of 250V AC.
This filter operates at a frequency of 400Hz.
The dimensions are 64mm in length, 35mm in depth, and 29.3mm in height.
It employs a Fast-On termination style for easy installation.
The capacitance value is 300nF.
The inductance is rated at 700μH.
The operating temperature range is from -25°C to 100°C.
The leakage current is 740μA.
It complies with UL 1283 and CSA 22.2 No. 8 standards.
This filter is suitable for use in electrical and electronic equipment, office automation, household appliances, and communication systems.
It features a chassis mount design.
