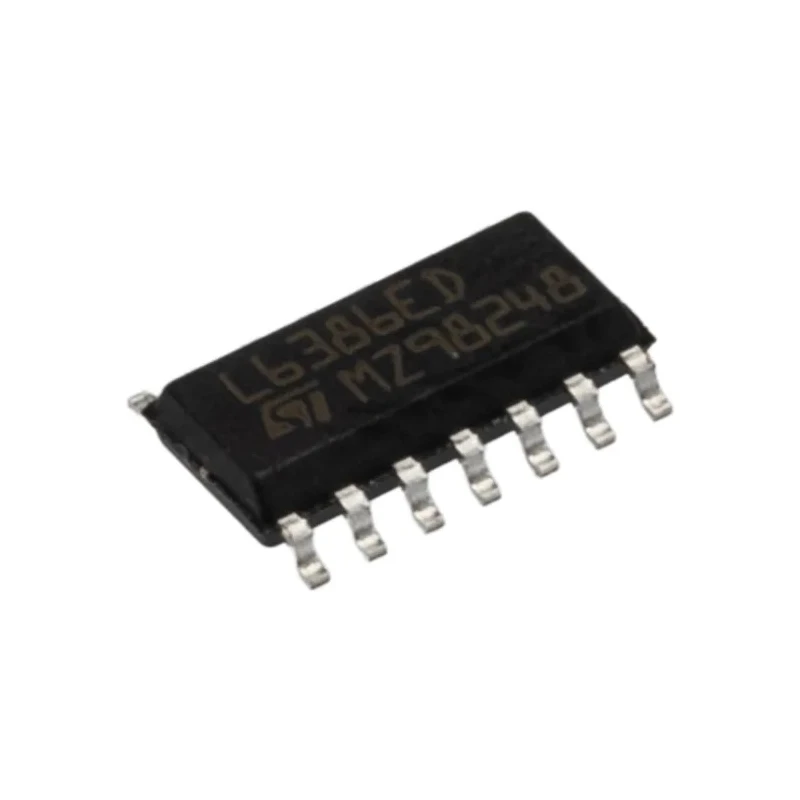

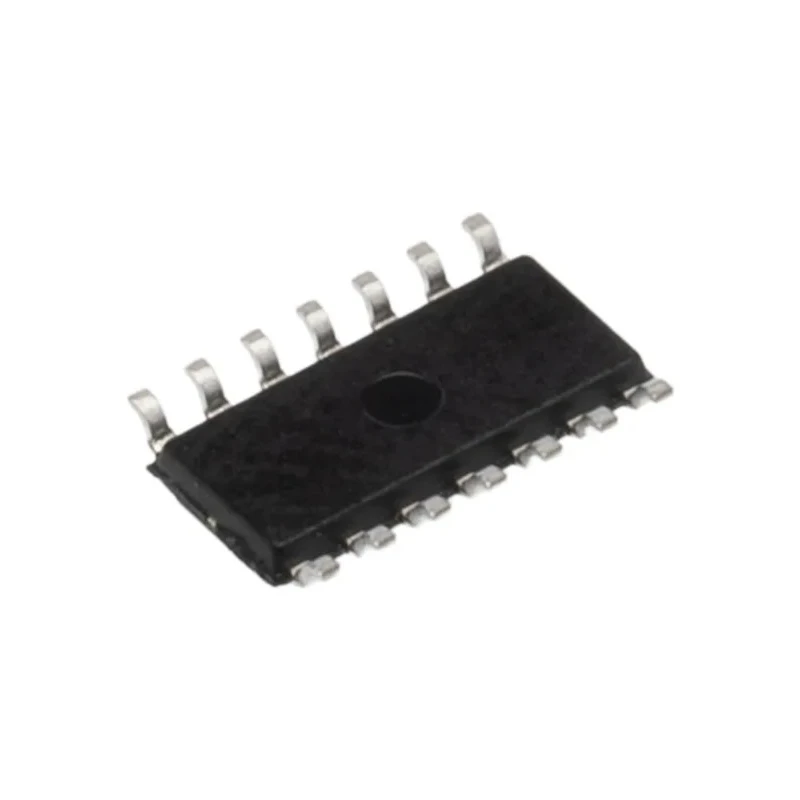

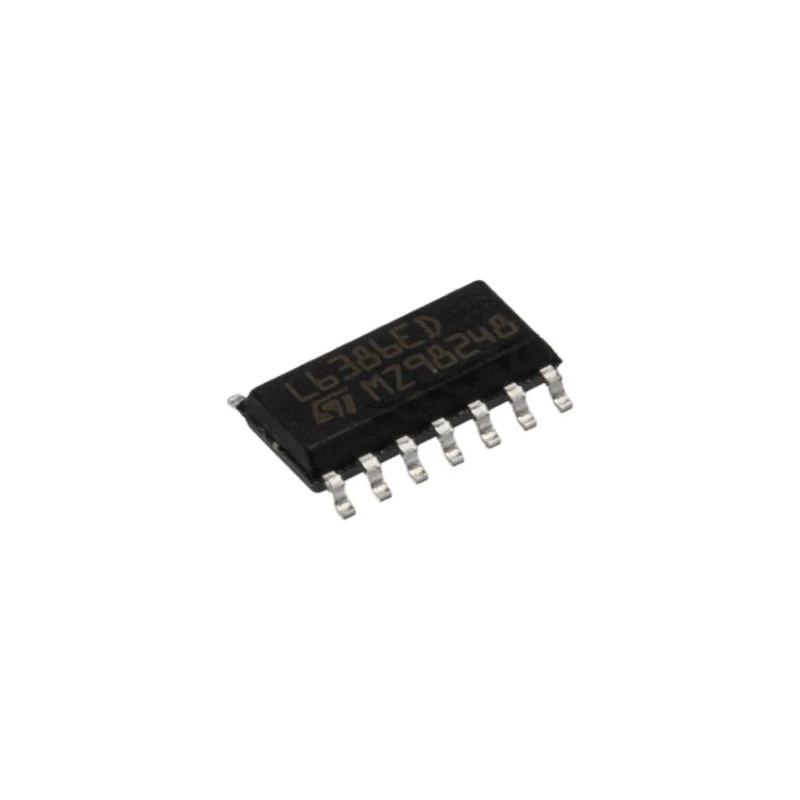

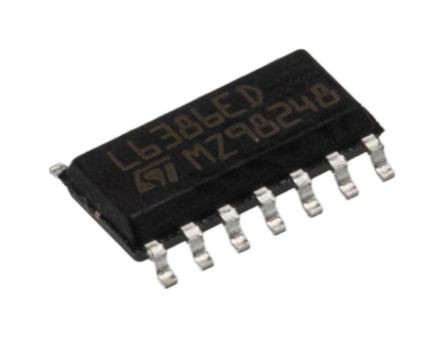

STMicroelectronics MOSFET Gate Driver 2 Outputs, 650 mA, 14-Pin SOIC Package, 17–18 V Supply L6386ED

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics MOSFET Gate Driver 2 Outputs, 650 mA, 14-Pin SOIC Package, 17 - 18 V Supply L6386ED

Name: STMicroelectronics MOSFET Gate Driver 2 Outputs, 650 mA, 14-Pin SOIC Package, 17 - 18 V Supply L6386ED
Brand: STMicroelectronics
SKU: 137816



Category MOSFET Gate Driver Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.65mm
Length	8.75mm
Model	L6386ED
Width	4mm
Mount Type	Surface
Series	L6386E
Output Current	650mA
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-45°C
Number of outputs	2
Rise Time	50ns
Pin Count	14
Maximum Supply Voltage	18V
Minimum Supply Voltage	17V
Number of Drivers	2
Fall Time	30ns
Driver Type	MOSFET

Key Features

This gate driver features 2 outputs specifically designed for MOSFETs with a maximum output current of 650 mA.
It incorporates fast switching with a rise time of 50 nanoseconds and a fall time of 30 nanoseconds.
The device supports a minimum supply voltage of 17 V and can operate up to a maximum of 18 V.
It operates reliably within a wide temperature range from -45°C to 125°C for industrial applications.
The compact surface mount SOIC package measures 8.75 mm length, 4 mm width, and 1.65 mm height.
The product is part of the L6386E series and includes 2 drivers in a single IC.

Product Description

STMicroelectronics L6386ED MOSFET Gate Driver is a high-performance power management IC designed for effective gate driving of MOSFET transistors in various electronic and industrial applications. It combines two drivers capable of delivering continuous output currents of up to 650 mA each, making it ideal for switching and power conversion tasks.

The L6386ED operates within a supply voltage range of 17 to 18 volts and exhibits swift switching timings, featuring a rise time of 50 nanoseconds and a fall time of 30 nanoseconds. Encapsulated in a compact 14-pin SOIC surface mount package, it measures 8.75 mm in length, 4 mm in width, and 1.65 mm in height, providing a space-efficient solution for PCB layouts.

Designed for robust performance, it can function reliably across a wide temperature range from -45°C to 125°C, accommodating harsh industrial environments. The device contains two independent outputs, allowing versatile driving of MOSFET transistors in power management, motor control, and switching regulator circuits.

The L6386ED series by STMicroelectronics does not include specific automotive standards but ensures solid electrical and thermal performance. This gate driver aids in enhancing switching efficiency and reducing power losses in electrical circuits.

This gate driver features 2 outputs specifically designed for MOSFETs with a maximum output current of 650 mA. It incorporates fast switching with a rise time of 50 nanoseconds and a fall time of 30 nanoseconds. The device supports a minimum supply voltage of 17 V and can operate up to a maximum of 18 V.

It operates reliably within a wide temperature range from -45°C to 125°C for industrial applications. The compact surface mount SOIC package measures 8.75 mm length, 4 mm width, and 1.65 mm height. The product is part of the L6386E series and includes 2 drivers in a single IC.

This MOSFET Gate Driver is suitable for a variety of industrial, manufacturing, power management, and electronic design applications where efficient switching is critical. Its surface mount package enables easy integration into automated PCB assembly workflows.

Explore more power management solutions and semiconductor devices on EnvMart for your electronic development and industrial automation needs.
