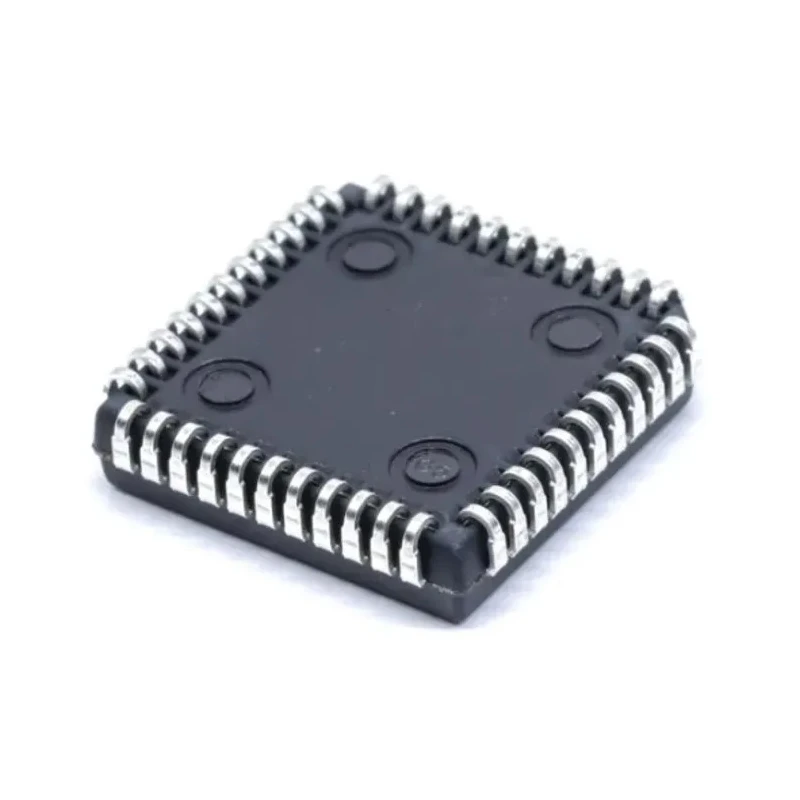

Infineon MOSFET Gate Driver 350 mA 44-Pin 20V PLCC IR2136JTRPBF

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver 350 mA 44-Pin 20V PLCC IR2136JTRPBF

Name: Infineon MOSFET Gate Driver 350 mA 44-Pin 20V PLCC IR2136JTRPBF
Brand: Infineon
SKU: 423090
Price: 20.22 USD
Availability: InStock



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	4.57mm
Length	16mm
Model	IR2136JTRPBF
Width	16mm
Mount Type	Surface
Series	IR213
Output Current	350mA
Maximum Operating Temperature	125°C
Package Type	PLCC
Minimum Operating Temperature	-40°C
Number of outputs	6
Rise Time	125ns
Pin Count	44
Minimum Supply Voltage	20V
Fall Time	75ns
Driver Type	MOSFET

Key Features

The device supports three independent high and low side referenced output channels for 3-phase applications.
Operates at a minimum and maximum supply voltage of 20V, ideal for robust power management.
Features a fast rise time of 125ns and fall time of 75ns for efficient switching performance.
Includes over-current shutdown functionality that turns off all six drivers to protect circuits.
Compatible with CMOS or LSTTL logic inputs down to 3.3 V logic levels.
Surface mount package with dimensions 16mm length, 16mm width, and 4.57mm height for compact board design.
Functional over a wide operating temperature range from -40°C to 125°C, suitable for industrial environments.
Employs Infineon proprietary HVIC technology for ruggedized monolithic construction.

Product Description

Infineon IR2136JTRPBF MOSFET Gate Driver is a high voltage, high speed power driver designed for MOSFET and IGBT power switching with 350 mA output current capability and a 44-pin PLCC package format. It incorporates three independent high and low side referenced output channels tailored for 3-phase power applications, making it well-suited for industrial, automotive, and power management systems.

The device employs proprietary HVIC technology, providing ruggedized monolithic construction which enhances durability in harsh operating conditions. It supports floating channel design for bootstrap operation and is fully operational up to +600V with tolerance to negative transient voltages and immunity to dV/dt effects.

The IR2136JTRPBF features matched propagation delay across all channels and includes cross-conduction prevention logic to improve safety and reliability. The over-current shutdown feature immediately disables all six drivers during fault conditions, safeguarding connected power stages.

Logic inputs are compatible with both CMOS and LSTTL logic outputs, capable of receiving signals as low as 3.3 V. The package is a PLCC surface mount type with physical dimensions of 16 mm length, 16 mm width, and 4.57 mm height, optimizing footprint on printed circuit boards.

Operational in a temperature range from -40°C to 125°C, it is ideal for applications demanding high reliability under variable thermal conditions. This product finds extensive use in industrial power drives, motor control, and power inverters for automotive and manufacturing equipment.

High voltage and high speed driver suitable for 3-phase MOSFET/IGBT applications. 350 mA output current with 44-pin PLCC package. Supports bootstrap operation with floating channel design. Includes over-current shutdown and cross-conduction prevention.

Compatible with low voltage CMOS and LSTTL logic inputs. Surface mount with compact dimensions for efficient PCB layout. Wide operating temperature range from -40°C to 125°C.

This MOSFET Gate Driver provides reliable power management capabilities for industry, manufacturing, and automotive sectors seeking efficient and robust power electronic solutions. Explore more high-performance power management ICs and components available through EnvMart for your design and application needs.
