Ultrasonic Liquid Flow Meter
Specifications
| Power Consumption | Max 6 W @ 24 VDC |
|---|---|
| Measuring range | up to pipe line size of 6000mm |
| Applications | Solids| Liquids and Slurries |
| Process Pressure | -0.2 20 bar |
| Supply Voltage (V) | 110 VAC/ 230 VAC |
| Signal Output | 4-wire with 4 20 mA |
| Process Temperatures | -40to +160C |
Key Features
- Bulk Quantities Available
Product Description

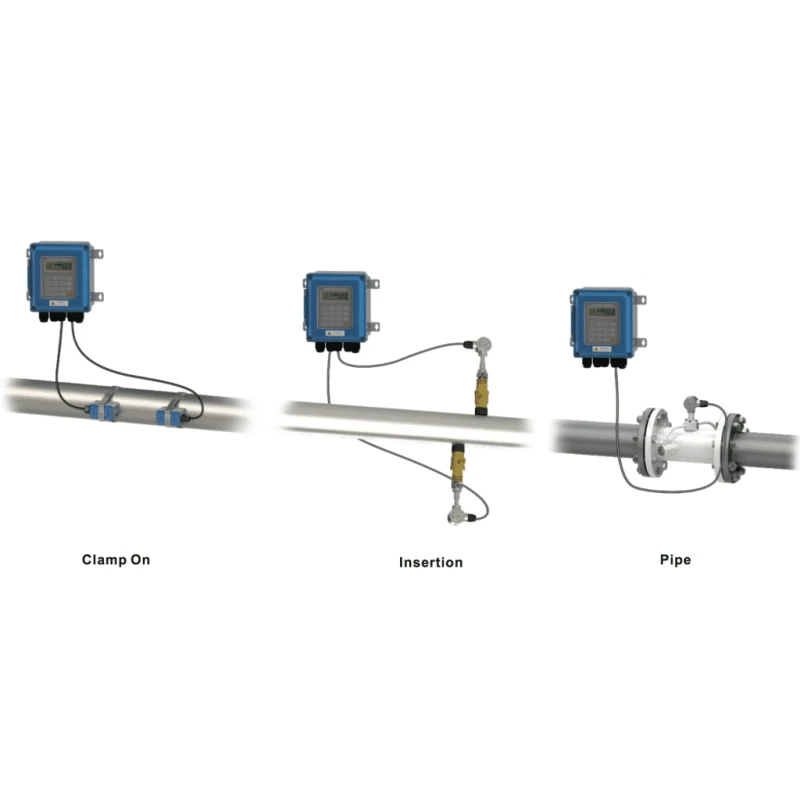

The Transit Time Flow Meter of the TTFM100 NEW GENERATION (NG) series measures flow rate by calculating the spread time of an ultrasonic wave in a liquid, going upstream and downstream into a pipe. This flow meter is mostly used to measure the flow rate of homogeneous fluids, also with a quite high percentage of suspended solids. The measuring system is composed of a couple of ultrasonic transducers acoustically coupled to the external pipes wall (it is also possible to use transducers in direct contact with fluid to be measured called wetted sensors) and a HOST unit elaborating the signals that are sent and received from the transducers. The HOST unit has a DSP microprocessor and gives signals for interfacing with the process or the control systems.
Frequently Asked Questions
The Ultrasonic Liquid Flow Meter can measure flow rates in pipes up to 6000mm in size, making it suitable for a variety of applications.
This flow meter is designed to measure homogeneous fluids, including liquids, solids, and slurries, even those with a high percentage of suspended solids.
No, the Ultrasonic Liquid Flow Meter features a non-intrusive installation method, which simplifies the setup and minimizes downtime.
The flow meter has a maximum power consumption of 6 W at 24 VDC, making it energy efficient for industrial applications.
The Ultrasonic Liquid Flow Meter operates effectively in temperatures ranging from -40°C to +160°C, suitable for various environments.
This flow meter can handle process pressures from -0.2 to 20 bar, accommodating a wide range of industrial conditions.
The flow meter features a 4-wire signal output with 4-20 mA, allowing for easy integration with control systems and monitoring equipment.
Yes, the Ultrasonic Liquid Flow Meter is available in bulk quantities, making it ideal for large-scale industrial applications.
The flow meter can operate on either 110 VAC or 230 VAC supply voltage, providing flexibility for different setups.
For more information or to make a purchase, please contact our sales team or visit our website for further assistance.
