Burkert 8045 Series Digital Flow Meter G 2 In, Polyphthalamide Body, 60°C Max Operating Temp, Model 426506

Free Delivery in India | Lowest Global Shipping Charges

Burkert 8045 Series Digital Flow Meter G 2 In, Polyphthalamide Body, 60°C Max Operating Temp, Model 426506

Name: Burkert 8045 Series Digital Flow Meter G 2 In, Polyphthalamide Body, 60°C Max Operating Temp, Model 426506
Brand: Bürkert
SKU: 326755
Price: 2556.27 USD
Availability: InStock



Category Flow Meter Brand Bürkert Condition New

Specifications

Country of Origin	France
Brand	Burkert
Body Material	Polyphthalamide, Polycarbonate
Model	426506
Outputs	4 to 20mA, calibrated pulse and two relays
Series	8045
Maximum Operating Temperature	60°C
Wetted Materials	316 Stainless Steel, Fluorelastomer, Polyvinylidene fluoride, Polyetheretherketone, Alloy C22
Connection Thread Size	G 2 In

Key Features

The meter features a solid-state flow sensor with no moving parts.
Designed for liquid applications with conductivity above 20 µS.
Equipped with multiple outputs including 4 to 20mA, calibrated pulse and two relays.
Supports multi-language, menu-driven operation for ease of use.
Includes teach-in and automatic calibration functions for specific applications.
Can operate up to a maximum temperature of 60°C.
Wetted materials include stainless steel 316, fluor elastomer, PVDF, PEEK, and Alloy C22 for durability.
Compliant with standards like EN 60068-2-6 and Pressure Directive 97/23/CE.

Product Description

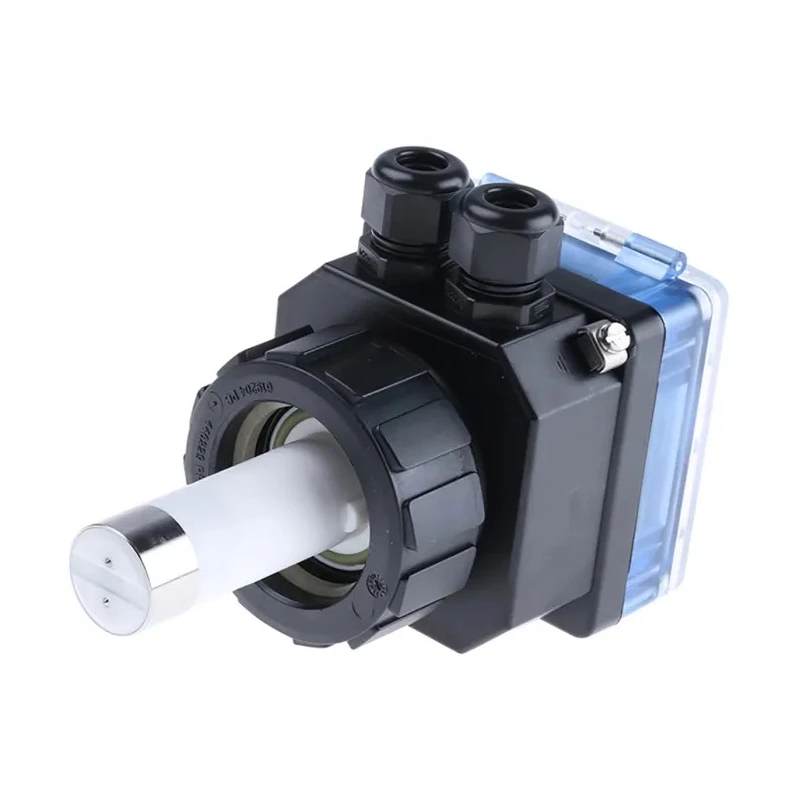

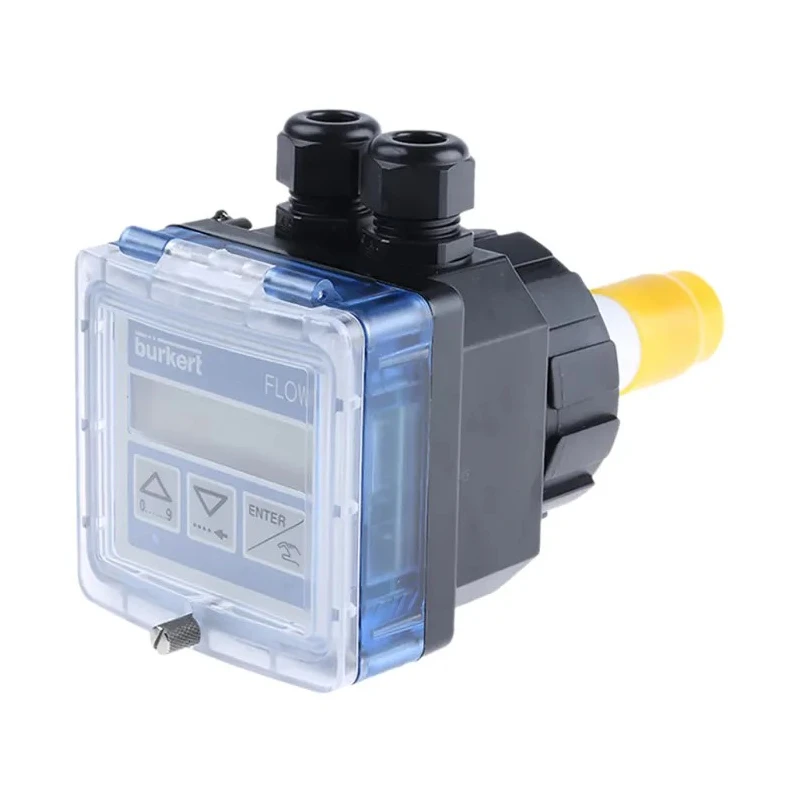

Burkert 426506 Digital Flow Meter G 2 In features a digital flow transmitter with a solid-state sensor, featuring no moving parts, enabling highly reliable and precise flow measurement. It has a body constructed from polyphthalamide and polycarbonate, ensuring chemical resistance and mechanical strength.

The unit operates at a maximum temperature of 60°C and includes wetted materials such as 316 stainless steel, fluor elastomer, polyvinylidene fluoride, polyetheretherketone, and Alloy C22, making it suitable for a wide range of liquid applications, particularly those with conductivity greater than 20 µS.

The 8045 series offers a multi-language, menu-driven operation interface with a simulation option providing all output signals essential for commissioning. Automatic calibration and teach-in features allow customization for specific application needs.

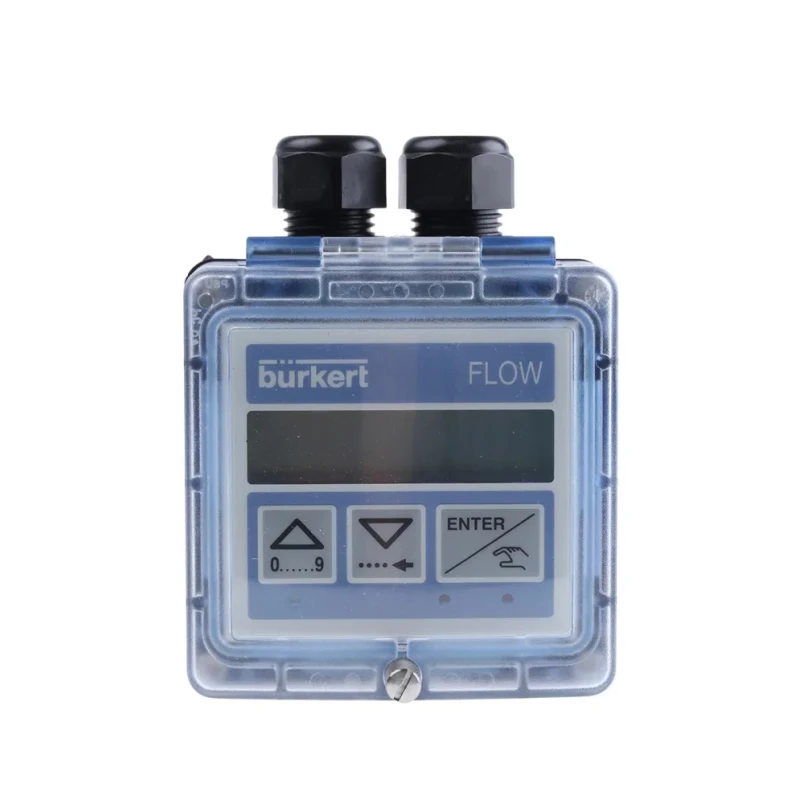

Outputs include 4 to 20mA signals, a calibrated pulse for precise volume measurement, and two relays for control. The display and function keys are protected by a cover to prevent accidental changes.

This flow meter is ideal for industrial environments such as wastewater management, surface treatments, laundries, chemical industry (non-hazardous applications), food industry, swimming pools, and handling some acidic and alkaline solutions. Stainless steel fittings add to its ruggedness and reliability.

The meter has no moving parts, enhancing reliability and reducing maintenance. Automatic calibration ensures accurate measurements specific to the application. Multiple output options support integration with diverse control systems.

Durable wetted materials allow corrosion resistance in varied environments. Manufactured to comply with multiple European standards ensuring quality and safety. Made in France, the Burkert 8045 Series is a trusted choice for precise and reliable flow measurement in numerous industrial and commercial applications.

Explore more advanced measuring instruments and Flow Meters from Burkert and related brands at EnvMart for your automation and control requirements.
