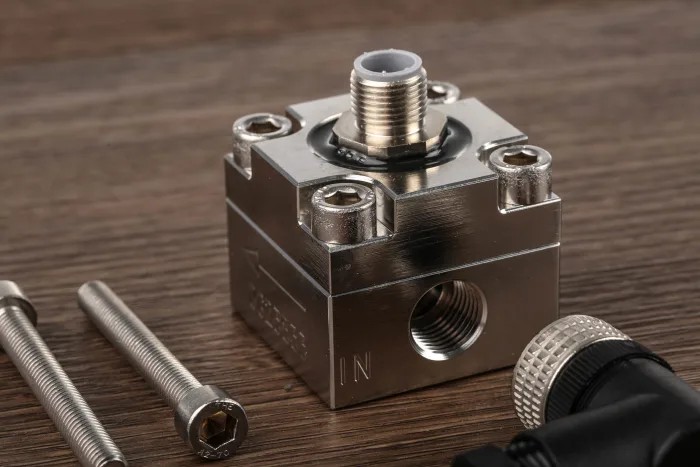

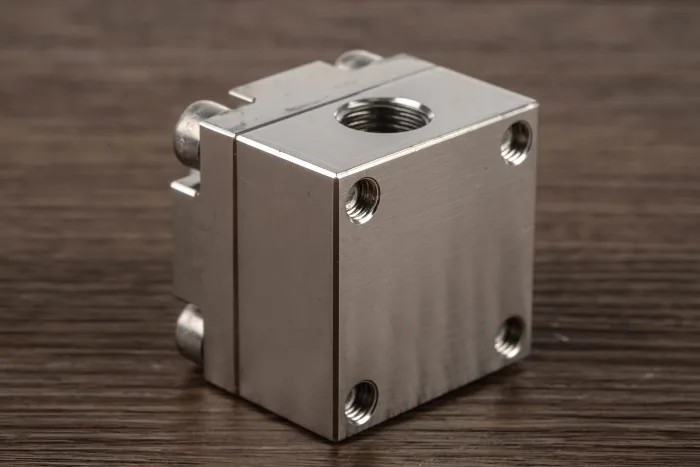

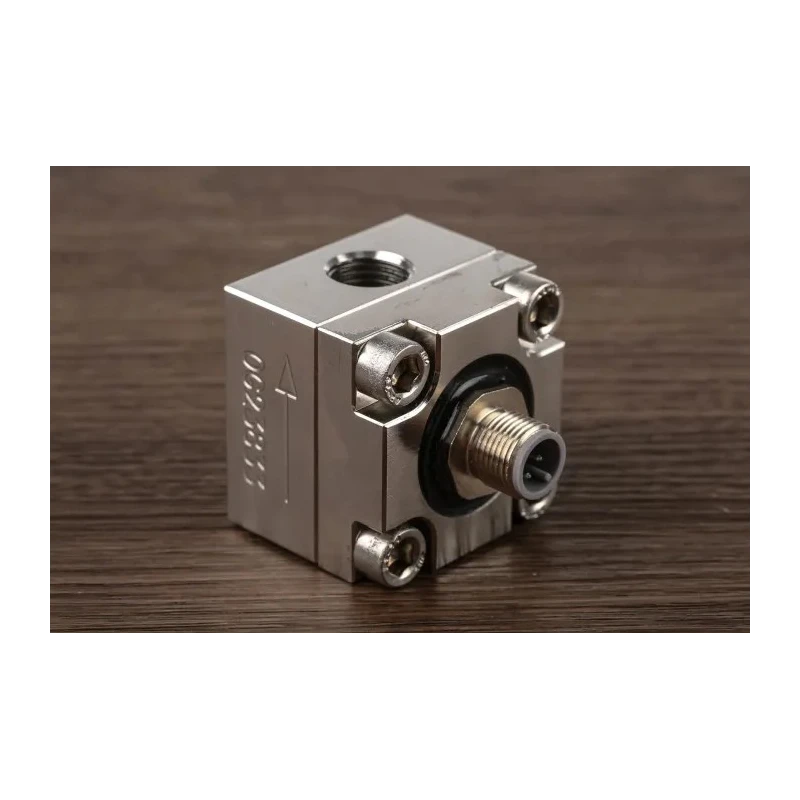

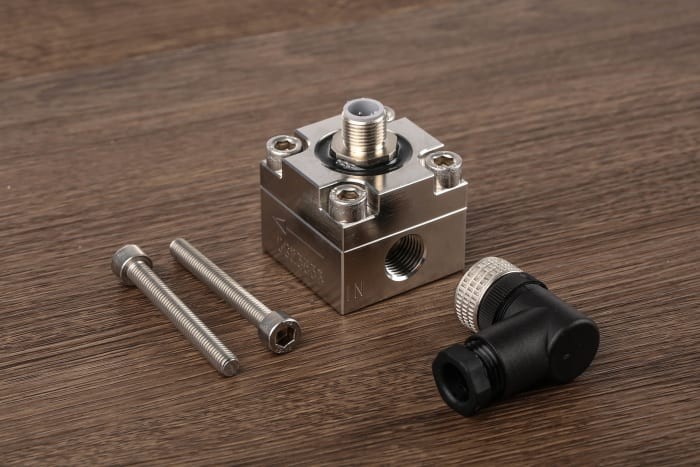

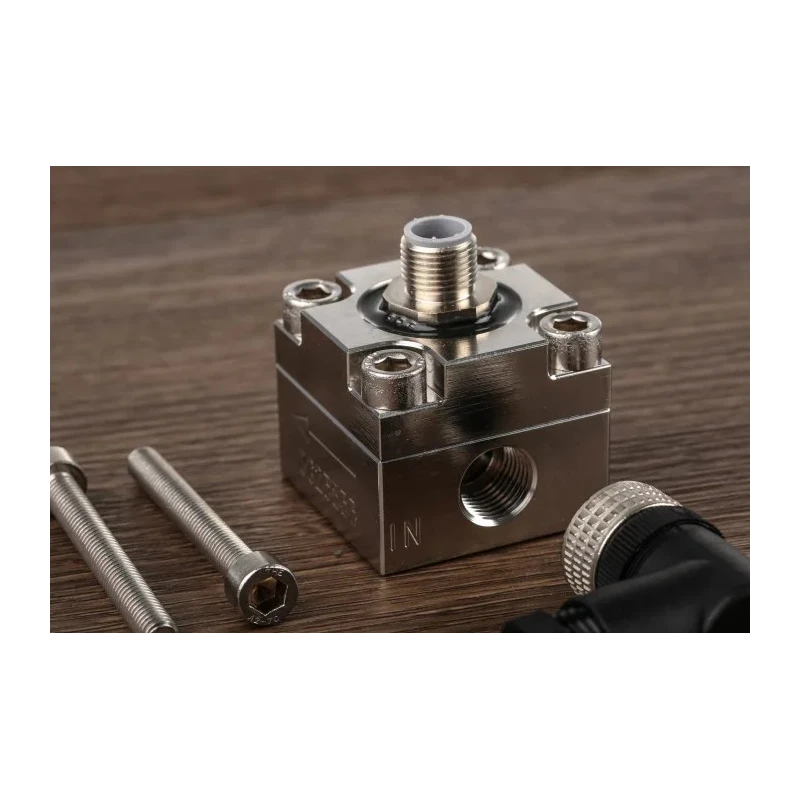

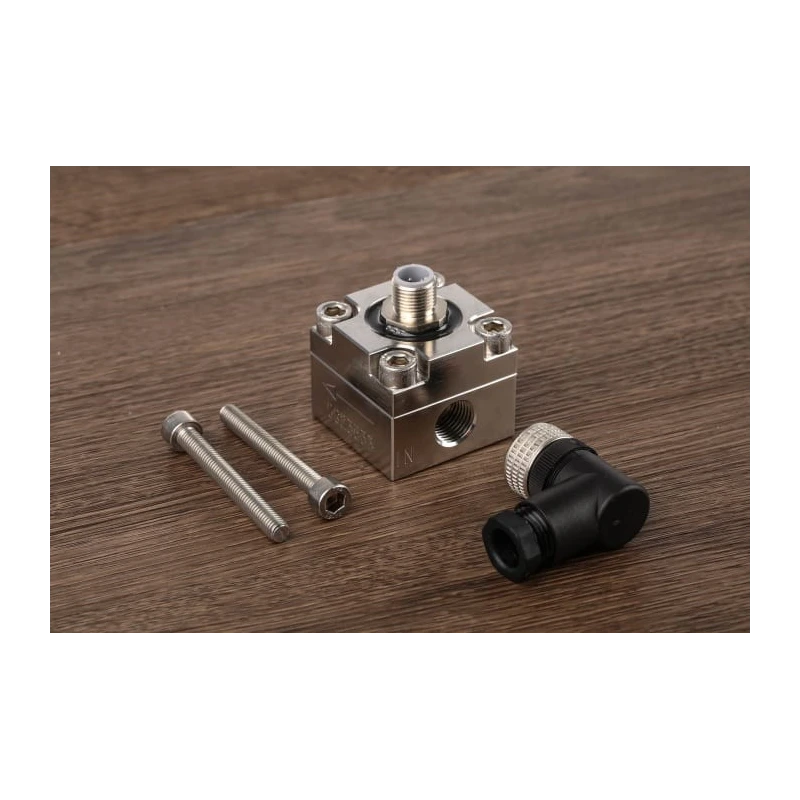

RS PRO Oval Gear Flow Meter 0.01L/min to 4L/min, 1/4 in BSP Connection, Stainless Steel Body, Viton O-ring, IP67 447-4449

RS PRO 447-4449 Oval Gear Flow Meter is designed for precise measurement of viscous fluids such as oils and fuels, offering a flow range from 0.01L/min to 4L/min. It incorporates a robust stainless steel housing and carbon-filled Peek gears to ensure durability and chemical resistance in demanding industrial environments.

The flow meter features a 1/4 in BSP connection thread and an IP67 rating, making it suitable for wet conditions including submersion up to one meter for 30 minutes. The Viton O-ring enhances sealing performance under various pressure and temperature scenarios, supporting a maximum operating temperature of 80°C and pressure up to 50 bar.

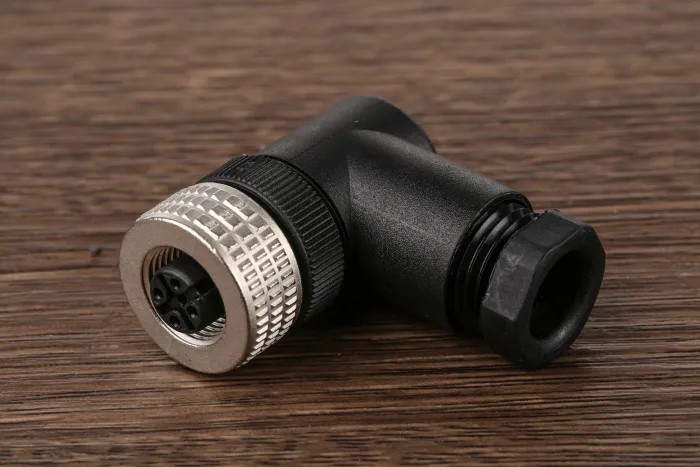

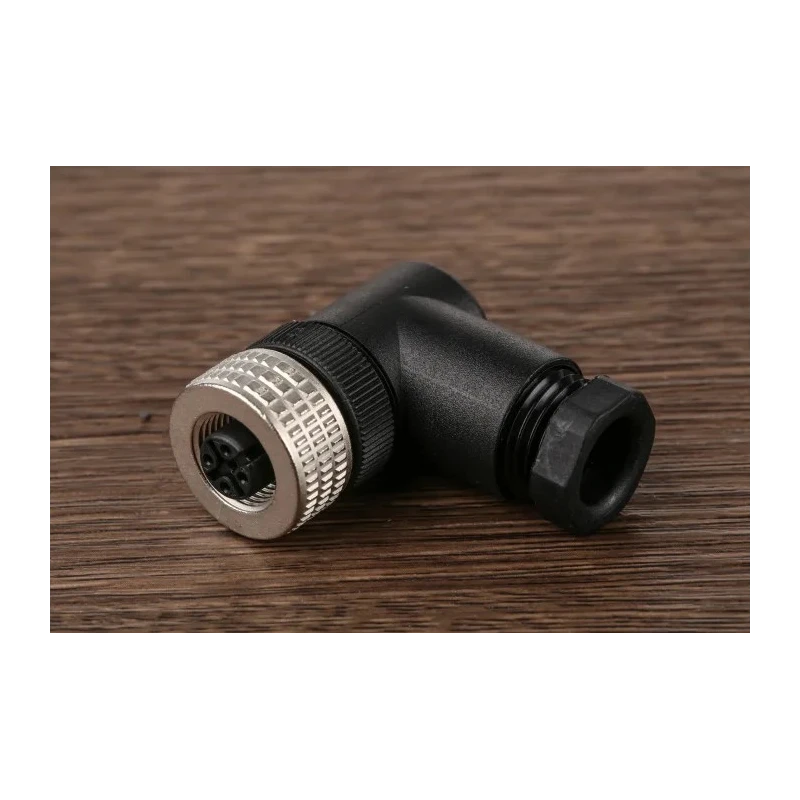

This device operates at a supply voltage between 5 and 24 V dc, delivered via an M12 instrument socket termination, enabling integration with instrumentation systems. Oval gears within the meter are magnetically coupled to a Hall-effect sensor, providing electrical pulses corresponding to fluid volume with high accuracy: ±0.75% for 30 cSt oil and ±1% for water-like fluids.

Applications include automotive fuel measurement, hydraulic system monitoring, and food industry fluid tracking where reliable and precise flow measurement is critical. The compact form factor and corrosion-resistant construction make the RS PRO 447-4449 an ideal choice for industrial, laboratory, and manufacturing environments.

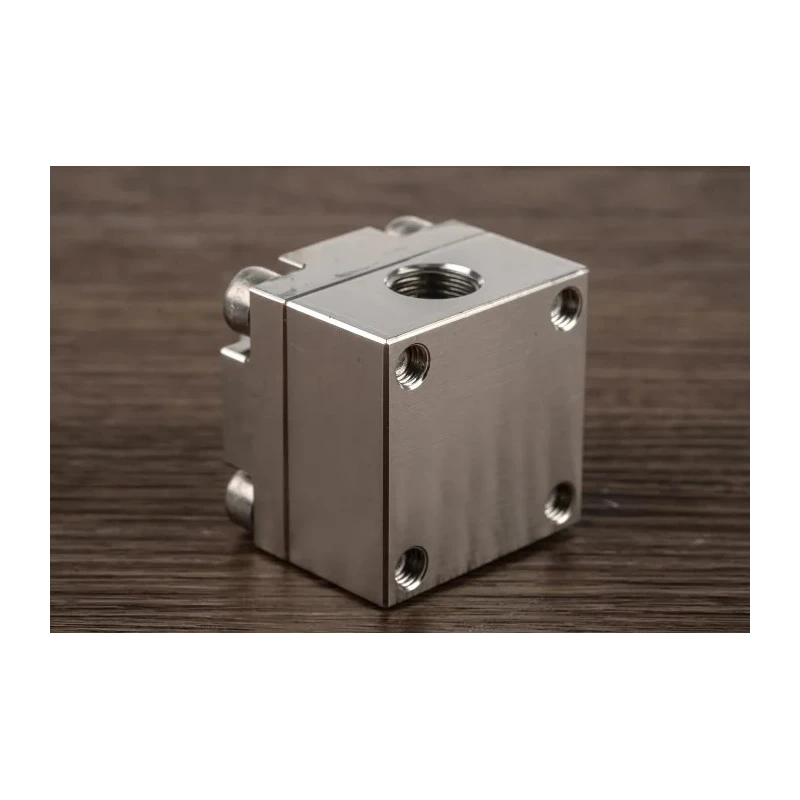

Measures viscous fluids such as oils and fuels with low pressure loss and excellent chemical resistance. Features a stainless steel body with Viton O-ring for durability and corrosion resistance. IP67 rated for water resistance when submerged up to 1 meter for 30 minutes.

Provides high accuracy within 0.75% for oil and 1% for water-like substances. Operates with a supply voltage range of 5 to 24 V dc and terminates in an M12 instrument socket. Handles a maximum operating temperature of 80°C and pressure up to 50 bar.

Compact design with a 1/4 inch BSP connection thread suitable for various industrial applications. Contains oval gears driven by fluid flow with a Hall-effect sensor outputting approximately 1100 pulses per liter.
