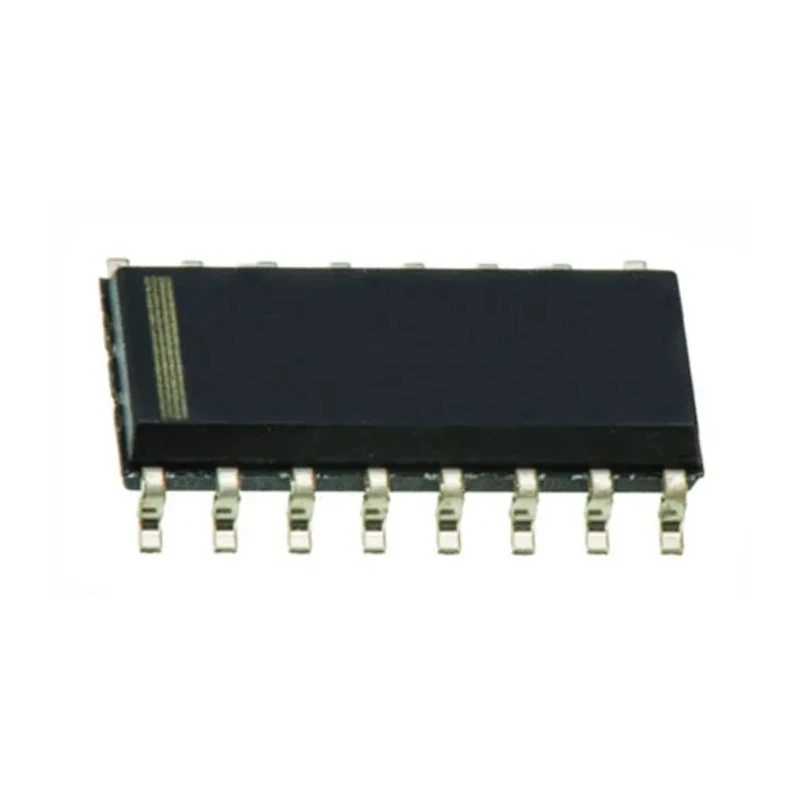

Texas Instruments MOSFET Gate Driver 1.5 A 16-Pin SOIC 40V UC3706DW

Texas Instruments UC3706DW is a MOSFET gate driver designed for industrial and power management applications requiring reliable high current switching. It provides dual MOSFET driver outputs capable of delivering 1.5 amperes of current each, allowing effective gate control of MOSFET or IGBT power devices. Packaged in a 16-pin SOIC surface mount form factor, it supports automated PCB assembly with a compact footprint measuring 10.28mm by 7.52mm and 2.35mm height.

The device operates reliably over a temperature range from 0°C to 70°C and supports supply voltages reaching 40 volts, ensuring stable performance in various industrial environments. Its fast switching features include a rise time of 110 nanoseconds and a fall time of 80 nanoseconds, optimizing efficiency for power management circuits.

This gate driver is designed specifically for power MOSFET and IGBT devices, delivering two driver outputs within a single IC package. The surface mount technology makes it suitable for modern electronics manufacturing processes requiring precision and reliability.

Applications for the Texas Instruments UC3706DW include power management systems, motor control, industrial automation, and power conversion circuits. Its robust design supports use in commercial, industrial, and laboratory instrumentation where precise switching control is essential.

Set contents include the UC3706DW MOSFET Gate Driver IC in a 16-pin SOIC package. It is a new product originating from India and meets the high standards for semiconductor components used in power electronics.

Delivers continuous output current of 1.5 amperes for effective MOSFET switching. Features dual output drivers to control two MOSFET devices simultaneously. Comes in a compact 16-pin SOIC surface mount package compatible with automated PCB assembly.

Operates within a temperature range of 0°C to 70°C suitable for standard industrial applications. Fast switching speeds with rise time of 110ns and fall time of 80ns for high efficiency power management. Designed for surface mount technology with dimensions 10.28mm length, 7.52mm width, and 2.35mm height.

Operates at supply voltages up to 40 volts with a minimum supply voltage of 40 volts for stability. Meets MOSFET & IGBT driver requirements providing reliable gate drive performance. Explore the complete range of power management ICs and MOSFET Gate Drivers at EnvMart for industrial, laboratory, and electronic manufacturing needs.
