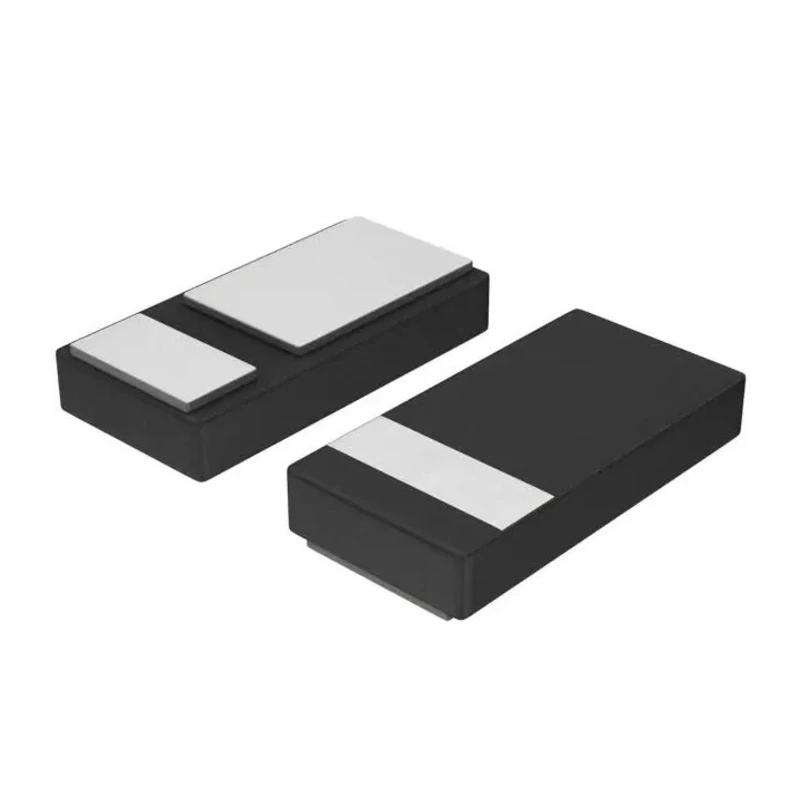

onsemi 30 V 500 mA Schottky Barrier Diode Surface Mount DSN0402 Package NSR05F30NXT5G

onsemi NSR05F30NXT5G is a Schottky barrier diode designed to deliver excellent performance with a low forward voltage drop of 400 mV and low leakage current. Packaged in a compact DSN0402 surface-mount package, this diode is optimized for applications requiring efficient power management and space saving.

The diode supports a maximum continuous forward current of 500 mA and can withstand a peak reverse repetitive voltage of 30 V. Its operating temperature range from -40°C to 150°C allows for reliable function in various industrial, consumer electronics, and portable devices.

The peak non-repetitive forward surge current rating of 10 A ensures the diode can endure transient conditions. The small footprint with dimensions 1.4 mm (length) x 0.6 mm (width) x 0.26 mm (height) enables high-density PCB layouts crucial in modern electronics manufacturing.

Being Pb-Free and RoHS compliant, the NSR05F30NXT5G supports environmental safety standards and regulations. This diode finds ideal use in reverse voltage and current protection circuits, enhancing efficiency and system reliability.

The diode exhibits a single diode configuration with 2 pins facilitating straightforward circuit integration. Its low forward voltage drop contributes to better power efficiency in DC applications. Designed for surface mount technology, it suits automatic assembly processes.

Its robust temperature tolerance supports applications in demanding environmental conditions.

This product is perfect for use in industrial electronics, consumer devices, telecommunication equipment, and power management systems requiring reliable Schottky diode performance. Browse the Semiconductor category at EnvMart for related Schottky diodes and rectifiers to find matching components for your projects.
