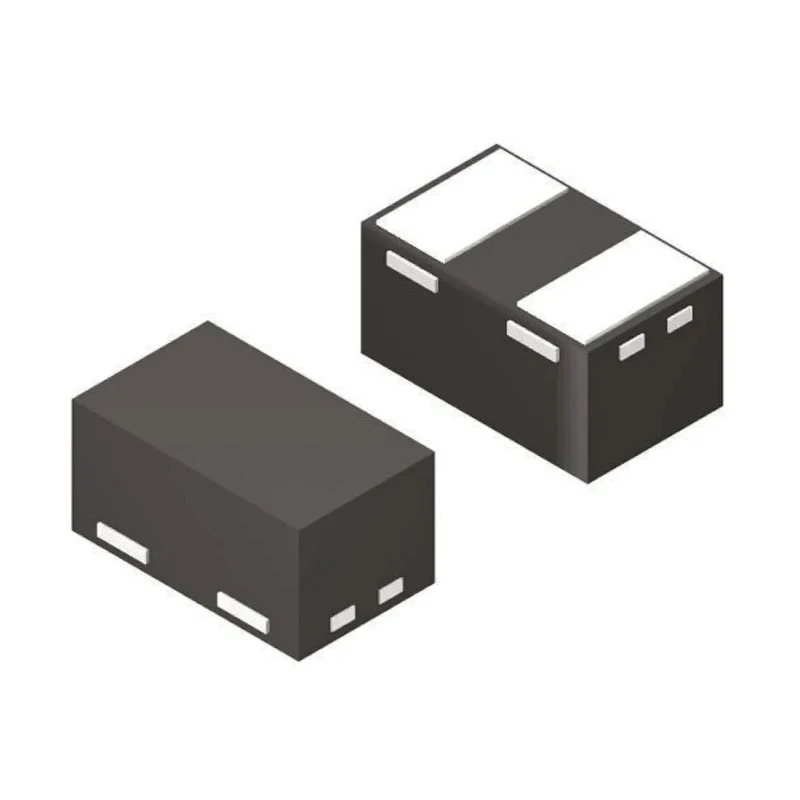

Nexperia 40 V 200 mA Schottky Diode, Surface Mount 2-Pin SOD-882 Package PMEG4002EL,315

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 200 mA Schottky Diode, Surface Mount 2-Pin SOD-882 Package PMEG4002EL,315

Name: Nexperia 40 V 200 mA Schottky Diode, Surface Mount 2-Pin SOD-882 Package PMEG4002EL,315
Brand: Nexperia
SKU: 162533
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.47mm
Length	1.02mm
Model	PMEG4002EL,315
Width	0.62mm
Mount Type	Surface
Maximum Operating Temperature	150°C

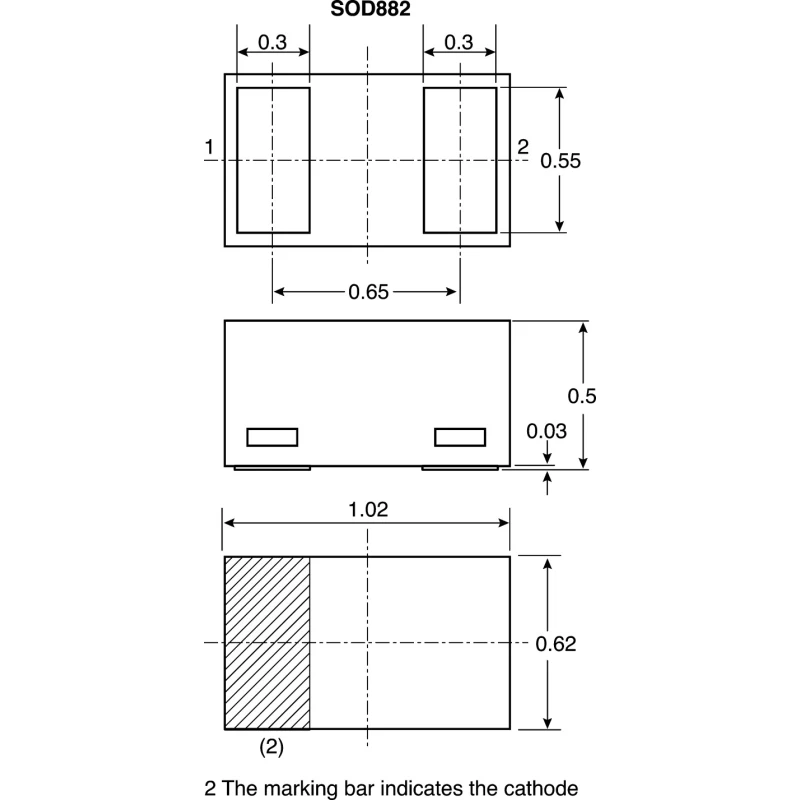

Package Type	SOD-882
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	3A
Maximum Forward Voltage Vf	600mV

Key Features

Supports a maximum continuous forward current of 200 mA allowing efficient low-current rectification applications.
Peak reverse repetitive voltage rating of 40 V ensures durability under varying voltage conditions.
Features a single diode configuration in a small SOD-882 package ideal for space-constrained designs.
Has a low forward voltage drop of 600 mV to minimize power loss during operation.
Compliant with operating temperature range from -65°C to 150°C enabling use in harsh environments.
Exhibits low leakage current with a peak reverse current of 10 μA, improving circuit reliability.
Designed for surface mounting, facilitating automated assembly in mass production.
Offers high surge current capability with peak non-repetitive forward surge current rated at 3 A.

Product Description

Nexperia PMEG4002EL,315 is a Schottky diode designed for efficient low current rectification with high reliability in electronic circuits. Packaged in a compact 2-pin SOD-882 surface mount form factor, it is perfect for applications demanding small size and low power loss.

This diode supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 40 V, allowing it to tolerate common voltage stresses in consumer, industrial, and automotive electronic circuits. The low maximum forward voltage of 600 mV helps reduce conduction losses, improving overall energy efficiency.

Operating over a wide temperature range from -65°C up to 150°C, this component is suitable for use in environments with fluctuating or harsh temperatures, including industrial and automotive electronic assemblies. It also features low reverse leakage current of 10 μA, securing high stability and reduced power drain.

Its peak non-repetitive forward surge current rating of 3 A ensures the diode can handle transient surge currents without damage. The single diode configuration in the SOD-882 package optimizes board space usage and supports automated surface mount technology (SMT) assembly lines.

Applications for this diode span power supply rectification, low voltage DC/DC conversions, freewheeling diodes in DC motors, and general electronic protection circuitry. Its ultra-small form factor is advantageous for compact and portable electronic devices.

Efficient Schottky barrier diode with low forward voltage and fast switching. Compact surface mount SOD-882 package with 2 pins. Rated for 200 mA continuous forward current and 40 V peak reverse voltage. Wide operating temperature range from -65°C to 150°C.

Low reverse leakage current for improved performance. High surge current capability of 3 A. Ideal for industrial, automotive, and consumer electronic applications. Explore more electronic components including diodes and semiconductors on EnvMart to find the best fit for your design and manufacturing needs.
