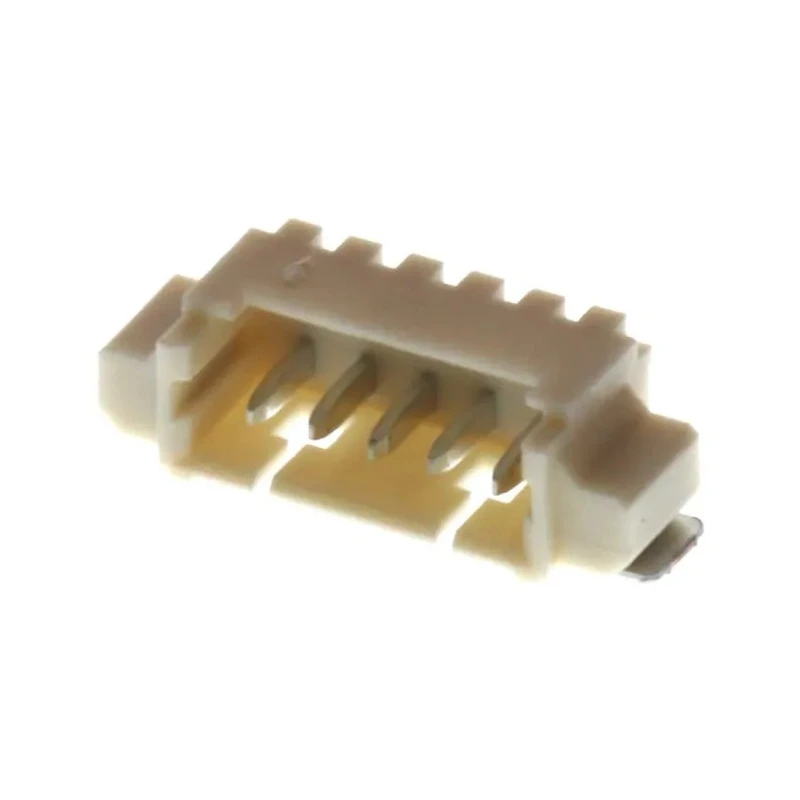

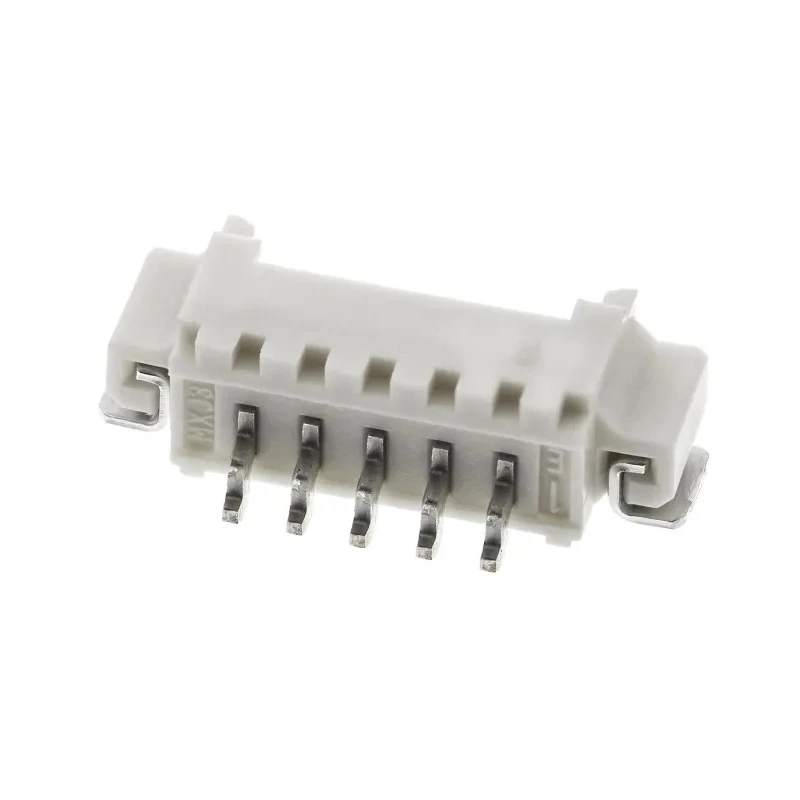

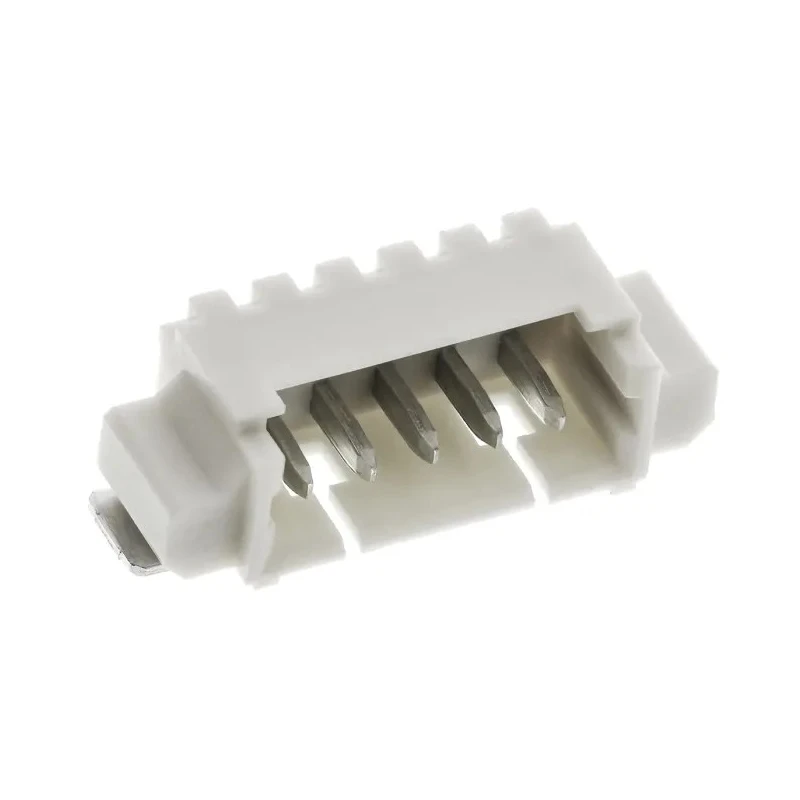

Molex PicoBlade Series Right Angle Surface PCB Header 5 Contacts 1.25mm Pitch 1 Row Shrouded 53261-0571
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact 1.25 mm pitch saves up to 45% PCB space compared to 2 mm alternatives.
- Shrouded design provides corrosion-resistant protection for reliable connections.
- Rated for 1A current and 125V voltage for versatile electronic usage.
- Surface mount design with solder termination for secure PCB attachment.
- Wide operating temperature range from -40°C to 105°C for harsh environments.
- Made with thermoplastic housing and phosphor bronze contacts plated with tin.
- Includes friction lock feature for secure mating and accident prevention.
- Single row with 5 male contacts in a right-angle orientation.
Product Description
Molex 53261-0571 PicoBlade Series Right Angle Surface PCB Header is a high-quality wire-to-board connector designed for compact electronic assemblies requiring space optimization and secure connections. Featuring a 1.25 mm pitch, this header saves significant PCB real estate compared to 2 mm pitch variants, ideal for modern miniaturized circuits.
The 5-contact, single-row header is shrouded with durable thermoplastic housing to provide corrosion resistance and physical protection. Its phosphor bronze contacts plated with tin ensure excellent conductivity and reliability, making it suitable for industrial, automotive, and medical electronic devices.
Capable of handling 1 ampere current and rated for 125 volts, this surface-mount header uses solder termination for firm and enduring attachment on printed circuit boards. It operates reliably across a wide temperature range from -40°C up to 105°C, supporting performance in challenging environmental conditions.
The connector’s right-angle orientation facilitates design flexibility for PCB layouts, while the integrated friction lock mechanism prevents accidental mating, enhancing operational safety and durability.
This Molex PicoBlade Series header is an excellent choice for automotive alarm systems, industrial process control units, medical monitors, and other compact electronic applications demanding a combination of performance, durability, and space efficiency.
Compact design with 1.25 mm pitch. Shrouded thermoplastic housing for protection. Phosphor bronze contacts plated with tin for conductivity. Rated for 1A current and 125V voltage. Surface mount solder termination. Wide operating temperature range from -40°C to 105°C.
Right angle, single row with 5 male contacts. Friction lock ensures secure mating and safety. Explore more PCB Headers and related components in the Electronics & Electricals category on EnvMart for your industrial, manufacturing, or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 1.25 mm, which helps save up to 45% PCB space compared to 2 mm alternatives.
This model is rated for a maximum current of 1 ampere.
The voltage rating for this header is 125 volts.
It uses solder termination for secure attachment to printed circuit boards.
The housing is made of thermoplastic, and the contacts are made of phosphor bronze plated with tin.
This unit operates reliably across a wide temperature range from -40°C to 105°C.
This PCB header has 5 male contacts arranged in a single row.
The orientation of this connector is right angle, which facilitates design flexibility in PCB layouts.
Yes, it includes a friction lock feature to ensure secure mating and prevent accidental disconnection.
The country of origin for this product is India.
This header is suitable for applications in automotive alarm systems, industrial process control units, and medical monitors, among others.
The shrouded design provides corrosion-resistant protection, ensuring reliable connections in various environments.
