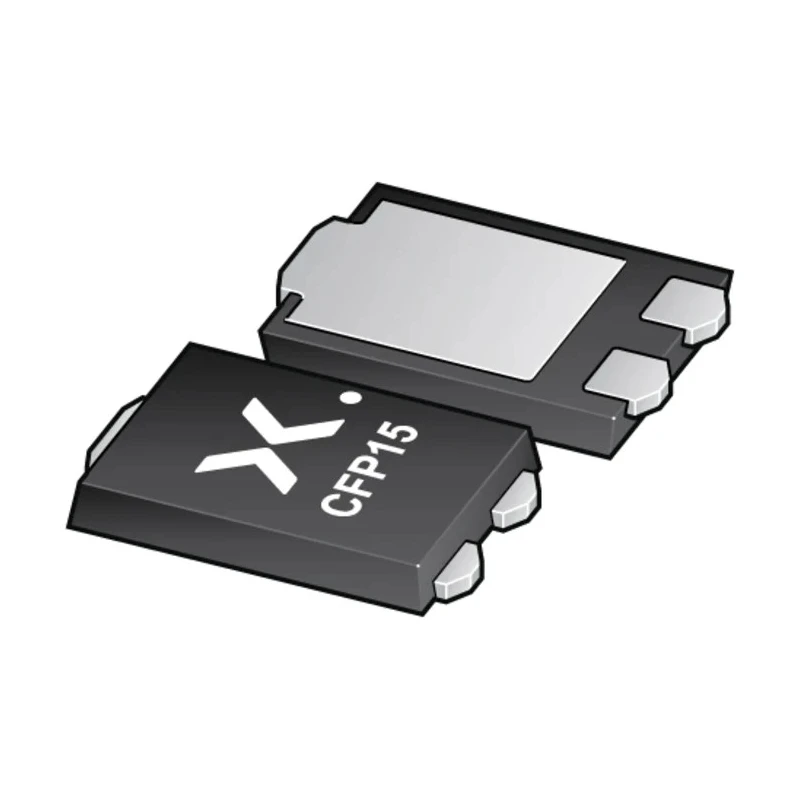

Nexperia 45 V 14 A Schottky Diode Surface Mount 3-Pin CFP15 PMEG045V100EPDAZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.78mm |
| Length | 5.8mm |
| Model | PMEG045V100EPDAZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Series | PMEG045V100EPD |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 14A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 490mV |
| Peak Reverse Recovery Time trr | 37ns |
| Average forward current | IF(AV) ≤ 10 A |
| Reverse voltage | VR ≤ 45 V |
Key Features
- Offers maximum continuous forward current of 14 A for demanding power applications.
- Maintains a peak reverse repetitive voltage of 45 V ensuring reliable performance.
- Features an extremely low forward voltage of 490 mV to maximize efficiency.
- Comes in compact CFP15 surface mount package with a height of 0.78 mm and width of 4.3 mm.
- Operates reliably in a wide temperature range from -55°C to 175°C.
- Includes peak non-repetitive forward surge current capability of 210 A for transient conditions.
- Complies with automotive AEC-Q101 standard indicating robustness for automotive electronics.
- Built using advanced clip-bonding technology for high power capability and heat dissipation.
Product Description
Nexperia PMEG045V100EPDAZ is a low forward voltage drop Schottky diode designed for medium power applications requiring efficient rectification and switching. This diode is housed in a compact 3-pin CFP15 surface-mount package with dimensions of 5.8 mm length, 4.3 mm width, and a thin height of 0.78 mm, making it suitable for space-constrained PCB layouts.
Engineered for durability and high performance, it supports a maximum continuous forward current of 14 A and a peak reverse repetitive voltage up to 45 V. The device features a very low maximum forward voltage of 490 mV and a reverse recovery time as low as 37 nanoseconds, contributing to reduced power losses and improved conversion efficiency in power electronics systems.
Its temperature operating range spans from -55°C to 175°C, allowing reliable use in diverse industrial, automotive, and commercial environments. The diode’s rugged design includes an integrated guard ring for stress protection and utilizes clip-bonding technology to enhance heat dissipation, enabling it to handle transient peak surge currents up to 210 A.
This Schottky diode complies with the automotive industry standard AEC-Q101 and is RoHS certified, ensuring it meets stringent quality and environmental criteria. It is well suited for use in power supply circuits, battery charging systems, automotive electronics, industrial equipment, and other applications requiring efficient rectification with minimal voltage drop.
Maximum continuous forward current of 14 A city high power throughput capability. Peak reverse repetitive voltage rating of 45 V for robust voltage handling. Extremely low forward voltage of 490 mV for energy efficient operation.
Compact CFP15 3-pin surface mount package ideal for space-saving designs. Wide temperature range from -55°C to 175°C ensures versatility in environment conditions. Peak forward surge current of 210 A supports transient power demands.
AEC-Q101 automotive qualification confirms reliability for vehicle electronics. Clip-bonding technology and integrated guard ring improve thermal and electrical robustness. RoHS compliant supporting environmentally responsible manufacturing requirements.
This diode type belongs to the MEGA series (Maximum Efficiency General Application) of Schottky diodes by Nexperia, which are designed to optimize battery life and system efficiency. Its planar Schottky barrier and stress protection features make it a reliable component for industrial automation, power management, and automotive electronic applications.
Explore more semiconductor components and Schottky diodes at EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
