| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DMP2120U-7 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | DMP |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 3.8A |
| Maximum Drain Source Voltage Vds | 20V |
| Maximum Drain Source Resistance Rds | 150mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 1.3W |
| Typical Gate Charge Qg @ Vgs | 6.3nC |
| Maximum Gate Source Voltage Vgs | 8V |
| Forward Voltage Vf | -1.1V |

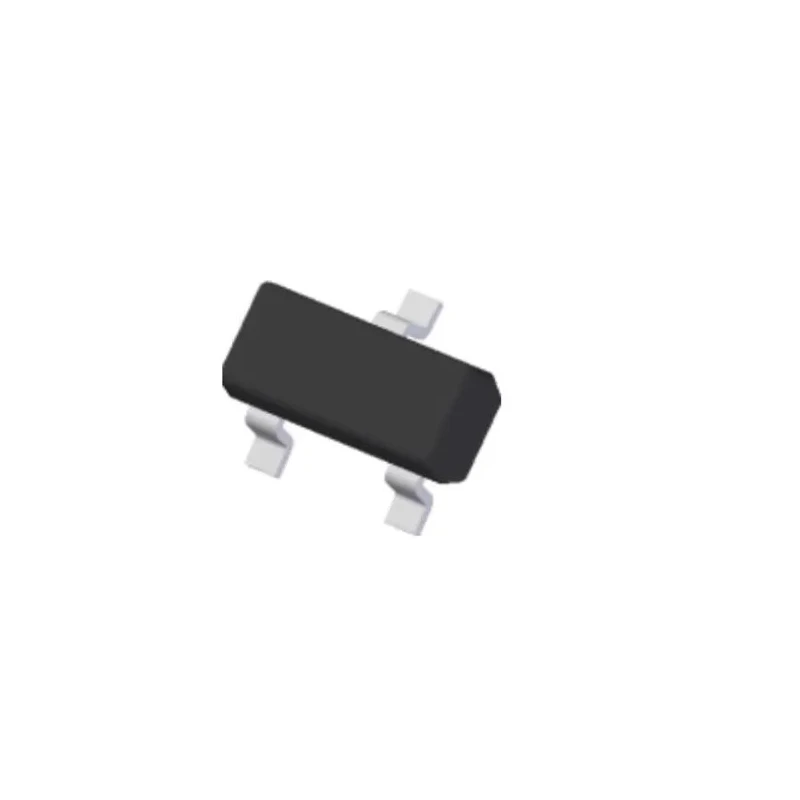

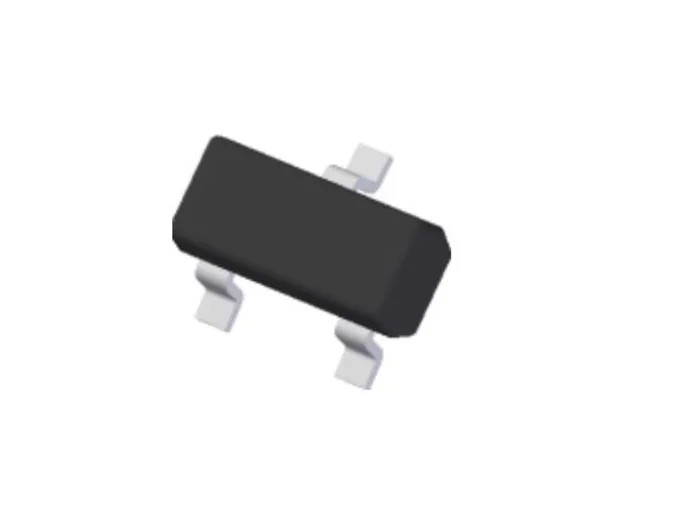

The DiodesZetex DMP2120U-7 is a high-efficiency P-Channel MOSFET designed for power management and switching applications. Featuring a maximum continuous drain current of 3.8 A and a maximum drain-source voltage of 20 V, this device operates in enhancement mode enabling superior low on-resistance and fast switching speed. The 3-pin SOT-23 surface mount package offers a compact footprint, ideal for space-constrained industrial and automotive electronics.
With a typical gate charge of 6.3 nC at a gate-source voltage of 8 V, the MOSFET ensures minimal switching losses, optimizing power efficiency. It complies with the automotive standard AEC-Q101, extending reliability to automotive and industrial applications. Its operating temperature range from -55°C to 150°C makes it suitable for demanding environments.
The device features low input/output leakage and is manufactured with a lead-free, halogen and antimony free "green" process, supporting environmentally conscious product designs. Typical applications include battery charging circuits, power management modules, DC-DC converters, and portable power adaptors used across industrial, automotive, and commercial electronics sectors.
Designed for low on-resistance and superior switching performance. Maximum continuous drain current: 3.8 A. Maximum drain-source voltage: 20 V. Enhancement mode, P-Channel type. Compact 3-pin SOT-23 surface mount package.
Typical gate charge: 6.3 nC at Vgs = 8 V. Wide operating temperature range: -55°C to 150°C. Automotive standard AEC-Q101 compliant. Lead-free, halogen and antimony free.
This MOSFET is ideal for industrial electronic designs requiring efficient power switching and management across automotive, laboratory, and commercial electronic applications. Browse more high-quality MOSFETs and semiconductor components at EnvMart for your next project.
