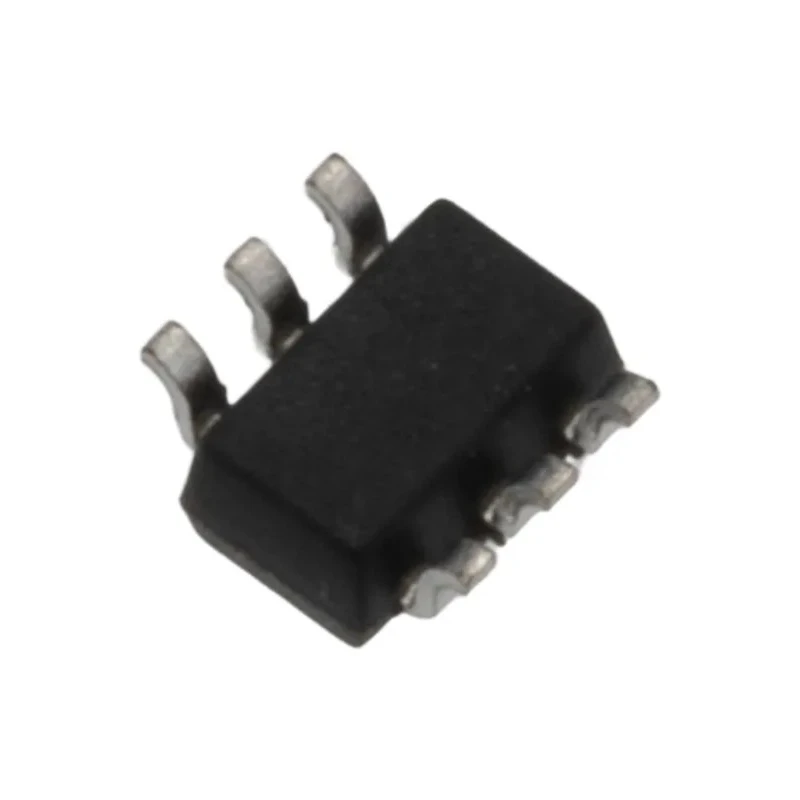

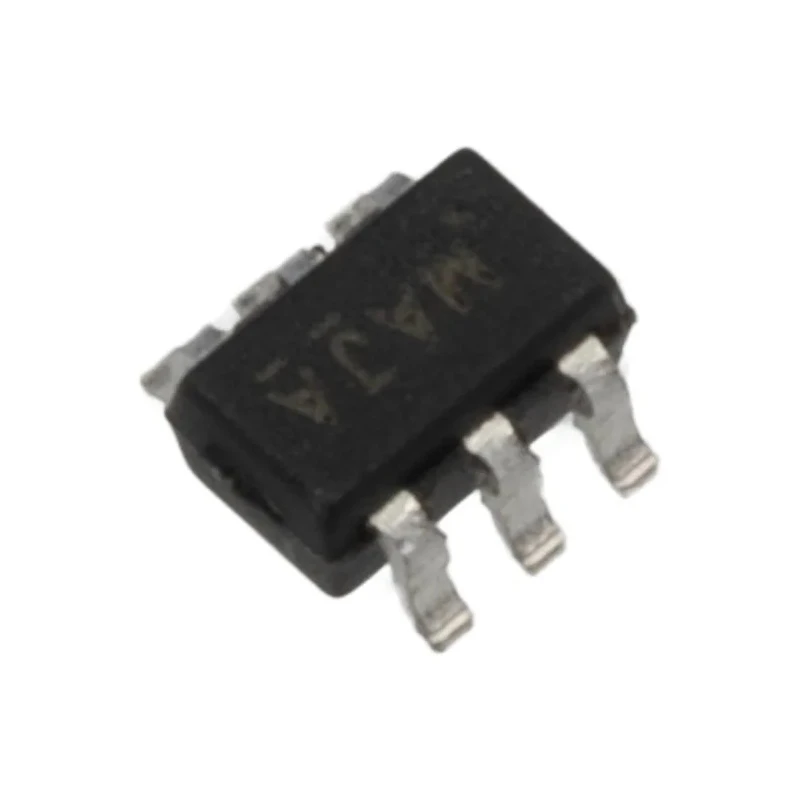

Vishay P-Channel MOSFET, Maximum Continuous Drain Current 1.2A, Maximum Drain Source Voltage 5.5V, 6-Pin SIP32431DR3-T1GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.1mm |
| Length | 2.15mm |
| Model | SIP32431DR3-T1GE3 |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | SiP32431DR |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70-6 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 1.2A |
| Maximum Drain Source Voltage Vds | 5.5V |
| Maximum Drain Source Resistance Rds | 147mΩ |
| Maximum Power Dissipation Pd | 250mW |
Key Features
- Features low on-resistance of 147mΩ for reduced conduction losses.
- Supports continuous drain current of 1.2A for steady switching loads.
- Maximum power dissipation is 250mW for moderate thermal conditions.
- Operates reliably within -40°C to 85°C temperature range.
- Uses a compact 6-pin SC-70-6 surface mount package suitable for reflow soldering.
- RoHS compliant ensuring lead-free manufacturing.
- Ideal for handheld, portable devices, and battery protection circuits.
- Enables use in low-voltage reverse-polarity protection and densely populated SMD assemblies.
Product Description
Vishay SIP32431DR3-T1GE3 is a P-channel MOSFET featuring a maximum continuous drain current of 1.2A and a maximum drain-source voltage of 5.5V. Packaged in a 6-pin SC-70-6 surface mount format, it is designed for board-level power management in compact electronic assemblies.
The device offers a low on-resistance of 147mΩ which reduces conduction losses, making it efficient for switching operations. With a power dissipation capacity of 250mW, it handles moderate thermal loads effectively under standard operational conditions ranging from -40°C to 85°C. Its surface-mount design supports space-constrained PCB layouts facilitating high-density component placement.
This MOSFET complies with RoHS standards, ensuring lead-free manufacturing suitability. Its electrical characteristics make it suited for handheld and portable device power paths, battery protection circuits, load-switch applications, and low-voltage reverse-polarity protection.
The compact package dimension, measuring 2.15mm in length, 2.2mm in width, and 1.1mm in height, suits modern miniaturized electronic equipment and wearable devices. The six-pin configuration supports efficient integration and reliable connectivity within SMD assemblies.
Low on-resistance of 147mΩ enables efficient conduction. Maximum continuous drain current rating of 1.2A. Drain-source voltage limit of 5.5V tailored for low-voltage systems. Supports thermal dissipation power of 250mW for moderate heat conditions.
Operational temperature range from -40°C to 85°C caters to industrial and consumer applications. Compact SC-70-6 surface mount package facilitates tight PCB footprints. RoHS compliant for environmentally responsible manufacturing.
Applications include portable devices, battery protection, and reverse-polarity circuits.
This Vishay MOSFET is an excellent choice for industrial electronics, consumer electronics, telecommunications, and other fields requiring reliable low-voltage switching solutions. Browse the electronics & electricals category on EnvMart for related semiconductor components and power devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 1.2A.
This MOSFET has a maximum drain-source voltage of 5.5V.
It features a low on-resistance of 147mΩ, which helps reduce conduction losses.
The maximum power dissipation for this model is 250mW under moderate thermal conditions.
It operates reliably within a temperature range of -40°C to 85°C.
This model is packaged in a compact 6-pin SC-70-6 surface mount format.
Yes, this MOSFET is RoHS compliant, ensuring lead-free manufacturing.
The dimensions are 2.15mm in length, 2.2mm in width, and 1.1mm in height.
It is suitable for handheld and portable devices, battery protection circuits, and low-voltage reverse-polarity protection.
This model has a pin count of 6.
The channel type of this device is P-channel.
This MOSFET belongs to the SiP32431DR series.
