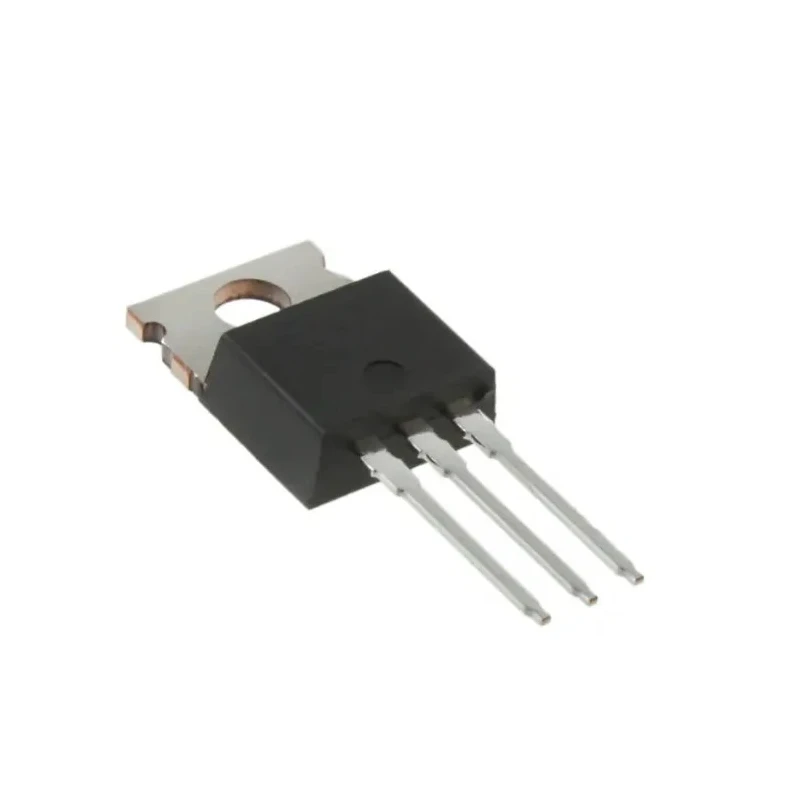

Vishay P-Channel Power MOSFET 18 A, 50 V, TO-220AB Package IRF9Z30PBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 6.48mm |
| Length | 14.4mm |
| Model | IRF9Z30PBF |
| Width | 10.52mm |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Number of Elements per Chip | 1 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 18A |
| Maximum Drain Source Voltage Vds | 50V |
| Maximum Drain Source Resistance Rds | 0.14Ω |
| Maximum Power Dissipation Pd | 74W |
| Typical Gate Charge Qg @ Vgs | 39nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Transistor Configuration | Single |
Key Features
- Equipped with a durable TO-220AB package ensuring reliable thermal management.
- Offers a maximum power dissipation rating of 74 W for high-performance applications.
- Operates effectively in temperature ranges from -55°C to 150°C.
- Features a low drain-source resistance of 0.14 Ω for reduced conduction losses.
- Supports a maximum gate-source voltage of ±20 V for enhanced control.
- Typical gate charge of 39 nC enables fast switching speeds.
- Single transistor configuration suitable for various power electronics.
- Compliant with RoHS standards ensuring eco-friendly product composition.
Product Description
Vishay IRF9Z30PBF is a high-quality P-Channel Power MOSFET packaged in a TO-220AB form factor, capable of handling a maximum continuous drain current of 18 A and a drain-source voltage of 50 V. This device ensures excellent efficiency by optimizing switching performance and conduction losses, making it suitable for demanding power management applications.
It features a robust maximum power dissipation of 74 W and an operating temperature range from -55°C to 150°C, promoting reliable operation in harsh industrial and commercial environments. The MOSFET exhibits a low drain-source resistance (Rds(on)) of 0.14 Ω at a gate-source voltage of 10 V, contributing to superior energy efficiency.
The device supports a maximum gate-source voltage of ±20 V and has a typical gate charge of 39 nC, enabling fast switching speeds beneficial in inverter circuits and switch-mode power supplies. Its single transistor configuration provides flexibility in various electrical designs.
Manufactured with RoHS compliance, this MOSFET suits applications including battery chargers, inverters, power supplies, and switching mode power supplies (SMPS) in industrial, laboratory, and HVAC environments. The package dimensions - length 14.4 mm, width 10.52 mm, and height 6.48 mm - facilitate compatibility with typical heatsinking solutions.
This component is made in China and does not conform to automotive standards, focusing on industrial and commercial sectors. Durable TO-220AB package for reliable heat dissipation. Maximum continuous drain current of 18 A suitable for power circuits.
Low Rds(on) at 0.14 Ω reduces power losses during conduction. Wide operating temperature range from -55°C to 150°C enables usage in diverse environments. Fully avalanched rated for transient voltage protection. Fast switching capability enhanced by typical gate charge of 39 nC.
RoHS compliant ensuring environmentally safe materials. Ideal for battery chargers, inverters, and SMPS applications. Single transistor configuration for diverse electronic designs. Explore a wide range of Power MOSFETs and related electronic components in the EnvMart catalog for industrial and commercial power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 18 A.
This power MOSFET has a maximum drain-source voltage rating of 50 V.
It has a maximum power dissipation rating of 74 W, suitable for high-performance applications.
The operating temperature range for this model is from -55°C to 150°C.
The MOSFET features a low drain-source resistance (Rds(on)) of 0.14 Ω.
The typical gate charge for this model is 39 nC, which enables fast switching speeds.
It supports a maximum gate-source voltage of ±20 V.
The package dimensions are 14.4 mm in length, 10.52 mm in width, and 6.48 mm in height.
This device uses a single transistor configuration, providing flexibility in various electrical designs.
Yes, this MOSFET is compliant with RoHS standards, ensuring eco-friendly product composition.
This component is manufactured in China.
