| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 4.6mm |
| Model | B320AF-13 |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | B320AF |
| Maximum Operating Temperature | 150°C |
| Package Type | SMAF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 500mV |

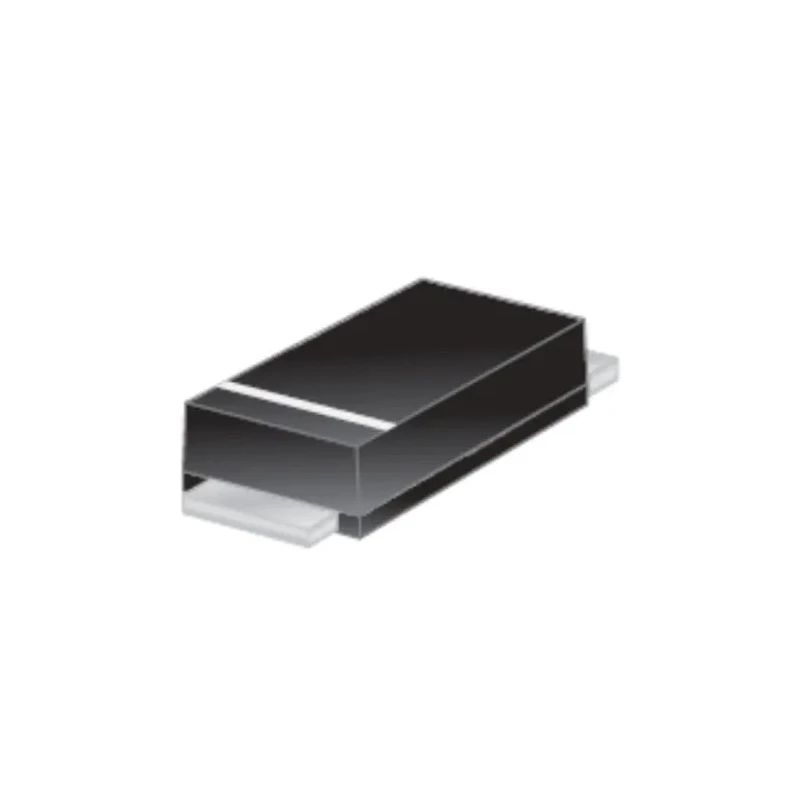

DiodesZetex B320AF-13 is a high-performance 20 V, 3 A Schottky diode designed for surface mount applications in electronic circuits requiring efficient and reliable rectification. This diode features a single rectifier Schottky configuration with a 2-pin SMAF package, enabling compact PCB layouts and ease of assembly.
Boasting a maximum continuous forward current of 3 A and a low forward voltage of 500 mV, it enables better efficiency and reduced power loss, which results in cooler operation under load.
The device can operate in a broad temperature range from -55°C to 150°C, ensuring reliable performance in demanding industrial, automotive, and consumer electronics environments. It is rated for a peak reverse repetitive voltage of 20 V and a peak non-repetitive forward surge current of 80 A, thus providing strong tolerance to load transients and surges.
Additional features include a lead-free finish and compliance with halogen- and antimony-free environmental standards, making it suitable for green manufacturing processes. Maximum continuous forward current: 3 A. Peak reverse repetitive voltage: 20 V.
Low maximum forward voltage of 500 mV for improved efficiency. Compact 2-pin SMAF surface mount package. Wide operating temperature range: -55°C to 150°C. High surge current capability of 80 A. Low peak reverse current of 200 μA.
Environmentally friendly lead-free and halogen-free construction.
This diode is highly suitable for use as boost diodes, blocking diodes, and recirculating diodes in various electronic power conversion, signal rectification, and protection circuits in industrial, automotive, and consumer applications.
