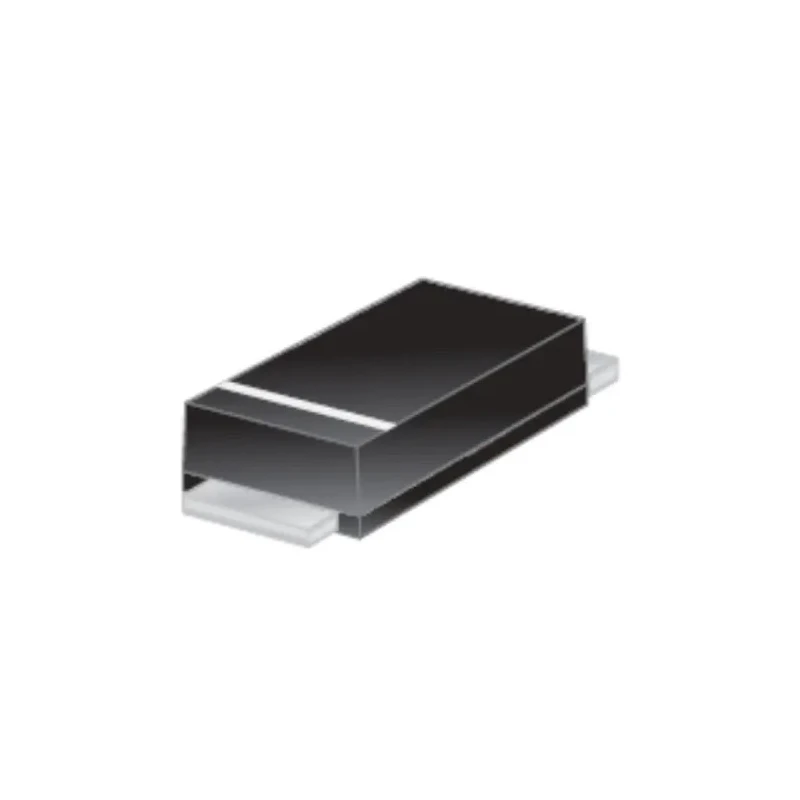

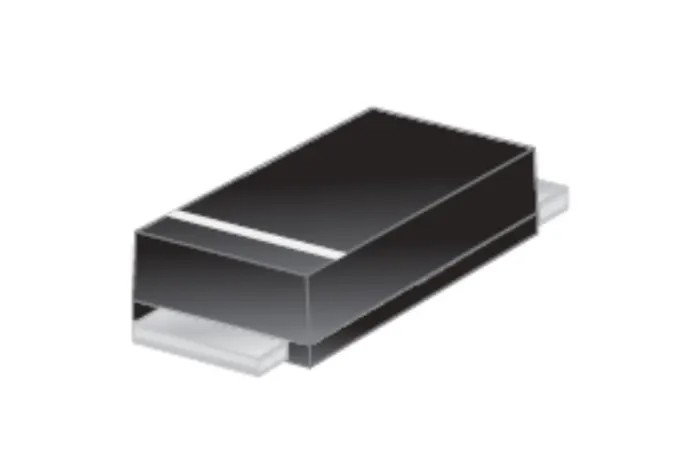

DiodesZetex 30 V 3 A Single Schottky Diode Surface Mount SMAF Package B330AF-13

DiodesZetex B330AF-13 is a high-performance single Schottky diode designed for surface mounting in SMAF packages. This device features a maximum continuous forward current rating of 3 A and a peak reverse repetitive voltage of 30 V, making it ideal for general rectification applications in electronic circuits.

The diode's reduced low forward voltage drop of approximately 500 mV enhances energy efficiency and ensures cooler operation, contributing to system reliability. It exhibits excellent reverse leakage stability at elevated temperatures up to 150°C, improving reliability against thermal runaway failure in industrial and commercial electronic equipment.

Its compact size with dimensions of 4.6 mm length, 2.95 mm width, and 1.1 mm height facilitates PCB space optimization. The B330AF-13 has a lead-free finish and is halogen and antimony free, making it a green component suitable for environmentally conscious designs.

This Schottky diode supports transient conditions with a peak non-repetitive forward surge current of 80 A and a peak reverse current of 200 μA. The device is well-suited for applications as boost diodes, blocking diodes, and recirculating diodes in power supplies, industrial controls, telecommunications, and automotive electronics where low losses and high switching speeds are required.

Maximum continuous forward current of 3 A ensures adequate power handling. Peak reverse repetitive voltage rating of 30 V qualifies for medium voltage applications. Low forward voltage drop optimizes efficiency and reduces thermal stress.

Wide operating temperature range from -55°C to 150°C supports harsh environments. Compact surface mount SMAF package minimizes PCB footprint. Lead-free and halogen-free construction meets environmental regulations. Peak surge current resilience offers durability against transient loads.

Reliable performance with excellent reverse leakage stability at high temperatures.

This product is widely used in industrial and commercial electronics including power rectification, voltage clamping, and protection circuits. It is a trusted diode for engineers seeking reliable and efficient semiconductors in compact surface-mount form factors.
