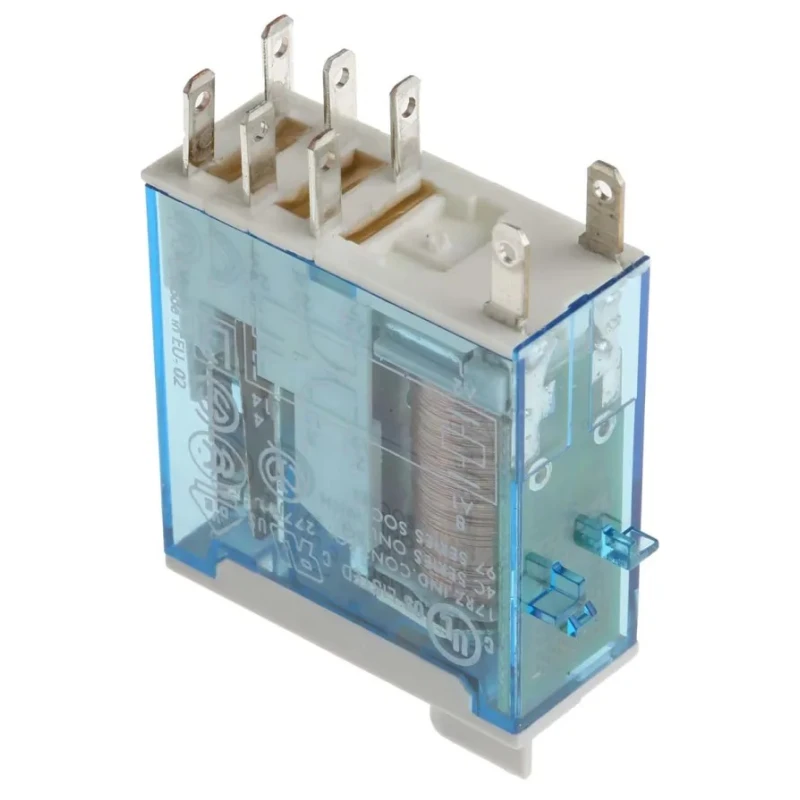

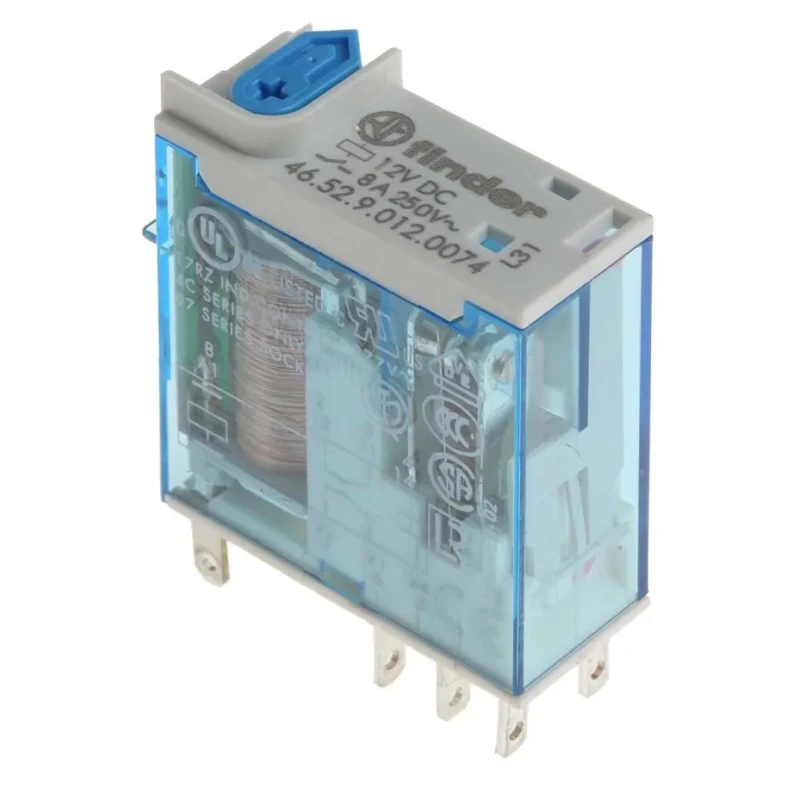

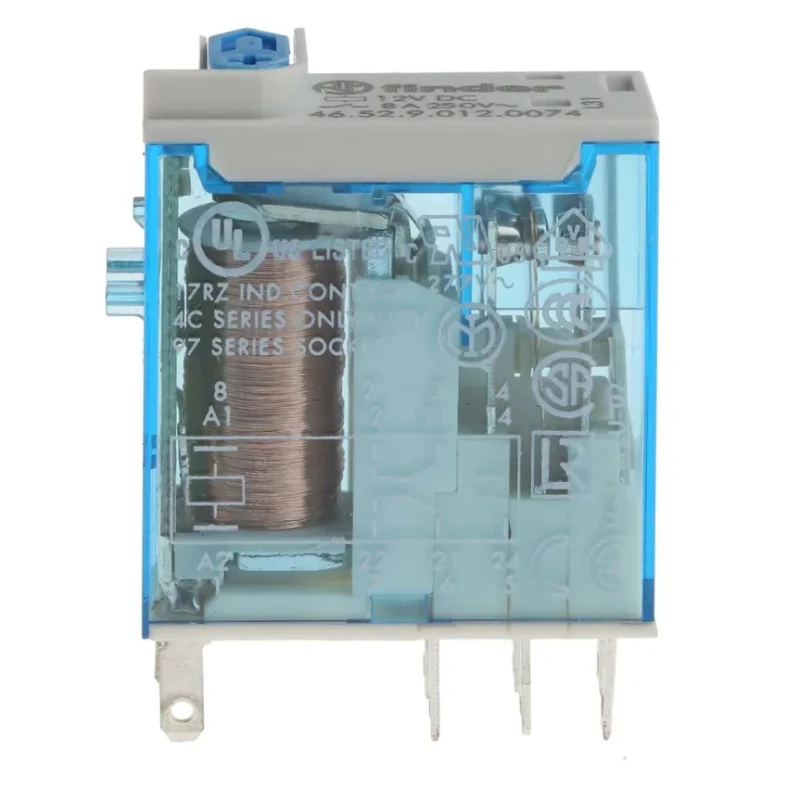

Finder PCB Power Relay 12V DC Coil 8A Switching Current DPDT 46.52.9.012.0074
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Standards/Approvals | CCC, CE, CSA, cURus, EAC, EN, RINA, RoHS, VDE |
| Coil Resistance | 300Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 15V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 500mW |
Key Features
- Dual-pole configuration provides flexible control for electrical circuits.
- Supports up to 8A switching current for substantial load management.
- Coil resistance of 300 ohms ensures effective operation with 500mW coil power.
- Suitable for operation in temperatures ranging from -40°C to 70°C.
- Silver alloy contacts enhance durability and conductivity.
- Compact dimensions (29mm length, 12.4mm width, 32.8mm height) enable easy integration on PCBs.
- High isolation rated at 6kV between coil and contacts for safety.
- Designed to switch up to 15V DC and 250V AC under maximum switching power of 2kVA.
Product Description
Finder 46.52.9.012.0074 PCB Power Relay is engineered for reliable performance in various industrial and automation applications. Featuring a 12V DC coil voltage and double-pole double-throw (DPDT) contact configuration, this relay offers versatile control for circuits on printed circuit boards (PCBs). Its 8A switching current and switching power capability of 2kVA enable it to handle substantial load requirements safely.
This relay has been constructed with silver alloy contacts for enhanced longevity and conductivity and comes equipped with a coil resistance of 300 ohms dissipating 500mW power, ensuring efficient energy use. Designed to operate within a broad temperature range of -40°C to +70°C, it is suitable for demanding environments.
Its compact form factor with dimensions of 29mm length, 12.4mm width, and 32.8mm height facilitates easy mounting on standard PCBs. High electrical isolation rated at 6kV between coil and contacts protects the circuit and enhances operational safety.
Typical applications include automation of blinds and shutters, lift control systems, shipyard equipment interfaces, road and tunnel lighting systems, and bottling plant machinery. Its ability to switch both DC and AC voltages up to 15V and 250V respectively allows versatile usage across various electrical systems.
Dual-pole configuration for flexible control of electrical circuits. Supports 8A switching current for managing substantial electrical loads. PCB mount type ensures easy and secure installation. Operating temperature range from -40°C to +70°C for varied environmental conditions.
Silver alloy contacts provide durability and reliable conductivity. Compact dimensions enable integration into tight PCB layouts. High isolation of 6kV between coil and contacts promotes safety. Suitable for both DC and AC switching voltages up to 15V DC and 250V AC.
Meets multiple international standards including CCC, CE, CSA, cURus, EAC, EN, RINA, RoHS, and VDE.
It is recommended for use in industrial, automation, and electrical applications requiring reliable and efficient switching performance. For more industrial electronics including relays and contactors, explore the relevant categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 8A, allowing it to manage substantial electrical loads effectively.
The coil voltage for this relay is 12V DC, which is necessary for its operation.
The relay has compact dimensions of 29mm in length, 12.4mm in width, and 32.8mm in height, making it suitable for PCB integration.
It operates effectively within a temperature range of -40°C to +70°C, making it suitable for various environmental conditions.
This unit features a double-pole double-throw (DPDT) contact configuration, providing flexible control for electrical circuits.
The coil resistance is 300 ohms, which helps ensure effective operation with a coil power of 500mW.
The contacts are made of silver alloy, which enhances durability and conductivity.
It is designed to switch up to 2kVA, allowing for substantial load management.
This model can switch DC voltages up to 15V and AC voltages up to 250V.
It meets multiple international standards including CCC, CE, CSA, cURus, EAC, EN, RINA, RoHS, and VDE.
This relay is designed for PCB mounting, ensuring secure and easy installation.
Typical applications include automation of blinds and shutters, lift control systems, and road and tunnel lighting systems.
