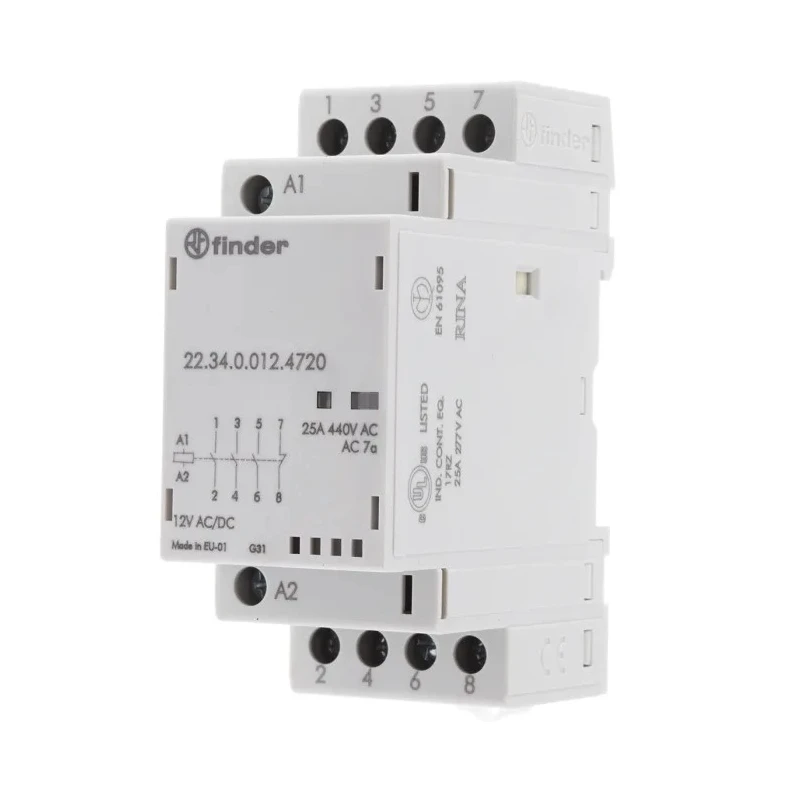

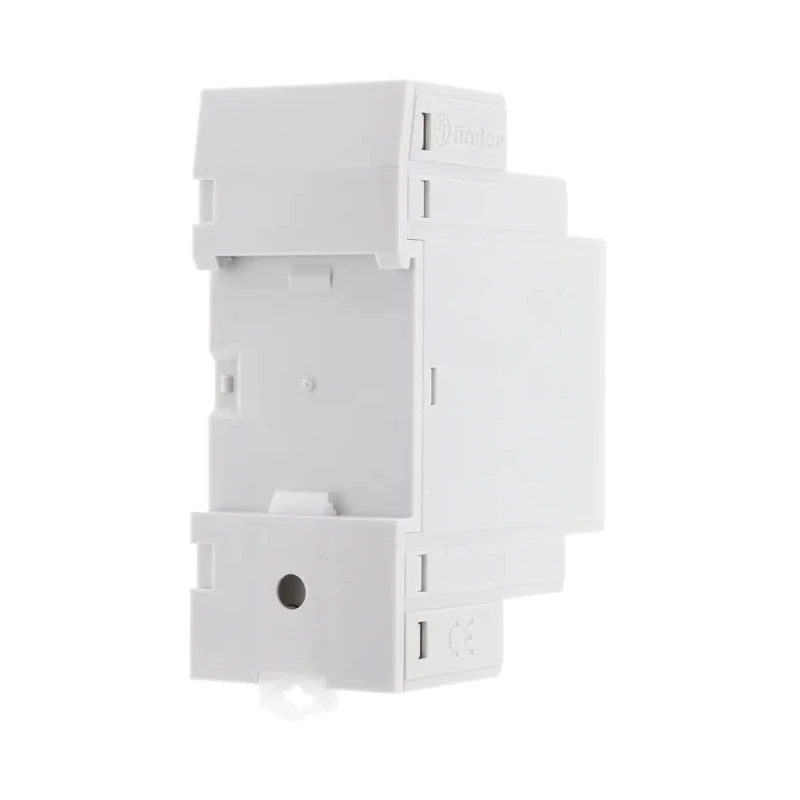

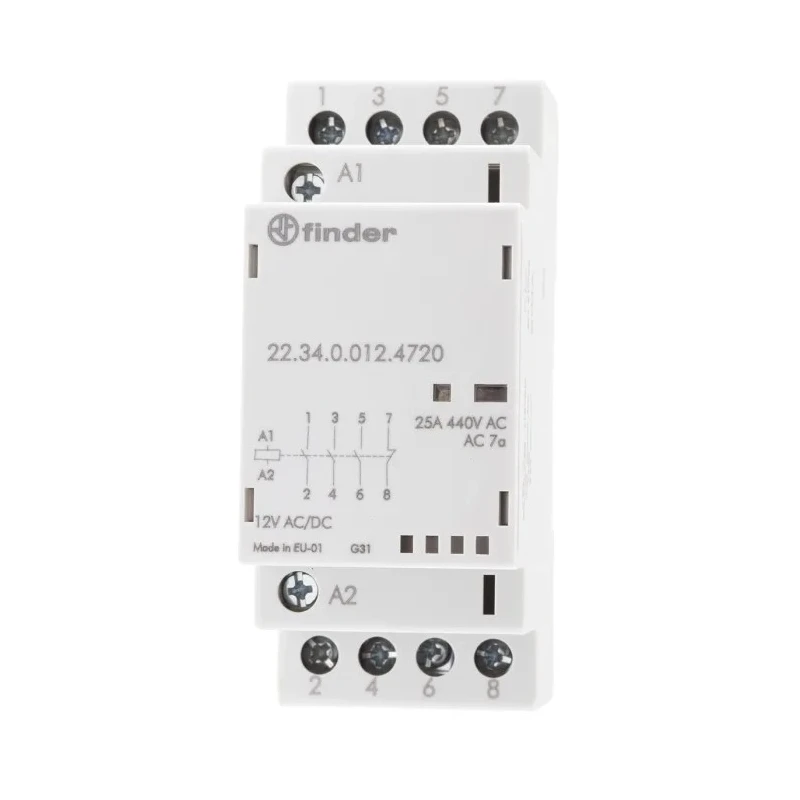

Finder 22 Contactor 12V DC Coil 4-Pole 25A 4 kW Motor Control 3 NO/1 NC 250 V DC 440 V AC 22.34.0.012.4720
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Function | Motor Control |
| Length | 35mm |
| Depth | 60.8mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | 22 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CE, cULus, UL |
| Contact Voltage | 250, 440V dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO/1 NC |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 3 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
Key Features
- This contactor features a 12V DC coil suitable for industrial use.
- It is configured with 4 poles and a contact arrangement of 3 normally open and 1 normally closed contact.
- Capable of handling contact currents up to 25A at voltages of 250V DC and 440V AC.
- Designed with screw terminal type for secure and easy wiring connections.
- Mountable on a standard 35mm DIN rail, ensuring straightforward installation.
- Operates reliably in temperature ranges from -20°C to 50°C for versatile environments.
- Meets industry standards including CE, cULus, and UL certifications.
- Compact dimensions of 35 mm width and 60.8 mm depth make it suitable for constrained spaces.
Product Description
Finder 22.34.0.012.4720 is a high-quality contactor designed for motor control with a nominal 12V DC coil voltage, supporting significant electrical demands in industrial applications. This model features a robust 4-pole configuration with a combination of 3 normally open and 1 normally closed contacts, suitable for efficient and flexible power circuit switching.
The device operates safely within a wide temperature range from -20°C to 50°C, making it ideal for challenging operational environments. It supports contact voltages up to 250 V DC and 440 V AC with a current rating of 25 amperes, accommodating both resistive and inductive loads effectively.
Installation is facilitated by a 35mm DIN rail mount compliant with EN 60715, allowing quick and secure attachment in control panels or electrical cabinets. The screw terminal design simplifies wiring and ensures a tight connection for reliable operation. Its compact size, measuring 35 mm in width and 60.8 mm in depth, allows deployment in limited space applications without sacrificing performance.
Key features include continuous duty ratings and reinforced insulation for enhanced operational safety. The contactor is suitable for diverse industrial uses including motor control, pump control, automated lighting systems such as garden or street lighting, hotel energy management, and office lighting regulation.
Continuous duty ratings for stable performance under load. AC/DC coil compatibility for versatile application. Screw terminal type makes wiring simple and secure. Maximum current rating of 25A supports varied electrical demands.
Operates reliably between -20°C and 50°C temperature range. Reinforced insulation enhances safety during operation. Compact design allows for easy installation in tight spaces. Auxiliary contacts provide additional control flexibility.
Manufactured in Italy to stringent quality standards including CE, cULus, and UL, this Finder Series 22 contactor ensures dependable motor control solutions across industrial automation sectors.
Explore more Contactors and automation solutions at EnvMart to find the right components tailored to your specific control system requirements.
