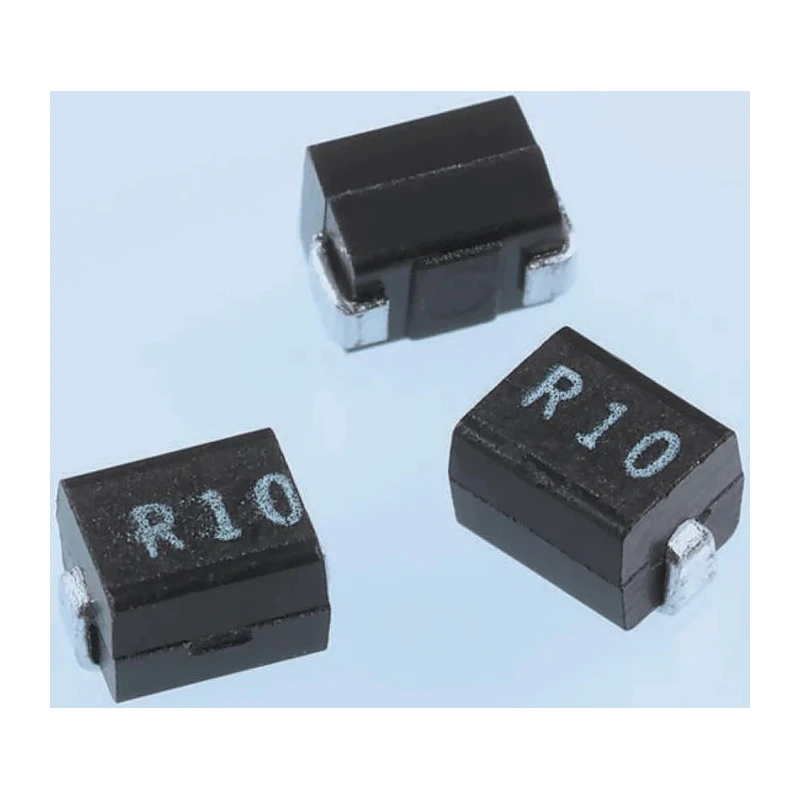

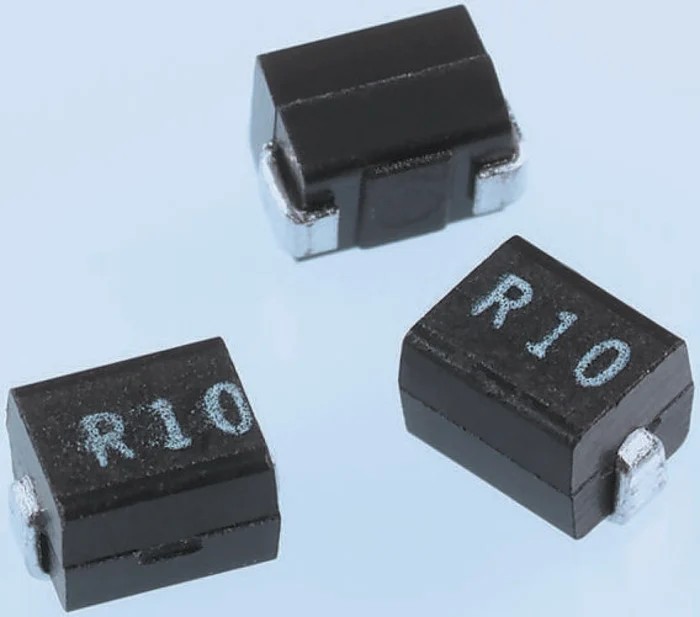

Wurth Elektronik Wirewound Surface Mount Inductor, WE-GF Series, 1210 Package, 0.22 μH ±20% Inductance, 450 mA DC 744764002

Wurth Elektronik 744764002 is a high-quality wirewound surface mount inductor designed within the WE-GF series. It features a 1210 package size optimized for compact circuit board layouts and applications requiring high-frequency inductors. The inductor is constructed with a ferrite core, delivering stable inductance of 0.22 μH with a tolerance of ±20%, ideal for circuits such as HF amplifiers, oscillators, transponders, LC filter circuits, and adapter networks.

This unshielded inductor supports a maximum DC current of 450 mA and exhibits a low maximum DC resistance of 320 mΩ, minimizing power losses and enhancing efficiency. It operates reliably over a temperature range of -40°C to 105°C, making it suitable for various industrial and electronic environments.

The termination style facilitates surface mount technology (SMT) assembly, enabling automated placement and soldering on PCBs. The maximum self-resonant frequency is 350 MHz, supporting use in high-frequency circuits with a minimum quality factor of 30 for effective performance. This component complies with REACH and RoHS standards, ensuring adherence to environmental and safety regulations.

Ferrite core wirewound construction provides consistent inductance performance. Compact 1210 case dimensions support space-efficient designs. Unshielded design suitable for non-critical EMI/EMC environments. Reliable operation from -40°C to +105°C operating temperatures.

Surface mount termination for modern PCB assembly processes. Compliance with RoHS and REACH environmental standards. Supports applications in HF amplifiers, oscillators, transponders, and LC filters. Low DC resistance reduces power dissipation.

Maximum self-resonant frequency supports high-frequency use cases. Minimum quality factor ensures effective energy storage and filtering.

This Wurth Elektronik WE-GF series inductor is suitable for industrial, electronics manufacturing, telecommunications, and high-frequency circuit design applications. It enhances circuit stability and performance where compact and efficient inductors are necessary. For more components and solutions, explore EnvMart's Electronics Components category featuring advanced Surface Mount Inductors and related products.
