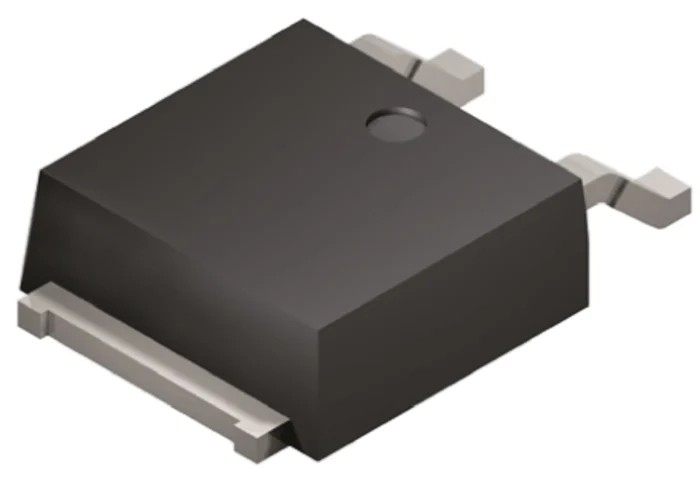

Vishay 60 V 3.5 A Schottky Rectifier Surface Mount TO-252 Package 3-Pin DPAK VS-30WQ06FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.39mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-30WQ06FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | Q |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | AEC-Q101, RoHS 2002/95/EC |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3.5A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 490A |
| Maximum Forward Voltage Vf | 0.76V |
| Vishay 60V 3.5A, Schottky Diode, 3-Pin DPAK 30WQ06FNBrand | Vishay |
Key Features
- Features a 3-pin DPAK TO-252 package for surface mounting.
- Maximum continuous forward current rating of 3.5 A ensures reliable performance.
- Peak reverse repetitive voltage of 60 V suitable for various power applications.
- Very low forward voltage of 0.76 V reduces power loss and heat generation.
- Wide operating temperature range from -40°C to 150°C supports harsh environments.
- Peak non-repetitive forward surge current capability of 490 A.
- Complies with automotive standard AEC-Q101 and RoHS 2002/95/EC directives.
- Compact dimensions (6.73 mm length, 6.22 mm width, 2.39 mm height) suitable for space-constrained designs.
Product Description
Vishay VS-30WQ06FN-M3 is a Schottky rectifier diode designed for high efficiency power conversion applications within industrial, automotive, and consumer electronics sectors. Operating with a maximum continuous forward current of 3.5 A and a peak repetitive reverse voltage rating of 60 V, this diode provides fast switching with minimal forward voltage drop (0.76 V), enabling reduced power losses and improved thermal management.
Housed in a TO-252 DPAK 3-pin surface mount package, the diode is engineered for easy mounting and robust performance in compact electronic assemblies. It supports an operating temperature range from -40°C to 150°C, ensuring reliability in demanding environments. Additionally, its peak non-repetitive surge current of 490 A makes it capable of handling transient conditions encountered in industrial power electronics.
This rectifier meets the rigorous automotive standard AEC-Q101 and RoHS compliance, making it ideal for automotive power supplies and other regulated applications. Its compact size (6.73 mm length, 6.22 mm width, 2.39 mm height) allows usage in space-sensitive designs across numerous equipment including power supplies, battery chargers, and DC-DC converters.
Features a 3-pin DPAK TO-252 surface mount package. Maximum continuous forward current of 3.5 A. Peak reverse voltage of 60 V for versatile application. Low forward voltage drop (0.76 V) for high efficiency. Wide operating temperature tolerance from -40°C to 150°C.
Peak non-repetitive forward surge current at 490 A. Automotive qualified with AEC-Q101 and RoHS compliance. Compact dimensions suitable for space-constrained electronics. Single diode configuration for efficient power rectification.
This Vishay Schottky rectifier is well-suited for usage in industrial automation systems, automotive electronics, power supply units, telecommunications devices, and other commercial electronic assemblies. Its reliability and performance make it a strong candidate for applications requiring fast switching and low voltage losses. Explore our full range of semiconductor components for enhanced design flexibility and performance.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 3.5 A.
The dimensions are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The forward voltage drop is 0.76 V.
It has a peak non-repetitive forward surge current capability of 490 A.
The operating temperature range is from -40°C to 150°C.
It comes in a TO-252 DPAK surface mount package.
Yes, it complies with the automotive standard AEC-Q101.
The diode configuration is single.
It meets RoHS 2002/95/EC directives for environmental compliance.
It is suitable for applications in industrial automation, automotive electronics, and power supply units.
