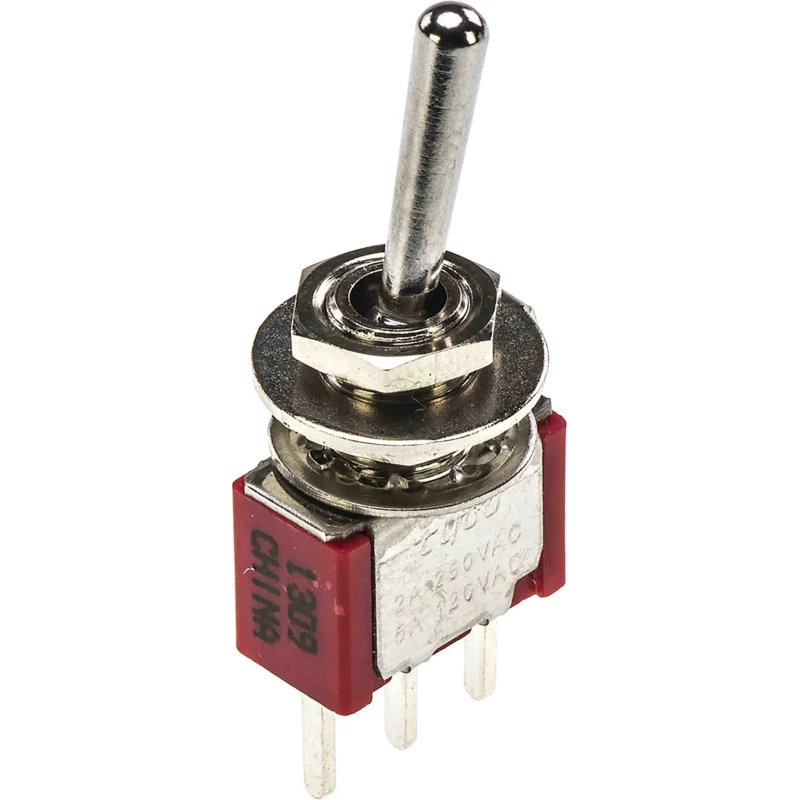

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28V dc 115V ac 4-1825136-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- The switch features On-On toggle operation for dual position control.
- It supports a switch contact current of 5A for reliable conductivity.
- Mount type is PCB with through-hole terminals ensuring secure mechanical and electrical connections.
- The switch has an IP67 rating offering excellent protection against dust and water ingress.
- Constructed with a phenolic actuator and stainless steel frame ensuring durability.
- Operating temperature range of -30°C to 85°C for diverse environmental conditions.
- Epoxy sealed terminals enhance reliability and insulation.
- Compact dimensions enable easy panel integration with a cutout size of 0.25 inches.
Product Description
TE Connectivity 4-1825136-1 Toggle Switch PCB Mount On-On SPDT is engineered for industrial and electronic applications requiring reliable switching performance under various electrical loads.
This toggle switch operates with a break-before-make contact timing, providing safe switching between two positions.
The switch is designed for PCB mounting using through-hole terminals which provide sturdy mechanical fastening and robust electrical connectivity suitable for printed circuit boards.
The construction includes a stainless steel frame with brass tin plated solder supports, and a phenolic actuator for enhanced mechanical strength and chemical resistance.
Its IP67 ingress protection rating ensures the switch is dust-tight and protected against water immersion, making it suitable for harsh environments in industrial automation, machinery, and control equipment.
The switch supports contact currents of up to 5 amperes at 28 volts DC or 115 volts AC, making it versatile for various signal and load switching tasks. With an operating temperature span from -30°C to +85°C, this device is adaptable to a wide range of environmental conditions from cold storage to factory floors.
The switch operation is On-On, providing two stable positions for user control. It includes epoxy sealed terminals for enhanced durability and resistance to environmental corrosives. Compact form factor with a panel cutout size of 0.25 inches ensures easy installation in constrained spaces.
Part of the Gemini A series known for quality and compliance with RoHS directives.
Ideal for use in industrial control panels, electronic instrumentation, automation systems, and other commercial electrical equipment where secure and reliable switch operation is required.
Explore more Toggle Switches and related components at EnvMart to suit your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching between two positions.
It supports a maximum contact current of 5A, which ensures reliable conductivity for various applications.
The switch is rated for 28V DC and 115V AC, making it suitable for different electrical loads.
This toggle switch has an IP67 rating, providing excellent protection against dust and water ingress.
The dimensions of this toggle switch are 0.5 inches in length, 0.27 inches in width, and 0.35 inches in height.
It operates effectively within a temperature range of -30°C to +85°C, suitable for diverse environmental conditions.
This model is designed for PCB mounting using through-hole terminals, ensuring secure mechanical and electrical connections.
The required panel cutout size for this toggle switch is 0.25 inches.
The switch features a phenolic actuator and a stainless steel frame, enhancing its mechanical strength and chemical resistance.
Yes, it complies with RoHS directives, ensuring it meets environmental and safety standards.
This model is part of the Gemini A series, known for its quality and compliance in industrial applications.
The actuator length of this switch is 10.41 mm, which contributes to its functionality and usability.
