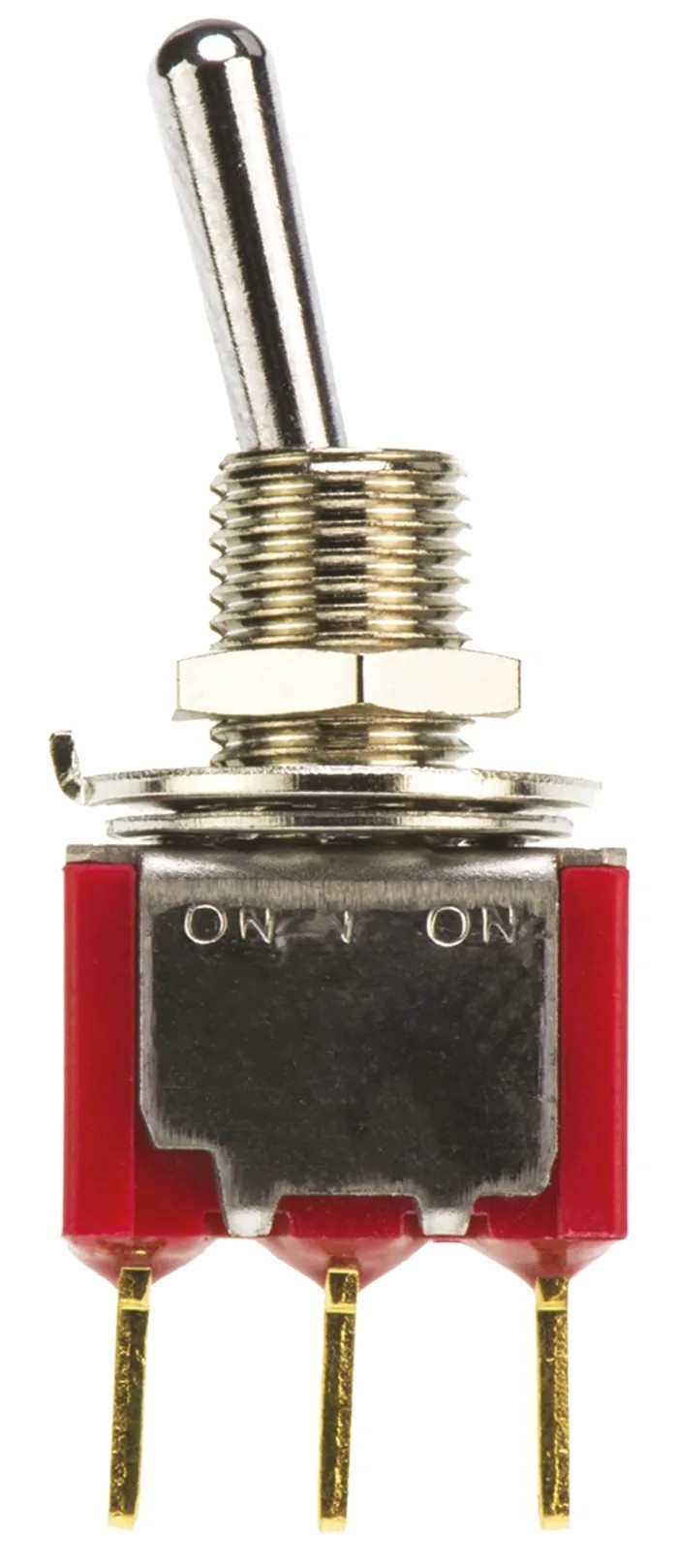

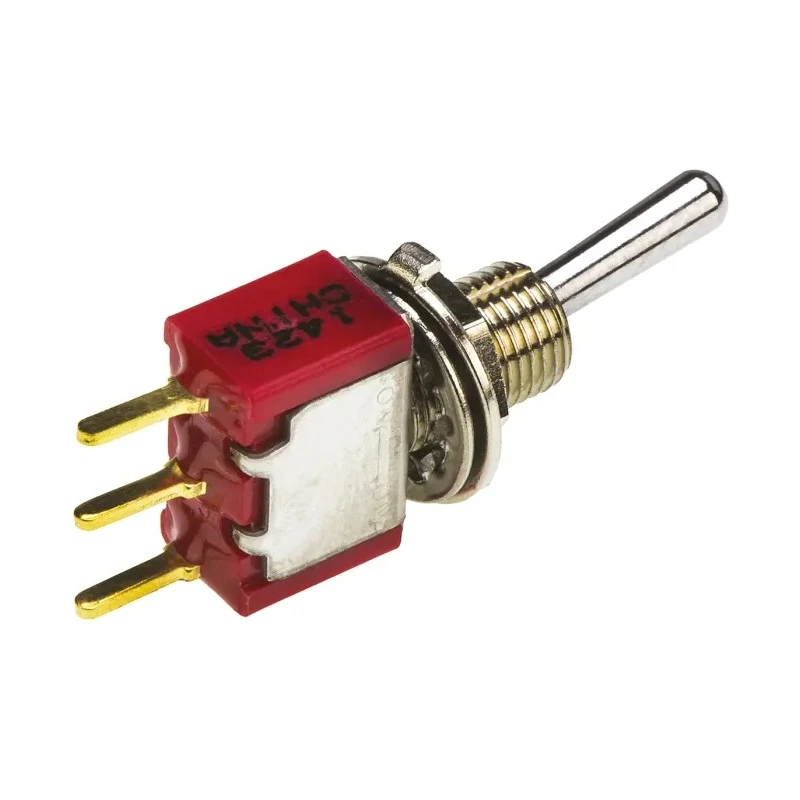

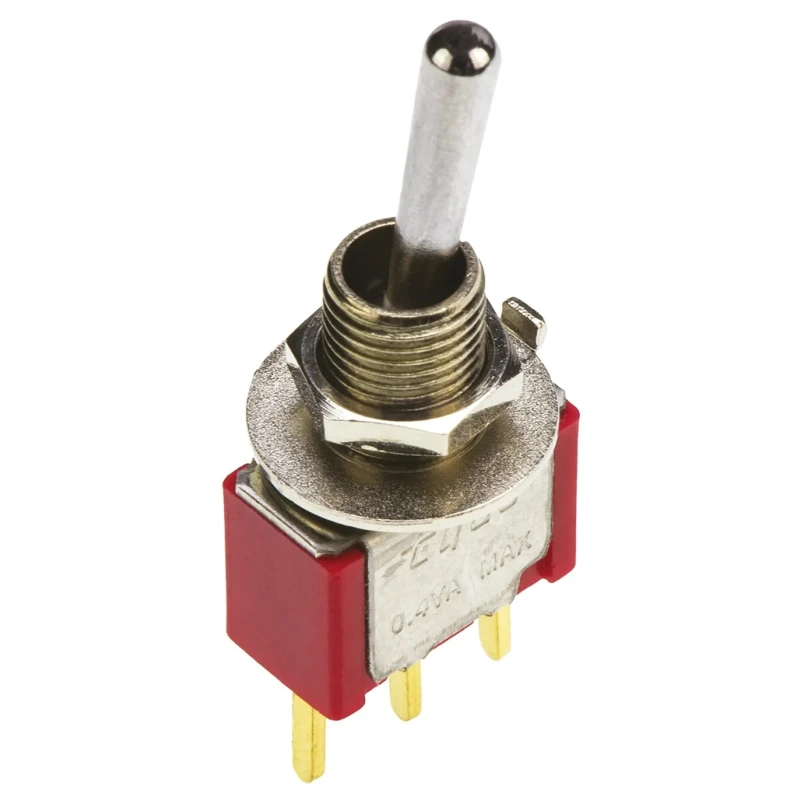

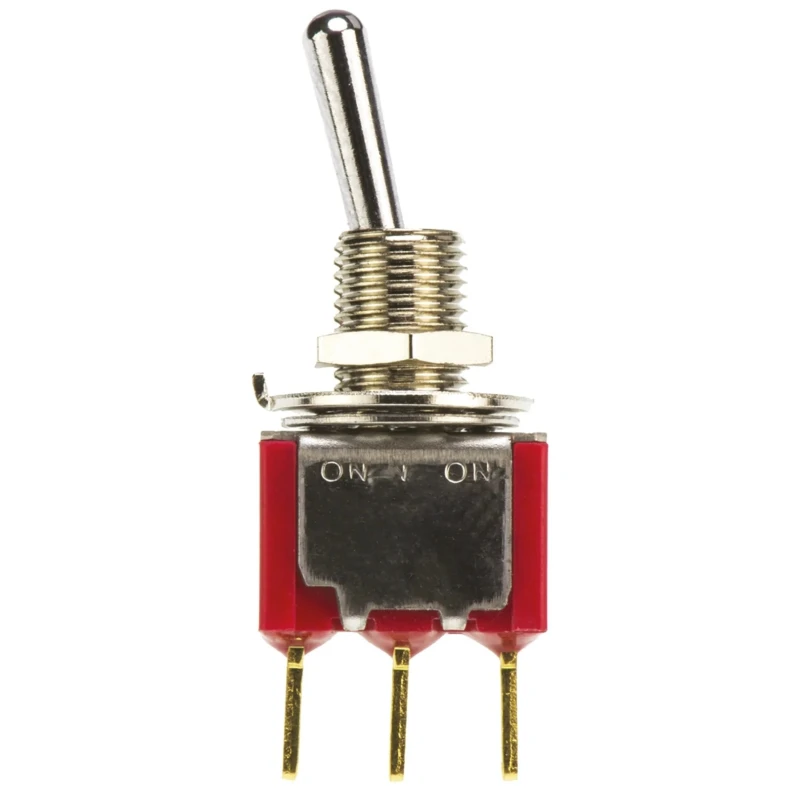

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 4-1825136-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Supports a contact current of 400mA for effective circuit control.
- Rated for 28 V dc and 115 V ac voltages ensuring versatility in applications.
- Features IP67 rating for protection against dust and water ingress.
- Phenolic actuator material provides durability under varying temperatures.
- Compact dimensions with 0.5 inch length and 0.27 inch width suitable for PCB mounting.
- Designed to operate between -30°C and 85°C for various industrial environments.
- Epoxy sealed terminals provide reliable insulation and long-lasting performance.
- Stainless steel frame with brass tin plated solder support enhances mechanical strength.
Product Description
TE Connectivity 4-1825136-4 toggle switch is a robust PCB mount On-On SPDT switch engineered for industrial and electronic applications requiring precise contact configuration and reliable switching performance.
This switch is rated for 28 V dc and 115 V ac operation, supporting a contact current of 400mA, making it suitable for control circuits and moderate power switching.
Constructed with a phenolic actuator and epoxy sealed terminals, the switch ensures durability and longevity even under harsh environmental conditions ranging from -30°C to 85°C. Its stainless steel frame and brass tin plated solder support deliver excellent mechanical strength and solderability for secure PCB integration.
The compact footprint with dimensions of 0.5 inch length, 0.27 inch width, and 0.35 inch height facilitates easy mounting on printed circuit boards with a panel cutout size of 6.35 mm. Additionally, it features an IP67 ingress protection rating, providing resistance to dust and water penetration, enhancing reliability in industrial settings.
The Gemini A series toggle switch operates on an On-On switch configuration with a single pole double throw contact setup. This design makes it ideal for applications in electrical and automation systems requiring dependable manual switching.
Supports a contact current of 400mA for effective circuit control. Rated for 28 V dc and 115 V ac voltages ensuring versatility in applications. Features IP67 rating for protection against dust and water ingress. Phenolic actuator material provides durability under varying temperatures.
Compact dimensions with 0.5 inch length and 0.27 inch width suitable for PCB mounting. Designed to operate between -30°C and 85°C for various industrial environments. Epoxy sealed terminals provide reliable insulation and long-lasting performance.
Stainless steel frame with brass tin plated solder support enhances mechanical strength. Non-illuminated switch configuration using Gemini A series standards for quality assurance.
This toggle switch is widely used in industrial, automation, electrical manufacturing, and laboratory settings where controlled switching on PCBs is required. It delivers precise control with high reliability and excellent environmental resistance.
Explore more quality Toggle Switches and related electrical components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch supports a contact current of 400mA, making it effective for circuit control.
It is rated for 28 V dc and 115 V ac operation, ensuring versatility in various applications.
The switch features an IP67 rating, providing protection against dust and water ingress.
The compact dimensions are 0.5 inches in length, 0.27 inches in width, and 0.35 inches in height, suitable for PCB mounting.
It is designed to operate between -30°C and 85°C, making it suitable for various industrial environments.
This model is designed for PCB mounting, facilitating easy integration into printed circuit boards.
The actuator is made of phenolic material, which provides durability under varying temperatures.
The required panel cutout size for this toggle switch is 6.35 mm.
It features an On-On switch configuration with a single pole double throw (SPDT) contact setup.
Yes, the terminals are epoxy sealed, providing reliable insulation and long-lasting performance.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is widely used in industrial, automation, electrical manufacturing, and laboratory settings where controlled switching on PCBs is required.
