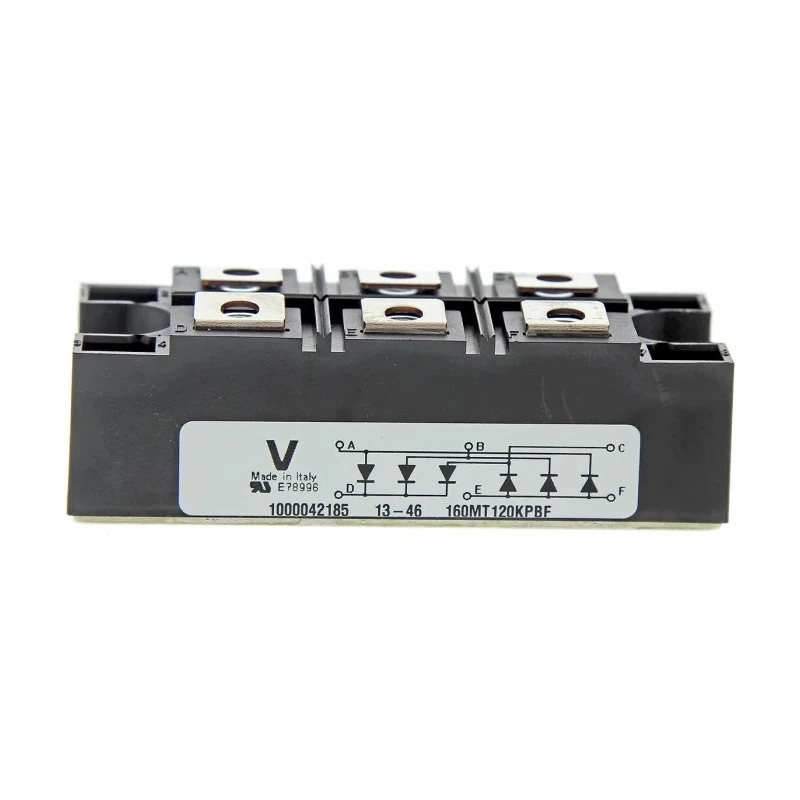

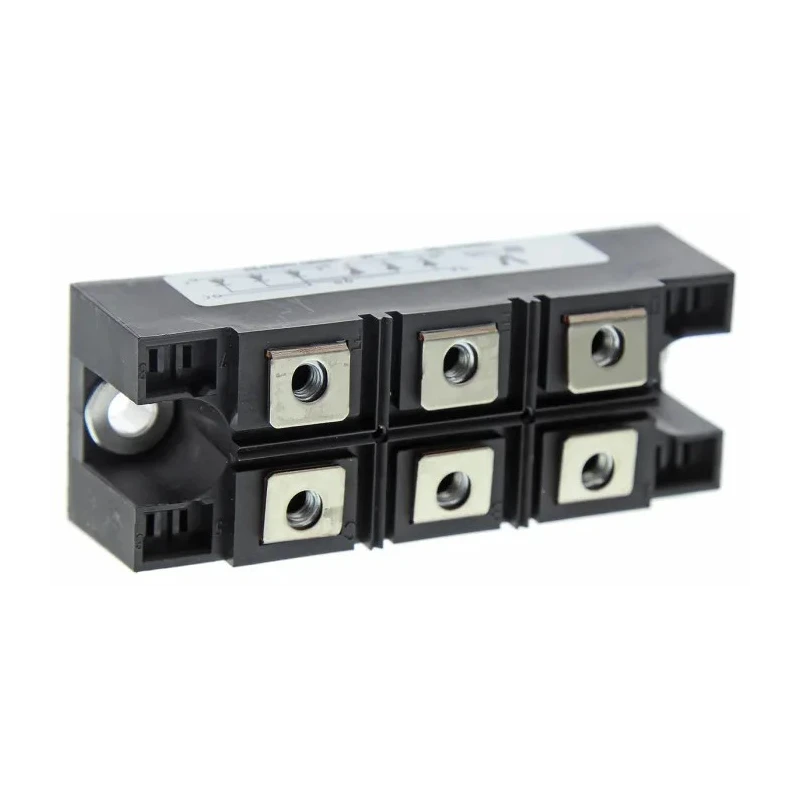

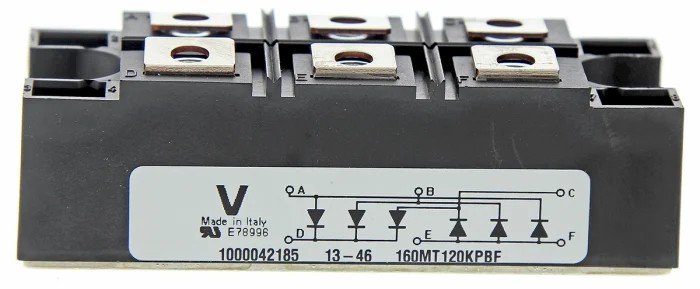

Vishay Bridge Rectifier Module 1200 V 1.5 kA 3-Phase 6-Pin Panel Mount INT-A-PAK VS-160MT120KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-160MT120KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-160MT |
| Configuration | Single |
| Maximum Operating Temperature | 60°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA |
| Forward Current If | 200A |
| Peak Forward Voltage Vf | 1.49V |
Key Features
- Three-phase single configuration with 6-pin panel mount design.
- High forward current rating of 200 A ensures robust operation.
- Durable INT-A-PAK package with excellent thermal conductivity.
- Wide operating temperature range from -40°C to 60°C.
- Electrically insulated case with 4000 Vrms isolating voltage.
- Peak forward voltage of 1.49 V reduces power loss during conduction.
- Low peak reverse current of 10 mA for efficient performance.
- Designed for industrial and commercial power rectification needs.
Product Description
Vishay VS-160MT120KPBF Bridge Rectifier Module provides reliable three-phase full-wave rectification with a peak reverse voltage of 1200 V and a substantial forward current of 200 A. Designed for industrial power electronics, this 6-pin panel mount module uses the INT-A-PAK package format for high thermal conductivity and excellent power volume ratio.
This rectifier module is equipped to handle peak non-repetitive forward surge currents up to 1.5 kA, ensuring robust transient performance in demanding environments. It operates efficiently within a temperature range from -40°C to 60°C, suitable for varied industrial settings.

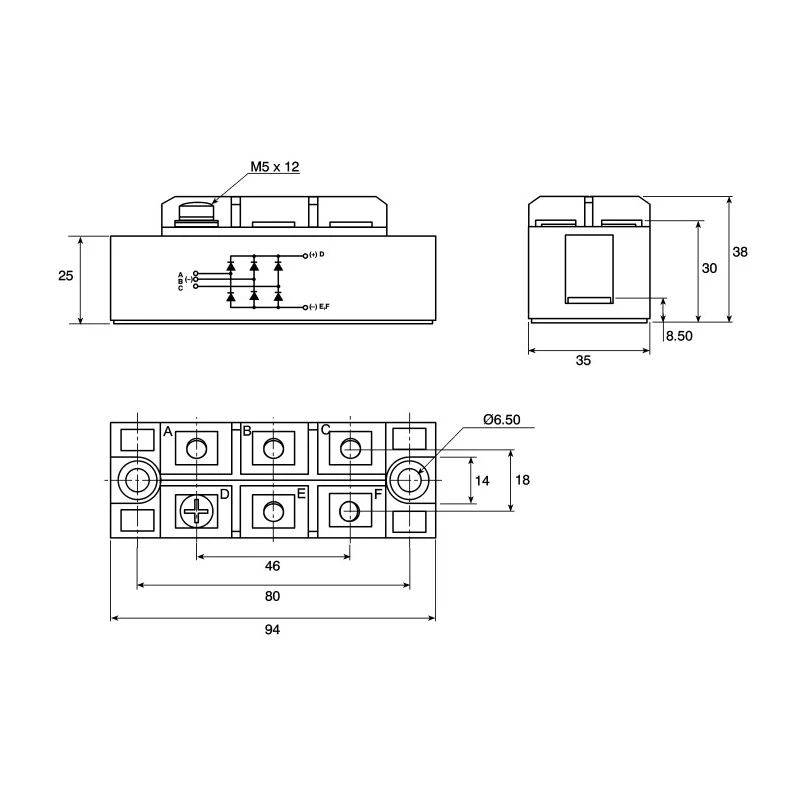

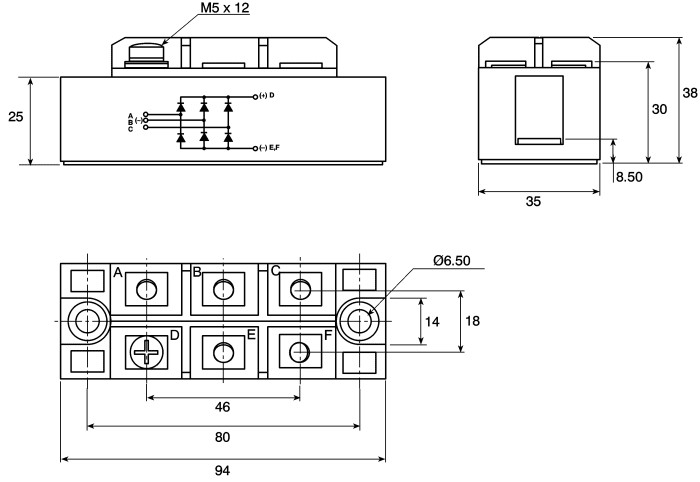

The module's electrically insulated case withstands isolation voltages up to 4000 Vrms, enhancing safety and system reliability. It features a compact form factor with overall dimensions of 94 mm length, 35 mm width, and 30 mm height, saving installation space without compromising performance.
The peak forward voltage of 1.49 V is optimized for efficient conduction, while a low peak reverse current of 10 mA minimizes leakage during operation. Its three-phase single configuration with six screw terminals makes it ideal for power conversion and rectification in industrial machinery and control systems.
Three-phase single configuration with 6-pin panel mount design. High forward current rating of 200 A. INT-A-PAK high thermal conductivity package. Wide operating temperature of -40°C to 60°C. Electrically insulated case rated for 4000 Vrms.
Compact dimensions: 94 mm x 35 mm x 30 mm. Peak non-repetitive surge current 1.5 kA. Peak forward voltage 1.49 V. Low peak reverse current of 10 mA. Reliable industrial power rectification.
This Vishay Bridge Rectifier Module is suitable for applications in power electronics, industrial automation, energy conversion, and other electrical systems requiring steady and efficient conversion of AC to DC power. It is built for durability and long service life under continuous operation conditions.
Explore more advanced semiconductor and power module options on EnvMart to meet your industrial automation and electronic components needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating is 200 A, ensuring robust operation in demanding applications.
The peak reverse voltage rating is 1200 V, making it suitable for high-voltage applications.
It operates efficiently within a temperature range from -40°C to 60°C, suitable for various industrial environments.
This model can handle a peak non-repetitive forward surge current of up to 1.5 kA, ensuring reliable performance during transient conditions.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height, allowing for compact installation.
It features a panel mount design with six screw terminals for easy installation and connection.
The peak forward voltage is 1.49 V, which helps reduce power loss during conduction.
The peak reverse current is 10 mA, which minimizes leakage during operation.
It uses the INT-A-PAK package type, which provides excellent thermal conductivity.
The electrically insulated case can withstand isolation voltages up to 4000 Vrms, enhancing safety and reliability.
It is suitable for applications in power electronics, industrial automation, and energy conversion, where efficient AC to DC power conversion is required.
It has a three-phase single configuration, making it ideal for power conversion and rectification in industrial machinery and control systems.
