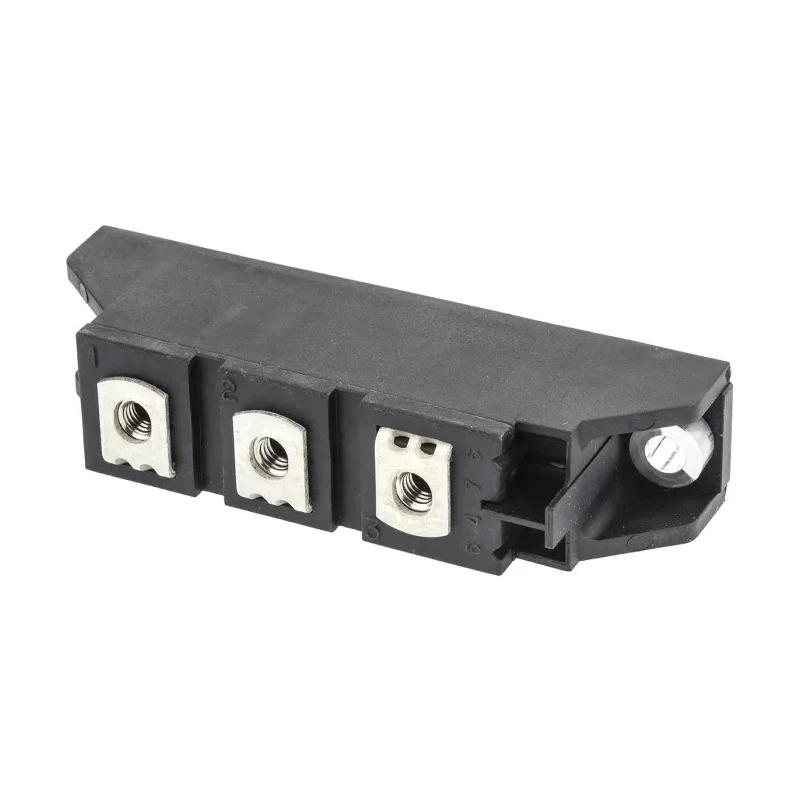

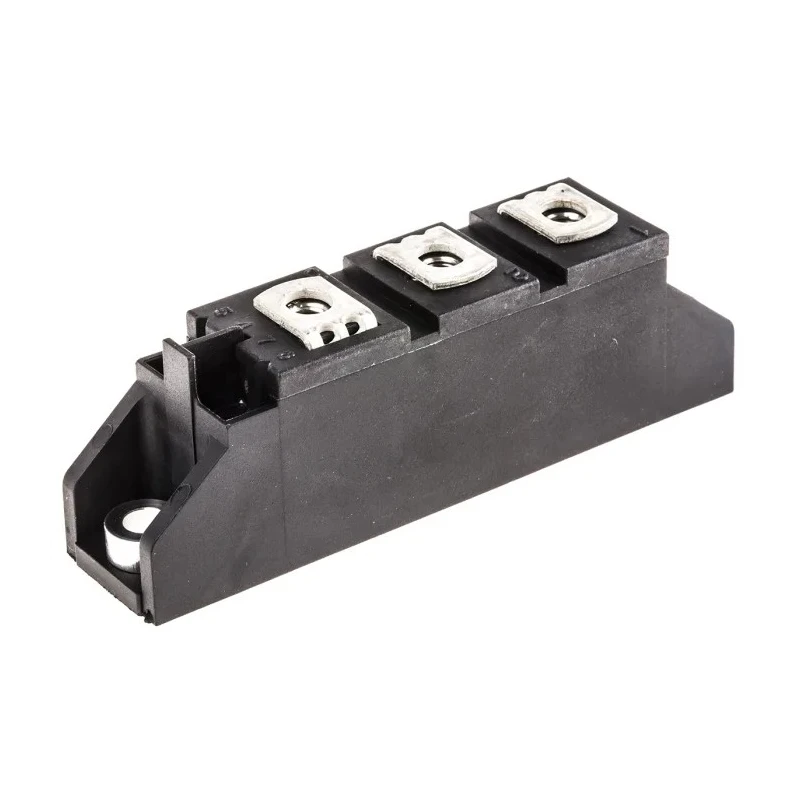

IXYS General Purpose 1600 V 95 A Diode 3-Pin TO-240 MDD56-16N1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 92mm |
| Model | MDD56-16N1B |
| Width | 20.8mm |
| Mount Type | Panel |
| Series | MDD56 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 95A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.51kA |
| Maximum Forward Voltage Vf | 1.48V |
| IXYS 1600 V 120 A Diode General Purpose 3-Pin TO-240 MDD95-16N1BBrand | IXYS |
| Semikron 800V 45A, Dual Silicon Junction Diode, 3-Pin SEMIPACK®1 SKKD 46/08Brand | Semikron |
Key Features
- Operates efficiently up to 150°C maximum temperature.
- Features low forward voltage of 1.48 V ensuring energy efficiency.
- Supports high peak non-repetitive surge current rating of 1.51 kA.
- Designed for panel mount applications with a 3-pin configuration.
- Robust construction measures 92 mm length, 30 mm height, and 20.8 mm width.
- Provides reliable performance with a diode configuration in series.
- Peak reverse current is restricted to 10 mA enhancing reliability.
- Suitable for industrial electronics and power management systems.
Product Description
The IXYS MDD56-16N1B is a high-performance general purpose diode designed for semiconductor applications requiring 1600 V peak reverse repetitive voltage and 95 A maximum continuous forward current. Encased in a TO-240 package with a 3-pin layout, this diode supports demanding industrial and power electronics environments.
It features a low maximum forward voltage of 1.48 V, minimizing power loss under load. The device can withstand peak non-repetitive forward surge currents up to 1.51 kA and operates reliably within a temperature range from -40°C to 150°C. Its physical dimensions of 92 mm length, 30 mm height, and 20.8 mm width make it suitable for panel mounting in robust assemblies.
Constructed with a series diode configuration, the MDD56-16N1B ensures stable rectification in electronic circuits and power supplies. The diode exhibits a peak reverse current of only 10 mA, contributing to low leakage and high efficiency. This module is ideal for applications in industrial manufacturing, power conversion, and other electronics requiring durable and efficient rectifiers.
Maximum continuous forward current: 95 A. Peak reverse repetitive voltage: 1600 V. Peak non-repetitive forward surge current: 1.51 kA. Maximum forward voltage: 1.48 V. Operating temperature range: -40°C to 150°C. Package type: TO-240, panel mount.
Dimensions: 92 mm × 20.8 mm × 30 mm. 3-pin configuration for reliable installation.
This diode is UL recognized and meets industrial standards, ensuring dependable operation in challenging environments. It is suitable for use in power supplies, industrial drive systems, and other electrical equipment requiring robust rectification performance.
Explore more IXYS semiconductor components and related products on EnvMart to support your electronics design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 95 A.
This model has a peak reverse repetitive voltage rating of 1600 V.
It can withstand a peak non-repetitive forward surge current of up to 1.51 kA.
The dimensions are 92 mm in length, 30 mm in height, and 20.8 mm in width.
The maximum operating temperature is 150°C.
The minimum operating temperature is -40°C.
The maximum forward voltage drop is 1.48 V.
It is designed for panel mount applications.
This diode is constructed in a series configuration.
The peak reverse current is limited to 10 mA.
The diode is housed in a TO-240 package type.
It is suitable for applications in industrial manufacturing, power conversion, and power management systems.
