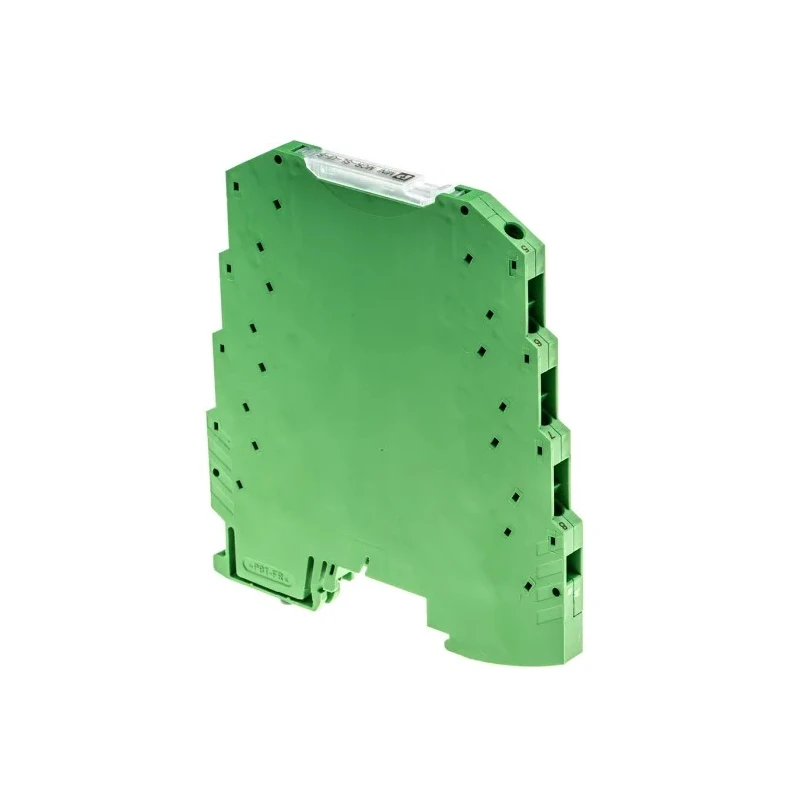

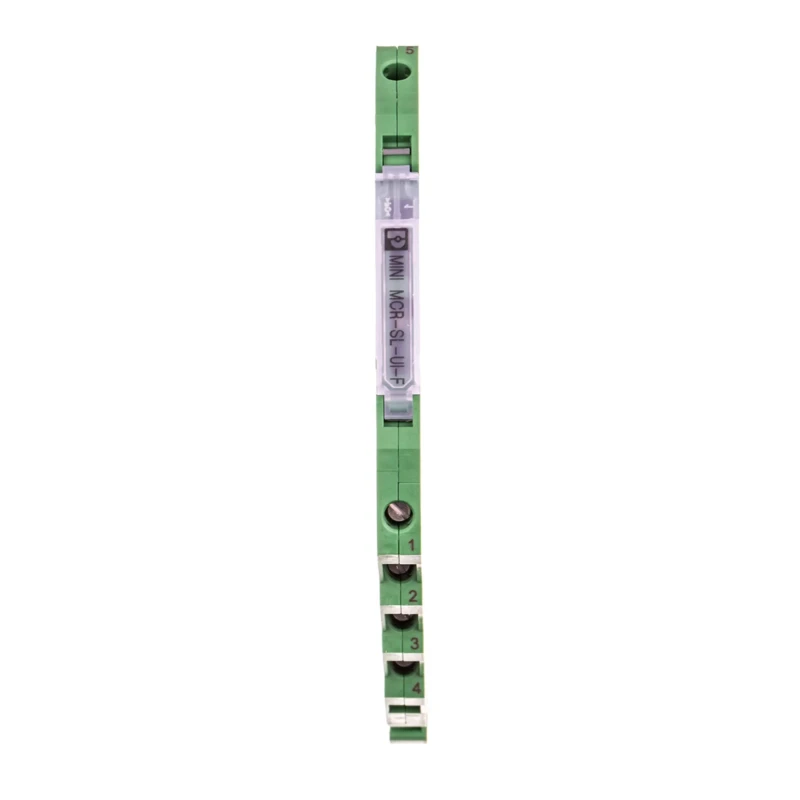

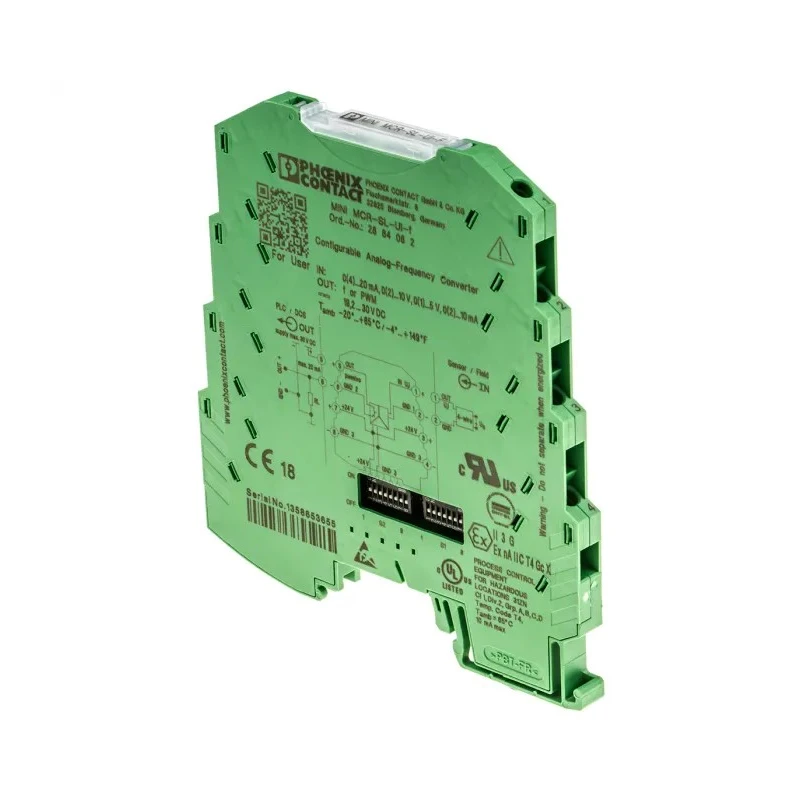

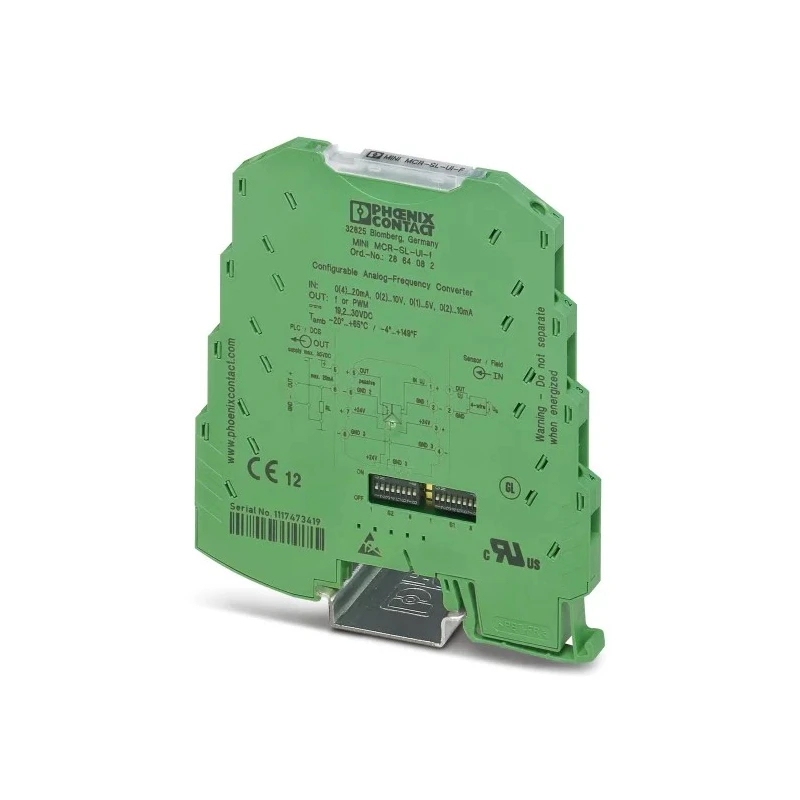

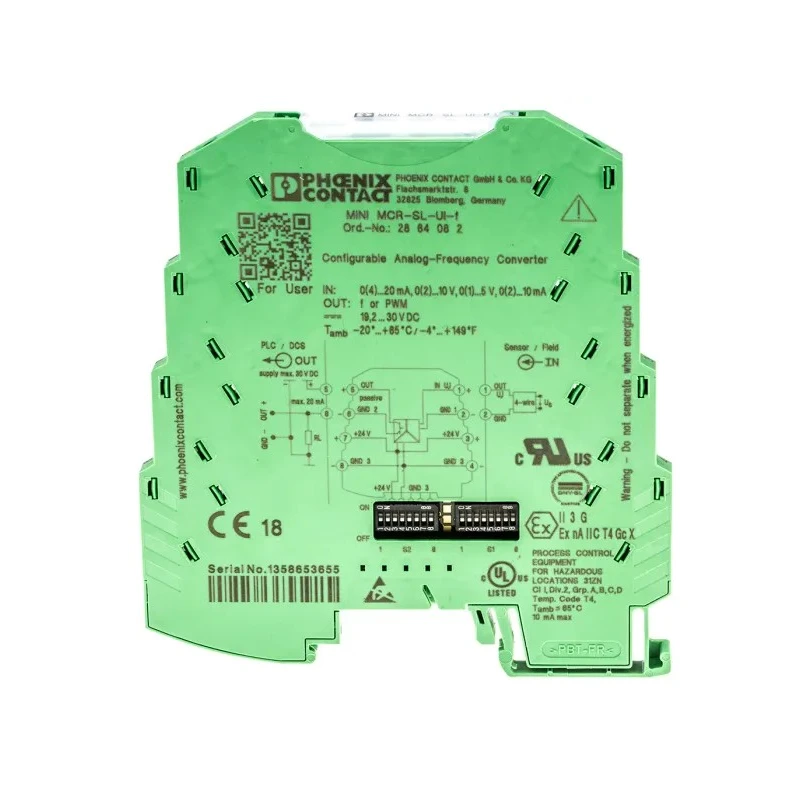

Phoenix Contact MINI MCR Series Signal Conditioner Current/Voltage Input Frequency Output 20V dc 30V dc Supply 2864082
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | Input, Frequency Output, 20V dc, 30 V dc Supply, C, RS Stock No |
| Brand | Phoenix Contact |
| Model | 2864082 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | PWM: 5 → 95 %, 0 Hz → 10 kHz |
| Input Range | 0 → 10 V, 0 → 20 mA |
| Supply Voltage | 20, 30V dc |
| Hazardous Area Certification | C, B, Groups A, Div 2, Class I, D T4 |
| Input Signal Type | Current/Voltage |
| Output Signal Type | Frequency |
| Signal Conditioner Type | Analogue Frequency Transducer |
| PWM | 5 → 95 %, 0 Hz → 10 kHz |
| Output Range PWM | 5 → 95 %, 0 Hz → 10 kHz |
Key Features
- Supports input voltage range of 0 to 10 V and current range of 0 to 20 mA.
- Outputs frequency within PWM range of 5% to 95%, spanning 0 Hz to 10 kHz.
- Compact dimensions measuring 6.2 mm width, 93.1 mm height, and 101.2 mm depth facilitate space-efficient mounting.
- Durable IP20 rating protects against dust and solid objects above 12 mm in size.
- Operates reliably across a wide temperature range from -20°C to 65°C for diverse industrial environments.
- Equipped with short-circuit and reverse polarity protection to ensure device and system safety.
- Integrates easily with DIN rail mount and screw-type terminals for secure installation.
- Meets multiple international standards and approvals including cULus, CE, UKCA, UL 508, DNV GL, and others.
Product Description
Phoenix Contact 2864082 MINI MCR Series Signal Conditioner is a precision analogue frequency transducer designed for industrial applications requiring current and voltage signal conditioning with frequency output. Powered by 20 V dc or 30 V dc supply, it converts input signals of 0 to 10 V or 0 to 20 mA into a frequency output via PWM ranging between 5% and 95%, from 0 Hz up to 10 kHz.
This signal conditioner features compact dimensions (6.2 mm W x 93.1 mm H x 101.2 mm D) enabling efficient use of limited space within control panels. The robust IP20 rating affords protection against dust ingress and objects larger than 12 mm, making it safe for maintenance handling. It is built to operate reliably under harsh conditions with a temperature range from -20°C to +65°C.
Safety features include short-circuit and reverse polarity protections that safeguard connected equipment from electrical faults, minimizing potential downtime. The unit is mounted on a DIN rail secured by screw-type terminals, permitting quick and secure installation.
The series holds multiple international certifications including cULus Recognised, CE, UKCA, DNV GL, and UL 508 Listed, ensuring compliance with stringent industrial standards. Its single channel configuration suits applications in chemical processing plants, power generation, manufacturing, and various automation systems requiring dependable analogue to frequency signal conversion.
Input voltage range from 0 to 10 V and current range of 0 to 20 mA for flexible sensor integration. Frequency output with PWM adjustable from 5% to 95% and frequency range up to 10 kHz for precise control. Compact and slim design ideal for space-constrained setups.
Protection rating of IP20 guarantees safety and dust resistance. Operating temperature suitability from -20°C to 65°C for versatile deployment. Robust protections against short circuits and reverse polarity extend device longevity.
Simple DIN rail mounting with screw terminals for secure installation. Complies with multiple global standards and certifications for industrial use. Single channel model designed for various industrial signal conditioning scenarios.
Manufactured in Germany, ensuring superior build quality.
Ideal for industrial, laboratory, manufacturing, automation, chemical, and power generation environments, the Phoenix Contact MINI MCR Series 2864082 Signal Conditioner delivers reliable signal transformation with high accuracy and durability. Explore more Phoenix Contact signal conditioning solutions for your industrial automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range is from 0 to 10 V, and the current range is from 0 to 20 mA.
It outputs frequency within a PWM range of 5% to 95%, spanning from 0 Hz to 10 kHz.
This model has compact dimensions measuring 6.2 mm in width, 93.1 mm in height, and 101.2 mm in depth.
It operates reliably across a wide temperature range from -20°C to 65°C.
It is designed for DIN rail mounting and features screw-type terminals for secure installation.
It is equipped with short-circuit and reverse polarity protection to ensure the safety of the device and connected systems.
This unit meets multiple international standards and approvals including cULus, CE, UKCA, UL 508, and DNV GL.
It provides a frequency output, specifically designed as an analogue frequency transducer.
The supply voltage options for this signal conditioner are 20 V dc and 30 V dc.
It accepts both current and voltage input signals.
This model is configured as a single channel unit.
It is suitable for various industrial applications, including chemical processing, power generation, and manufacturing automation.
