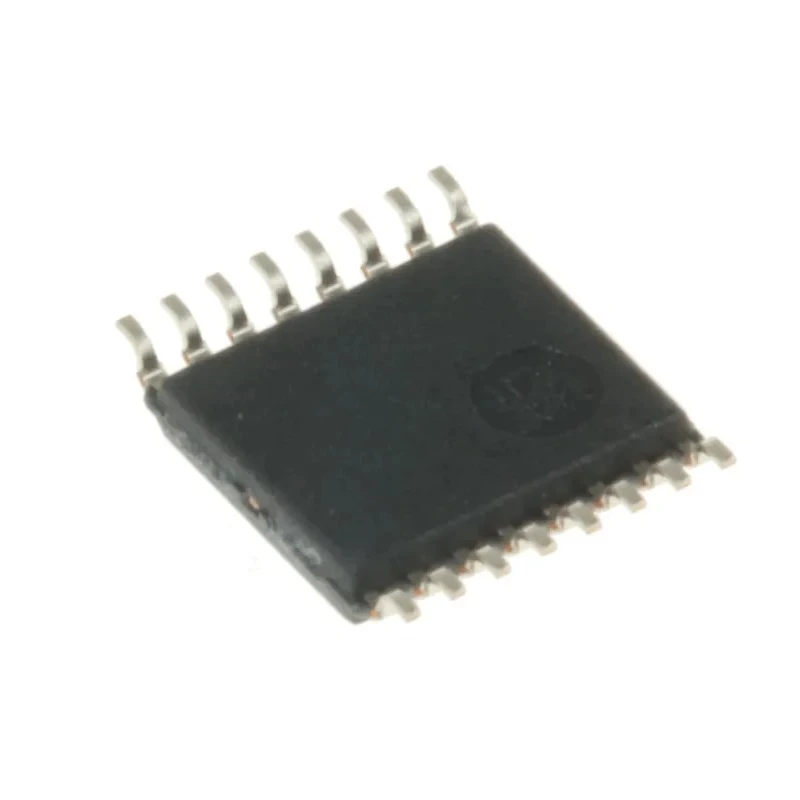

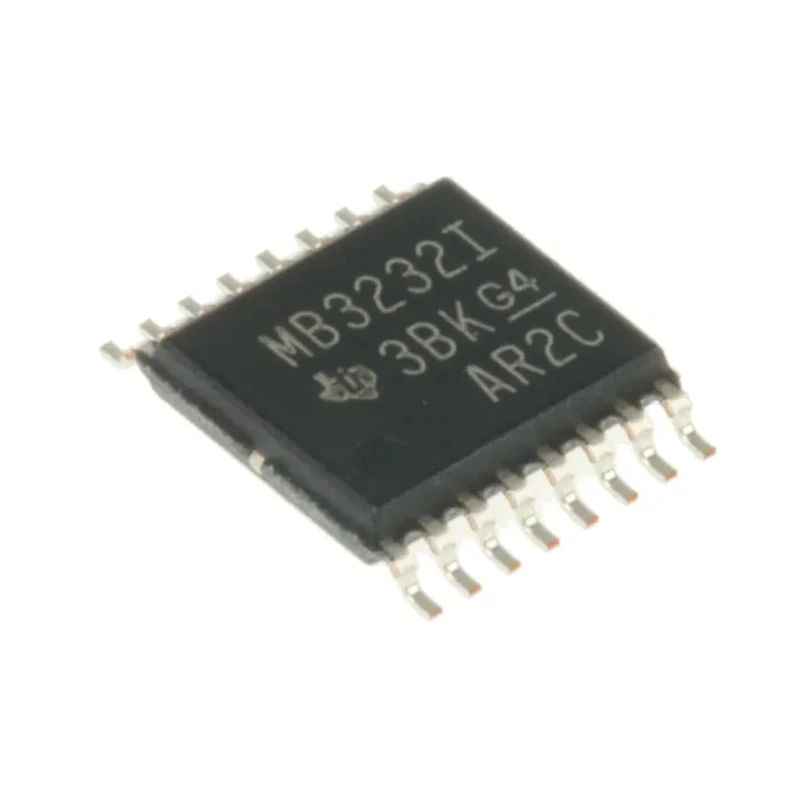

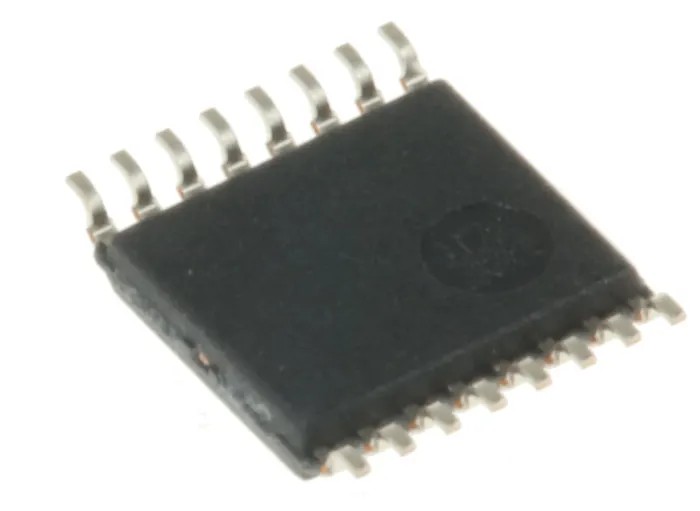

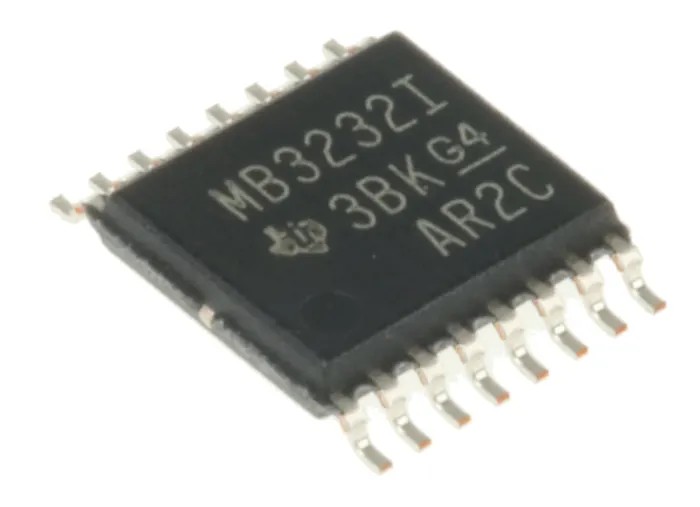

Texas Instruments RS-232 Line Transceiver Dual Driver & Receiver 3 - 5.5 V Supply, 16-Pin TSSOP MAX3232IPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MAX3232IPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MAX3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300μs |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Dual transceiver with two drivers and two receivers supporting RS-232 communications.
- Operates with supply voltage from 3 V minimum to 5.5 V maximum.
- Includes built-in charge pump circuitry for voltage generation.
- 16-pin TSSOP surface-mount package enables compact board layout.
- Guaranteed operation from - 40°C to +85°C for industrial reliability.
- Current consumption of 1 mA typical ensures low power operation.
- Supports data rates up to 1 Mbps meeting TIA/EIA-232-F standards.
- ESD protection up to ±15 kV Human Body Model safeguards against damage.
Product Description
Texas Instruments MAX3232IPW is a dual RS-232 line transceiver designed for reliable serial communication with integrated dual drivers and receivers. Packaged in a 16-pin TSSOP, it operates over a wide supply voltage range from 3 V to 5.5 V, making it suitable for various low-voltage applications requiring RS-232 interface compliance.
Featuring charge pump technology, the device generates the necessary RS-232 voltage levels from a single power supply, simplifying power management.
Designed to meet or exceed the TIA/EIA-232-F and ITU V.28 standards, the MAX3232IPW supports data rates up to 1 Mbps and includes robust ESD protection up to ±15 kV (Human Body Model) and ±8 kV (Contact Discharge), thereby enhancing device longevity and system reliability.
The industrial-grade operating temperature range of - 40°C to +85°C ensures dependable performance in harsh environments. Low quiescent supply current around 1 mA contributes to energy efficiency in battery-powered or energy-conscious designs.
Package dimensions of 1.2 mm height, 5.1 mm length, and 4.5 mm width allow for compact PCB layout where space is limited. The device's 16-pin surface-mount TSSOP package facilitates easy assembly with automated pick-and-place equipment.
Dual line drivers and receivers integrated for RS-232 signal handling. Single-ended input logic function with surface mount TSSOP packaging. Wide supply voltage range from 3 V to 5.5 V for flexibility in power design. Robust operating temperature from - 40°C to +85°C for industrial applications.
Low power consumption with typical 1 mA supply current. High ESD protection for enhanced device durability. Supports 1 Mbps communication speed for reliable data transfer. Compact 16-pin package suitable for dense PCB design.
No automotive standards compliance. Typical propagation delay of 300 μs at specified load capacitance.
This line transceiver is ideal for use in industrial, laboratory, and electronic communication equipment requiring reliable RS-232 interface solutions. Its robust electrical characteristics and industrial temperature range make it suitable for demanding environments such as factory automation, instrumentation, and control systems.
Explore more semiconductor components and interface ICs at EnvMart for comprehensive electronic solutions.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 3 V minimum to 5.5 V maximum.
This model supports data rates up to 1 Mbps, complying with TIA/EIA-232-F standards.
It is guaranteed to operate within a temperature range of -40°C to +85°C, suitable for industrial applications.
It is packaged in a 16-pin TSSOP surface-mount package, allowing for compact board layout.
The typical supply current for this unit is around 1 mA, ensuring low power operation.
It features ESD protection up to ±15 kV (Human Body Model) and ±8 kV (Contact Discharge).
The maximum propagation delay time is specified as 300 μs at the specified load capacitance.
This model uses a single-ended input logic function for its operation.
The dimensions are 1.2 mm in height, 5.1 mm in length, and 4.5 mm in width.
It is ideal for use in industrial, laboratory, and electronic communication equipment requiring reliable RS-232 interface solutions.
This unit functions as both a driver and receiver for RS-232 communication.
The country of origin for this product is India.
