| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 3.1mm |
| Model | 74LVC1G14GW-Q100,1 |
| Width | 1.7mm |
| Mount Type | Surface |
| Output type | CMOS |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6.5V |
| Logic Family | LVC |
| Logic Function | Inverter |
| Minimum Supply Voltage | -0.5V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 8.5ns |
| Maximum Low Level Output Current | 32mA |

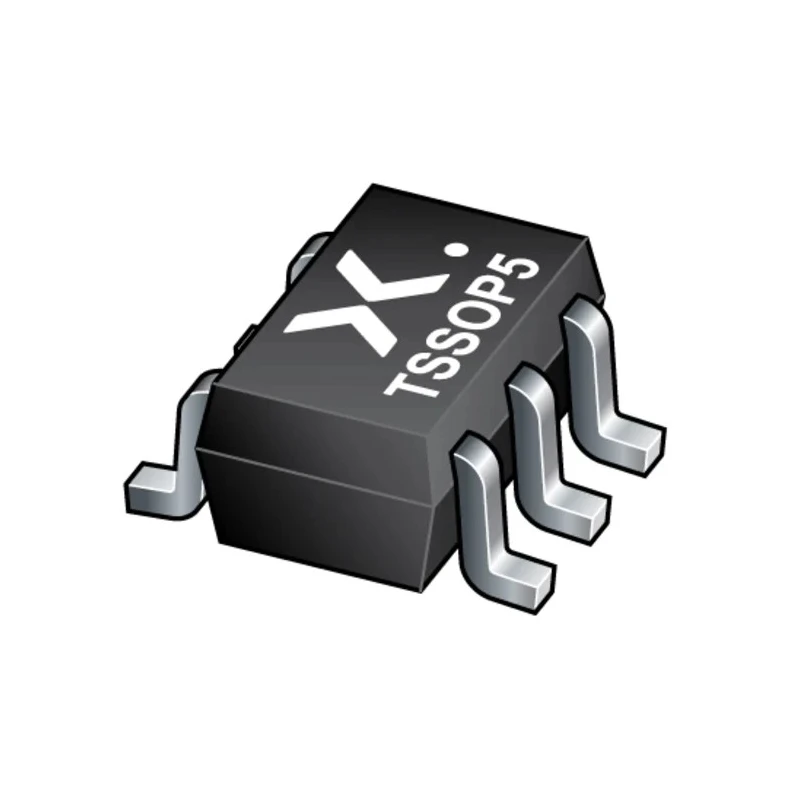

Nexperia 74LVC1G14GW-Q100,1 is a Schmitt trigger input CMOS inverter IC designed for precision and reliability in electronic systems. It features a single inverter element with integrated Schmitt trigger input to provide jitter-free output signals by converting slowly changing input signals.
This component is housed in a 5-pin TSSOP surface-mount package, measuring 3.1mm in length, 1.7mm in width, and 1mm in height, making it ideal for compact, high-density circuit boards.
The inverter operates over a wide supply voltage range of 1.65 V to 5.5 V and is compatible with mixed 3.3 V and 5 V logic systems. The logic family is LVC, ensuring high performance in low voltage CMOS applications.
The device offers high noise immunity and is suitable for automotive applications, certified to the AEC-Q100 standard (Grade 1). It supports ambient operating temperatures from -40°C to 125°C, making it robust for harsh environments.
Key electrical characteristics include a maximum propagation delay time of 8.5ns at capacitive load, maximum high-level output current of -4mA, and low-level output current of 32mA, supporting responsive and efficient signal processing.
Operates over a wide voltage range from 1.65 V to 5.5 V. Provides accurate signal inversion with Schmitt trigger input functionality. Compatible with 3.3 V and 5 V device interfaces for flexible system integration. Certified to automotive-grade AEC-Q100 ensuring reliability in critical applications.
Compact surface mount package ideal for high density PCB layouts. Wide temperature range supports industrial and automotive environments. Fast propagation delay ensures timely signal processing in digital circuits. High noise immunity enhances signal integrity in electrically noisy environments.
This CMOS inverter is suitable for electronics manufacturing, industrial automation, automotive systems, and other applications requiring robust logic inversion with Schmitt trigger input.
Explore more semiconductor and logic IC solutions at EnvMart to find components matching your requirement with certified quality and comprehensive specifications.
Explore more products in our Inverters ICs category.
