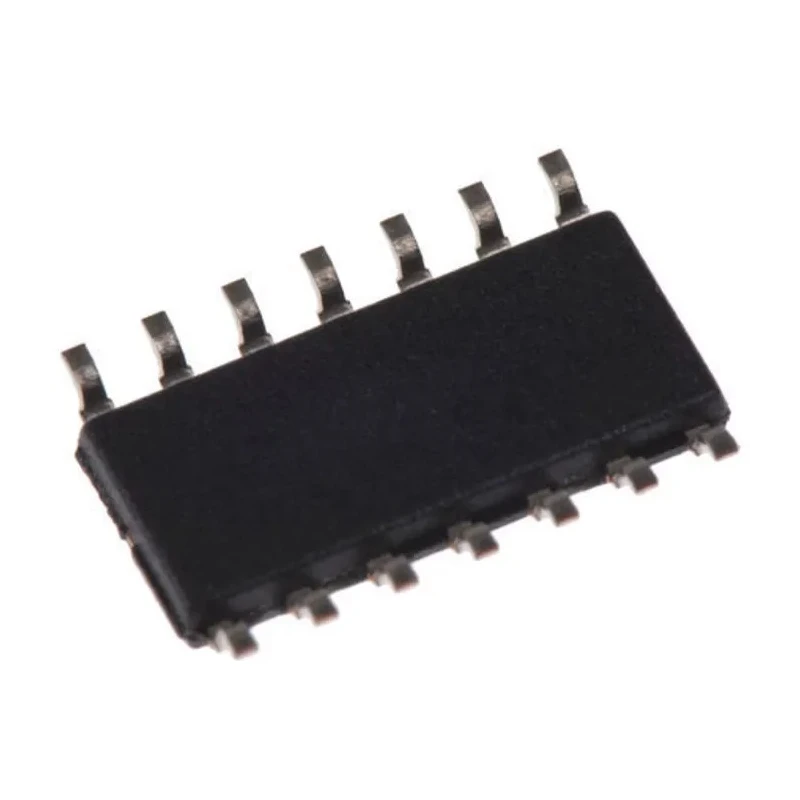

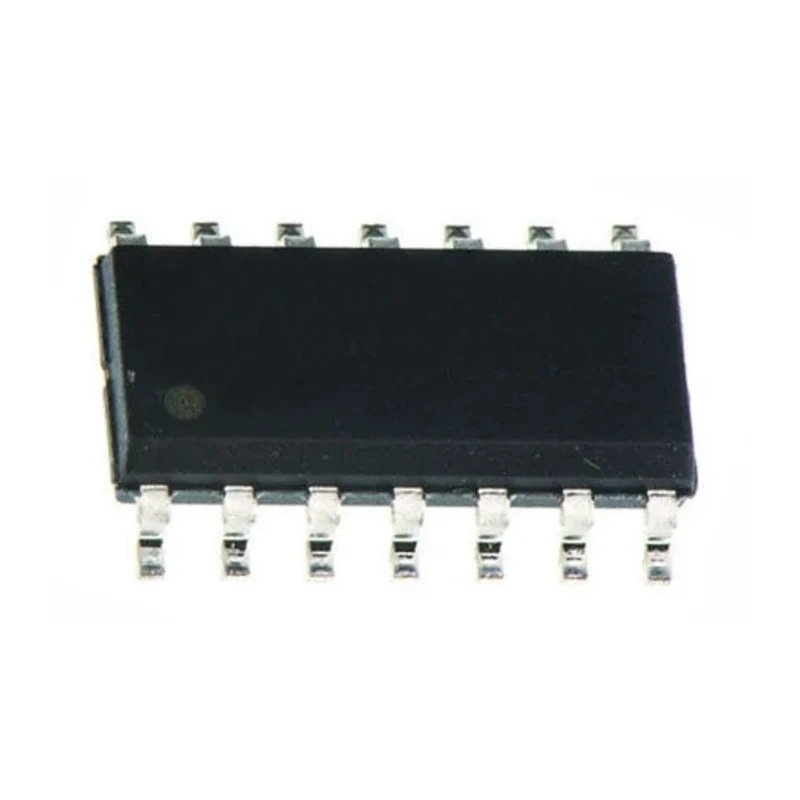

Nexperia Inverter Schmitt Trigger Logic IC 2 Elements 14-Pin SO-8 4.5-5.5V 74HC14D-Q100,118

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Inverter Schmitt Trigger Logic IC 2 Elements 14-Pin SO-8 4.5-5.5V 74HC14D-Q100,118

Name: Nexperia Inverter Schmitt Trigger Logic IC 2 Elements 14-Pin SO-8 4.5-5.5V 74HC14D-Q100,118
Brand: Nexperia
SKU: 205712
Price: 0.23 USD
Availability: InStock



Category Inverter ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	8.75mm
Model	74HC14D-Q100,118
Width	4mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	Single Ended
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	2
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	74HC
Logic Function	Inverter Schmitt Trigger
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	190ns
Maximum Low Level Output Current	5.2mA

Key Features

The device uses silicon gate CMOS technology for high operating speeds and low power consumption.
It features Schmitt Trigger inputs for improved noise immunity.
Operates within a supply voltage range of 4.5 to 5.5 volts.
Maximum propagation delay time is 190 nanoseconds at standard load capacitance.
It supports a wide operating temperature range from -40°C to 125°C.
The package is a surface-mount SO-8 type with 14 pins.
Current output levels include -5.2mA high-level and 5.2mA low-level output currents.
Automotive quality standard AEC-Q100 certified device.

Product Description

Nexperia 74HC14D-Q100,118 is a high-quality inverter Schmitt Trigger logic IC from the 74HC family. It includes two inverter elements and is packaged in a 14-pin SO-8 surface-mount form factor designed for compact and efficient PCB mounting.

Manufactured using silicon gate CMOS technology, this IC achieves high speed operating performance comparable to LSTTL logic families while ensuring low power consumption. It is compatible with CMOS input and output logic levels, making it suitable for a broad range of electronic applications.

The Schmitt Trigger input feature provides increased noise immunity and cleaner signal transitions, making it ideal for applications where signal integrity is crucial. The device operates reliably over a wide supply voltage range of 4.5 to 5.5 volts and is rated for maximum operating temperatures up to 125°C and a minimum of -40°C, supporting harsh industrial and automotive environments.

With maximum propagation delay of 190 nanoseconds, it is suitable for timing and logic applications requiring moderate speed. The current output levels are specified as -5.2 mA for high level and 5.2 mA for low level outputs, fitting standard logic interfacing needs.

This component complies with the automotive industry standard AEC-Q100, ensuring robustness and reliability in automotive designs. Features two inverter Schmitt Trigger elements per chip in the 74HC logic family. Surface-mount SO-8 package enables compact installation on PCBs.

Wide temperature and voltage operating ranges. High noise immunity due to Schmitt Trigger inputs. Compatible with CMOS inputs and outputs. Automotive grade AEC-Q100 certification. Applications include industrial electronics, automotive circuits, and signal conditioning.

Explore the Nexperia brand and 74HC series inverters further in the EnvMart semiconductor catalog for additional logic IC solutions.
