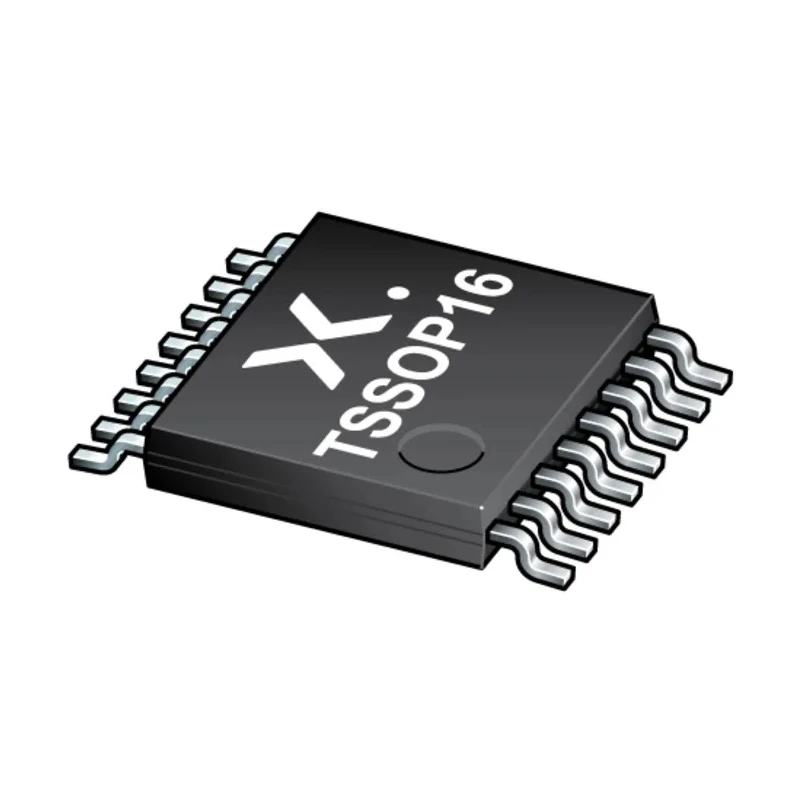

Nexperia Voltage Level Shifter Level Translator 8 Elements, 16-Pin TSSOP 74AVC4T245PW,118

Nexperia 74AVC4T245PW,118 Voltage Level Shifter Level Translator is a high-performance 8-element logic IC designed for bi-directional voltage translation in various electronic circuit applications.

This device supports a dual power supply configuration with voltages ranging from 0.8 V minimum to 3.6 V maximum, making it suitable for interfacing between different logic voltage levels. The compact 16-pin TSSOP surface-mount package allows for efficient PCB layout in space-constrained industrial and communication devices.

With a maximum propagation delay of 12 nanoseconds at specified load capacitance, this translator ensures fast signal shifting performance. The output stage supports 3-state logic with a low-level output current of 1.5 mA, ensuring effective signal driving capabilities while minimizing power consumption.

The device operates reliably over a wide temperature range from -40°C to 125°C, suitable for harsh industrial environments. It also features partial power-down mode via IOFF circuitry and surpasses latch-up immunity requirements with performance over 100 mA per JESD 78 Class II standards.

The 74AVC4T245 can function as a single 4-bit transceiver or split into two 2-bit transceivers, providing flexible voltage level shifting configurations. Its direction control (nDIR) and output enable (nOE) inputs offer controlled signal direction and enable/disable functionality.

Supports dual supply voltage ranging from 0.8 V to 3.6 V. Bi-directional 4-bit or two 2-bit transceiver operation. Maximum propagation delay of 12 ns ensures fast data transfer. 3-state outputs with 1.5 mA low-level output current.

Wide operating temperature range -40°C to 125°C for industrial use. Partial power-down mode via IOFF circuitry reduces power consumption. Surface mount TSSOP package for compact design.

This Voltage Level Shifter is ideal for use in electronic communications, computing devices, industrial control systems, and other applications requiring reliable level translation between different logic voltage domains.
