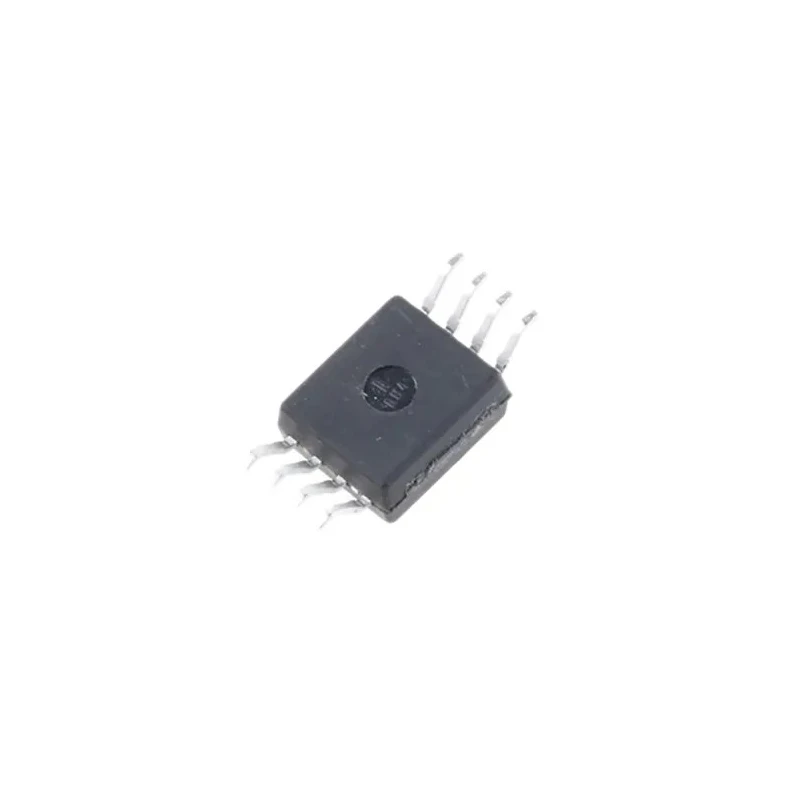

Broadcom 2-Channel Precision Miniature Isolation Amplifier 8-Pin SSOP 4.5-5.5V ACPL-C79A-000E

Broadcom ACPL-C79A-000E is a 2-channel precision miniature isolation amplifier housed in an 8-pin SSOP surface mount package operating within a supply voltage range of 4.5 to 5.5 volts. Its compact size, with a length of 5.85mm and a height of 3.18mm, makes it suitable for densely packed electronic assemblies.

This isolation amplifier features a low input offset voltage of 2 mV, ensuring precise signal measurements and transmission between isolated circuits. It supports a wide ambient operating temperature range from -40°C to 105°C, making it reliable for use in industrial and harsh environmental conditions.

The device is designed using sigma-delta modulator technology allowing current and voltage sensing in motor drives, power inverters, and general isolation circuits. It offers excellent common-mode rejection performance and built-in insulation for safety benefits.

Broadcom's ACPL-C79A-000E presents a trusted alternative to Hall Effect isolation amplifiers by providing high accuracy and miniature form factor ideal for industrial automation, power electronics, manufacturing, and electrical test & measurement applications.

Operates between 4.5V and 5.5V supply voltages. 2 isolation channels for simultaneous signal isolation. Compact 8-pin SSOP surface mount package. 2 mV input offset voltage ensures measurement accuracy. Wide temperature range from -40°C to 105°C supports harsh environments.

Precision isolation amplifier technology with high common mode rejection. Suitable for industrial motor drive and inverter voltage sensing circuits. Ideal alternative to Hall Effect amplifiers for power converter applications.

Supplied in tube packaging for manufacturing insertion. Explore the extensive category of Isolation Amplifiers on EnvMart to find compatible electronics components and amplify your industrial designs with trusted Broadcom quality.
