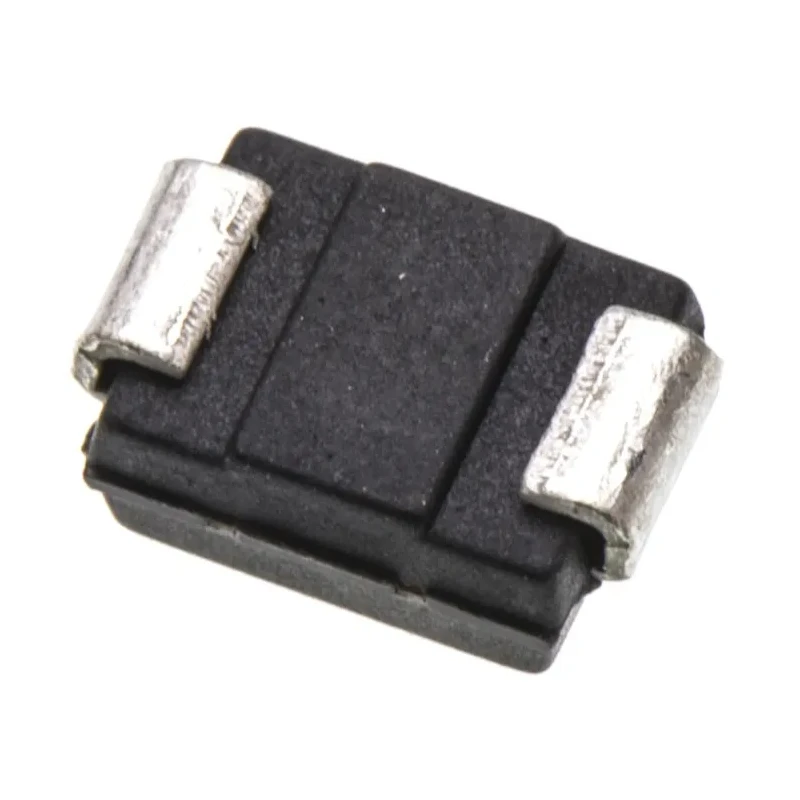

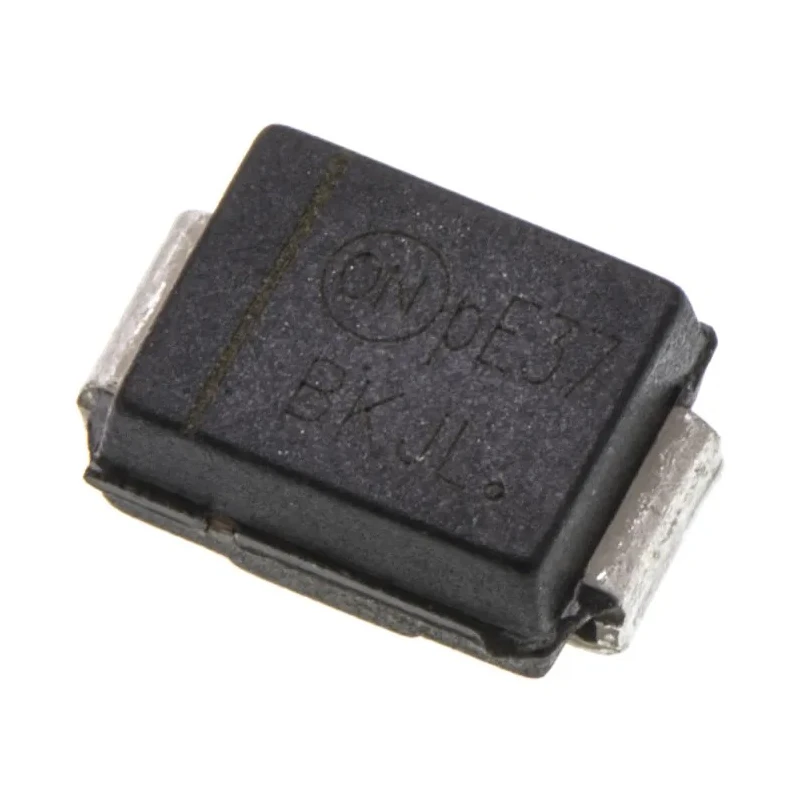

onsemi 40 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA MBRS2040LT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS2040LT3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 800μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 430mV |
| Nexperia 40 V 2 A Diode Schottky 2-Pin SOD-128 PMEG4020EP,115Brand | Nexperia |
| onsemi 30V 2A, Schottky Diode, 2-Pin DO-214AA SBRS8130LGBrand | ON Semiconductor |
Key Features
- The diode offers a maximum continuous forward current of 2 A.
- Maximum reverse repetitive voltage rating of 40 V ensures robust operation.
- Forward voltage drop is minimal at 430 mV for efficient power usage.
- Peak non-repetitive forward surge current is rated at 70 A.
- Operating temperature ranges from -55°C to 125°C for diverse environments.
- The diode configuration is single with 2 pins for straightforward PCB mounting.
- Pinout and package dimensions support compact design with length of 4.32 mm, width of 3.56 mm, and height of 2.13 mm.
- Features lightweight epoxy molded case with Pb-free construction for environmental compliance.
Product Description
onsemi MBRS2040LT3G Schottky diode is a surface mount discrete semiconductor device engineered for low voltage and high frequency rectification applications. It features a 2-pin DO-214AA package offering space-saving advantages in compact electronic assemblies.
This diode supports a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 40 V, making it ideal for use in power supplies, polarity protection, and freewheeling applications across industrial and automotive sectors.
Its low forward voltage drop of 430 mV improves system efficiency by minimizing conduction losses. The peak non-repetitive surge current capability of 70 A allows for high transient handling during switching and power surges.
The device operates reliably across a wide temperature range from -55°C up to 125°C and is housed in an epoxy molded case that is lightweight at approximately 11.7 mg, facilitating automated board assembly. This diode is Pb-Free and RoHS compliant.
Matched to automotive quality standards through AEC-Q101 qualification, MBRS2040LT3G underpins automotive and industrial electronics requiring dependable, high-performance Schottky barrier diode solutions.
The diode minimizes forward voltage drop and reverse current leakage for efficient power conversion. Compact package dimensions enable use in space-constrained electronics. Wide temperature and high surge current ratings ensure robustness under demanding conditions.
Surface mount design facilitates automated PCB assembly for manufacturing efficiency. Pb-free lead finish supports environmentally responsible electronics manufacturing. Suitable for industrial, automotive, telecommunications, and power management applications requiring a reliable Schottky rectifier diode.
Browse EnvMart’s extensive semiconductor and discrete diode categories for compatible components and tools.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A.
It has a peak reverse repetitive voltage rating of 40 V.
The dimensions of the DO-214AA package are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
The forward voltage drop is minimal at 430 mV.
The peak non-repetitive forward surge current is rated at 70 A.
The operating temperature range is from -55°C to 125°C.
This diode features a surface mount configuration.
The diode has a pin count of 2.
Yes, it is matched to automotive quality standards through AEC-Q101 qualification.
The peak reverse current is rated at 800 μA.
This model is suitable for use in power supplies, polarity protection, and freewheeling applications across industrial and automotive sectors.
The diode is housed in a lightweight epoxy molded case that is Pb-free and RoHS compliant.
