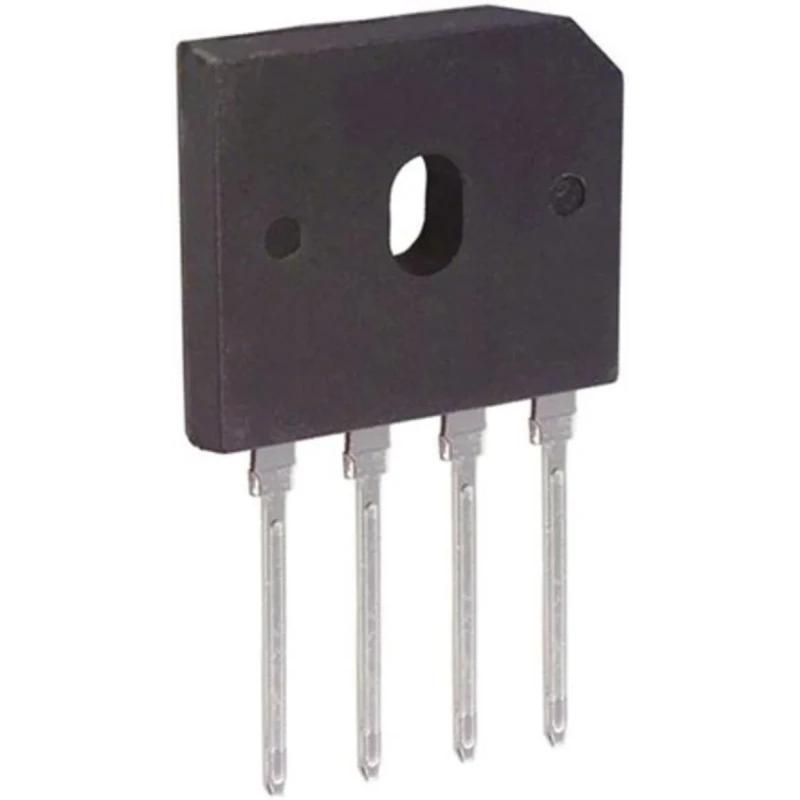

onsemi Bridge Rectifier 600 V 200 A, 4-Pin Single Through Hole GBU8J

Free Delivery in India | Lowest Global Shipping Charges

onsemi Bridge Rectifier 600 V 200 A, 4-Pin Single Through Hole GBU8J

Name: onsemi Bridge Rectifier 600 V 200 A, 4-Pin Single Through Hole GBU8J
Brand: onsemi
SKU: 136061
Price: 2.21 USD
Availability: InStock



Category Bridge Rectifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.56mm
Length	22.3mm
Model	GBU8J
Width	18.8mm
Mount Type	Through Hole
Series	GBU8J
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V
HY Electronic Corp Bridge Rectifier, 600 V 220 A, 4-Pin SingleBrand	HY Electronic Corp

Key Features

Rated for peak reverse repetitive voltage of 600 volts ensuring robust performance.
Allows a forward current of 8 amperes suitable for various applications.
Features a peak non-repetitive forward surge current capability of 200 amperes for transient tolerance.
Designed with a compact 4-pin single configuration for easy PCB integration.
Operates in a wide temperature range from -55°C to 150°C for versatility.
Encapsulated in a GBU package type ensuring secure and stable mounting.
Physical dimensions include length of 22.3 mm, width of 18.8 mm, and height of 3.56 mm.
Exhibits low peak forward voltage of 1 volt for efficient power handling.

Product Description

onsemi GBU8J Bridge Rectifier 600 V 200 A, 4-Pin Single is a high-quality semiconductor device designed for reliable AC to DC conversion in electronic circuits. It features a single-phase bridge rectifier configuration with 4 pins, suitable for through-hole PCB mounting. The GBU series package provides a sturdy and compact housing with excellent thermal and electrical properties.

This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 600 volts and a forward current (If) of 8 amperes, enabling it to handle demanding electrical loads efficiently. It is capable of delivering a peak non-repetitive forward surge current (Ifsm) of 200 amperes, making it robust against transient surges.

Operating over a temperature range from -55°C to 150°C, this rectifier is suitable for industrial, automotive, and electronic system applications requiring durability and stability under various environmental conditions. The low peak forward voltage (Vf) of 1 volt and minimal peak reverse current (Ir) of 5 microamperes contribute to minimized power loss and enhanced efficiency.

The device's dimensions - 22.3 mm in length, 18.8 mm in width, and 3.56 mm in height - allow for compact integration in power supply units, chargers, and other rectification circuits. The through-hole mount type simplifies installation on printed circuit boards, ensuring secure mechanical stability.

Rated peak reverse repetitive voltage: 600 V. Forward current: 8 A. Peak forward surge current: 200 A. Operating temperature range: -55°C to 150°C. Package type: GBU for through-hole mounting. Pin count: 4 with single-phase configuration.

Dimensions: 22.3 mm length, 18.8 mm width, 3.56 mm height. Low forward voltage drop of 1 V. UL approved for safety assurance.

This Bridge Rectifier is widely used in electronic, industrial, and power conversion systems where efficient and reliable AC to DC conversion is critical. Its robust construction and electrical characteristics make it ideal for use in power supplies, motor drives, battery chargers, and other semiconductor applications.
