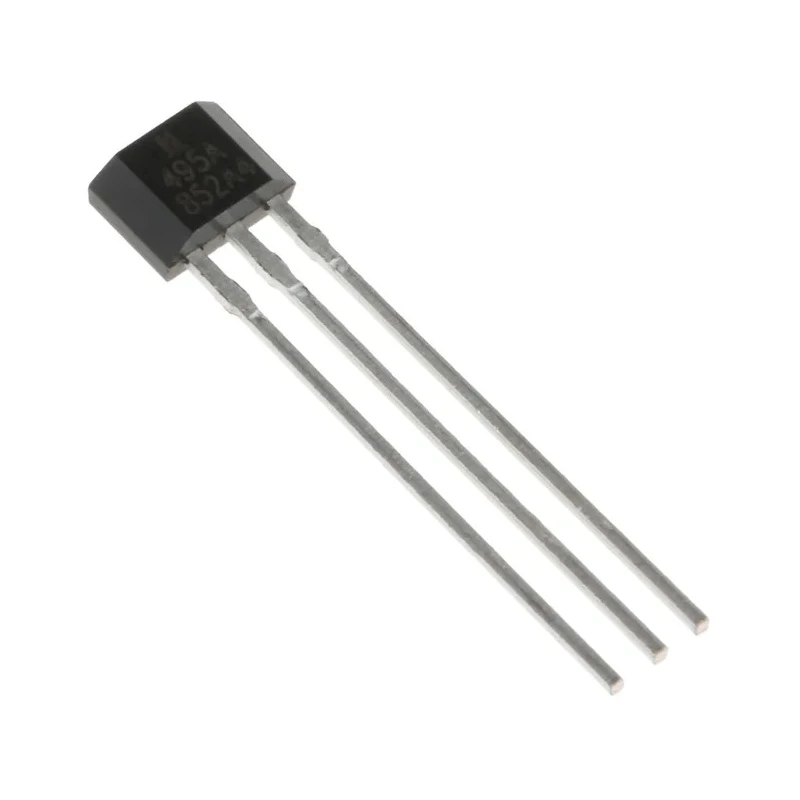

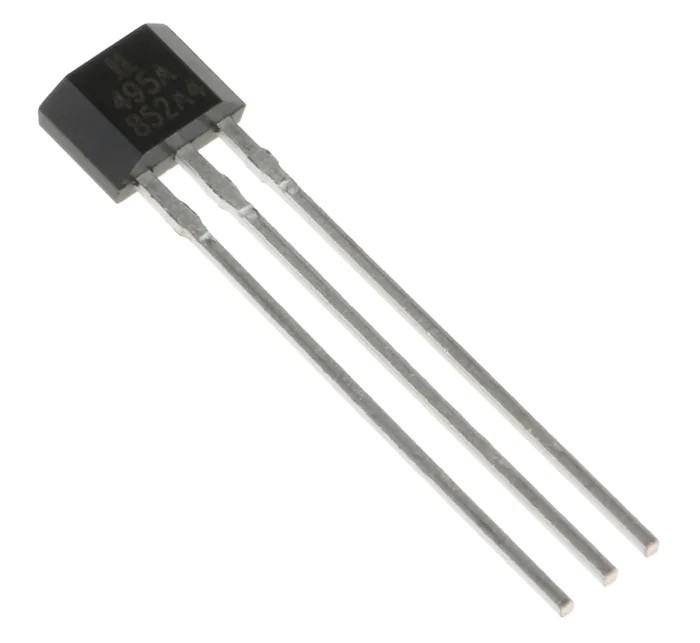

Honeywell Hall Effect Sensor Surface Mount Ratiometric Output Flat Body 10.5 V dc SS495A

Honeywell SS495A Hall Effect Sensor is a surface mount device with a flat body design, offering precise contactless magnetic field detection through ratiometric analogue output. It operates with supply voltage up to 10.5 V dc and delivers a proportional output signal that scales with supply voltage changes, making it ideal for accurate position or field-strength measurements.

The device features a compact footprint with dimensions 4.06 mm length, 3 mm width, and 1.6 mm depth, enabling flexible PCB layouts with tight stacking. Its low switching current of 1.5 mA reduces power consumption and load on electronics circuitry. The sensor’s wide operating temperature range from -40°C to 150°C ensures reliable performance under harsh industrial and automotive conditions.

Equipped with a surface mount 3-pin terminal configuration, the SS495A sensor allows efficient and standardized soldering assembly on printed circuit boards. The ratiometric output characteristic makes it suitable for systems requiring scalable analogue signals proportional to supply voltage, supporting stable control and monitoring functions.

Common applications include rotary position sensing in motor controllers, proximity detection for industrial automation, contactless speed measurement for electromechanical drives, and magnetic field monitoring in sensor arrays. Its robustness in automotive environments supports use within temperature-critical control modules.

The sensor provides proportional ratiometric output with a 5 V supply voltage signal scaling. Maximum supply and operating voltage rating of 10.5 V dc ensures flexible circuit integration. Wide temperature tolerance from -40°C to 150°C suits diverse environments.

Surface mount with 3-pin terminals allows for automated PCB assembly processes. Low switching current of 1.5 mA minimizes power load on driving circuits. Compact flat body with low profile (1.6 mm depth) enables tight component stacking.

Designed for reliable contactless magnetic field detection in industrial systems.

Set your automation and sensing systems with the high-performance Honeywell SS495A Hall Effect Sensor for precise and dependable magnetic field detection. Explore our range of Hall Effect Sensors for additional options in the Electronics & Electricals category.
