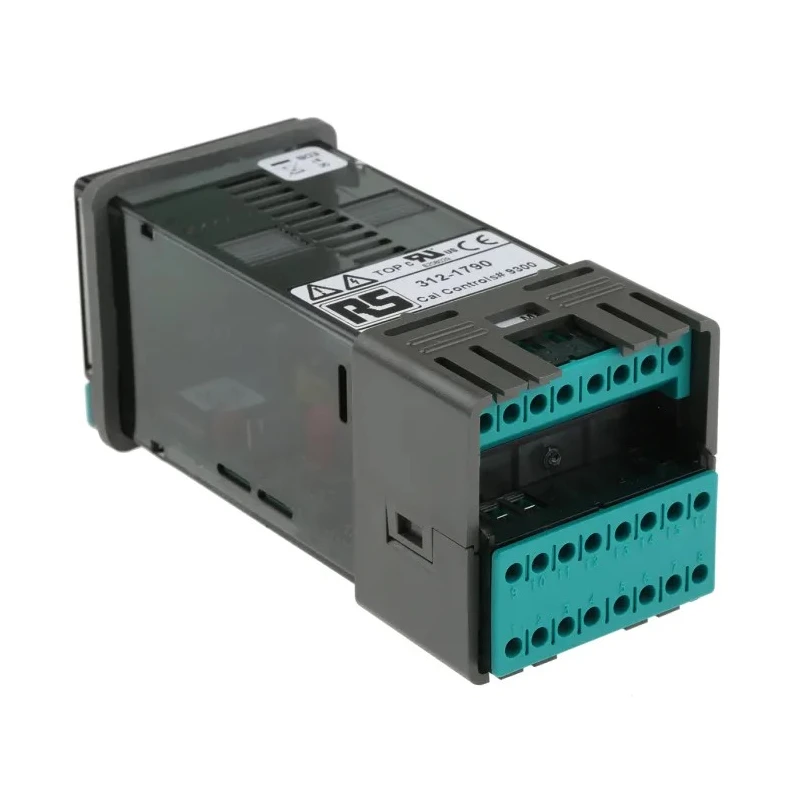

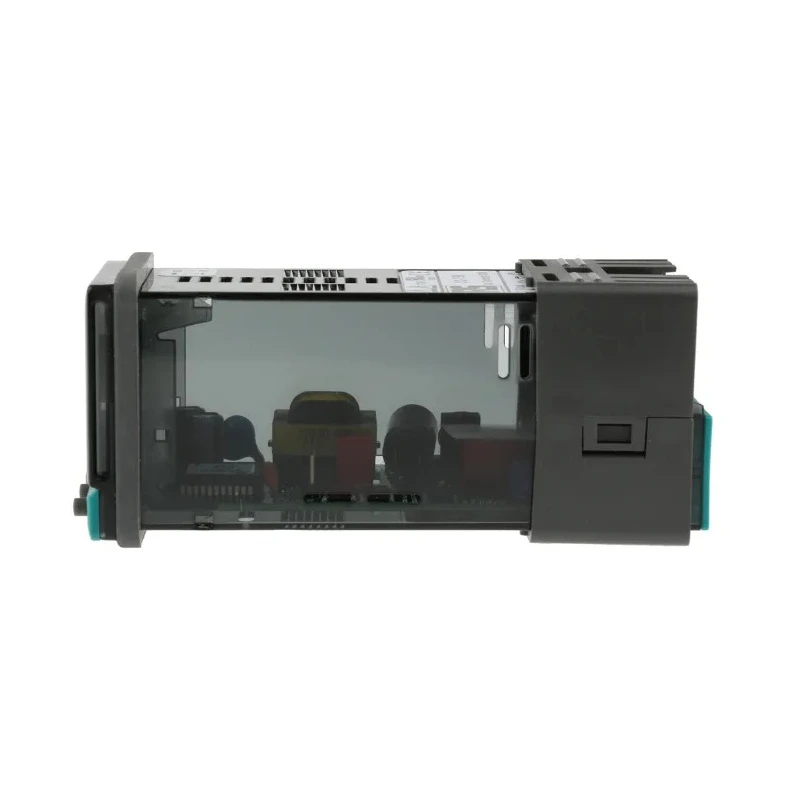

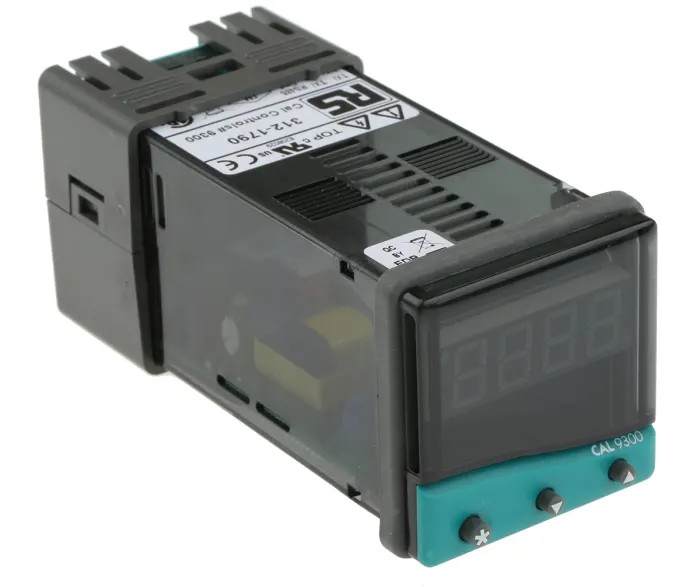

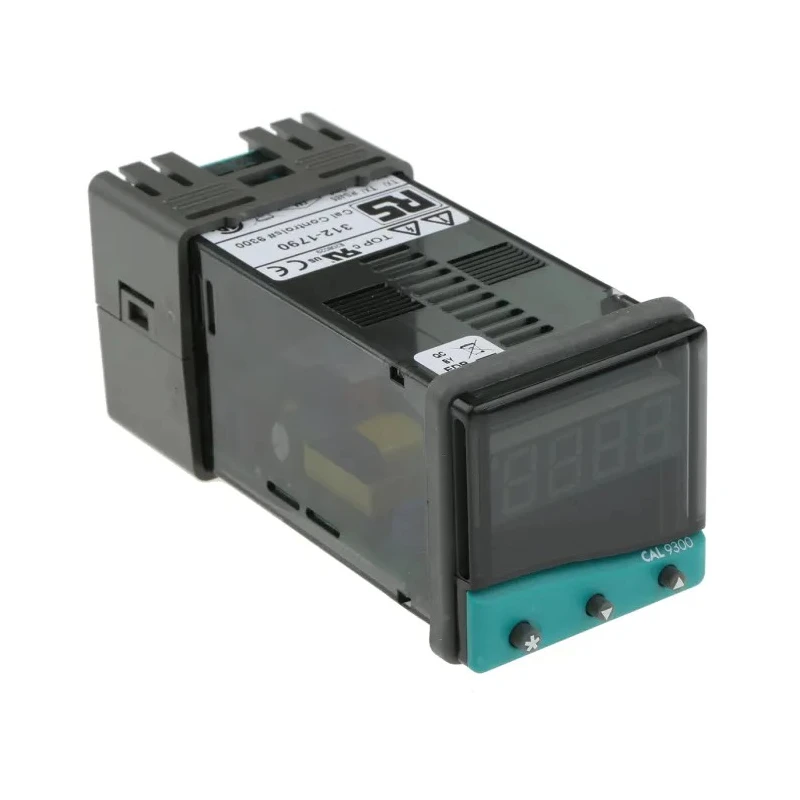

CAL 9300 Panel PID Temperature Controller, 2 Output Relay and SSD, 240V ac, LED Display, IP66, Panel Mount 930000000

CAL 930000000 Panel PID Temperature Controller is a high-performance control device designed for accurate temperature regulation in manufacturing, process control, and scientific environments. Featuring dual outputs, the first as a solid-state relay and the second an electromechanical relay, it delivers reliable operation in demanding applications. The robust design integrates a smoked impact-resistant fascia with rubberized buttons providing positive tactile feedback for ease of use.

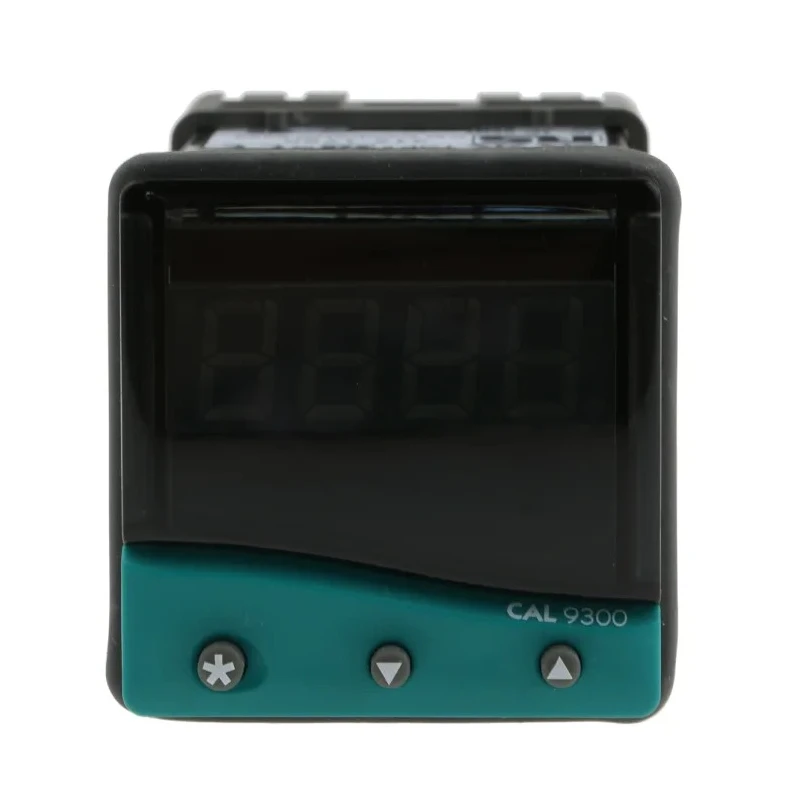

It supports a wide range of input types including 9 classes of thermocouples, 2-wire RTD sensors, and linear voltage inputs up to 50 mV. The controller is equipped with a bright 1 x 4 digit LED display accompanied by two output LEDs, facilitating clear process monitoring.

The device includes easy auto tuning functionality simplifying PID setup, and a menu-driven configuration system for flexible parameter adjustments. The unique DAC function helps minimize overshoot during temperature transitions, enhancing process stability.

It is designed for panel mounting with compact dimensions of 48 mm width and height (1/16 DIN size), and a panel depth of 106.7 mm. The rugged housing carries an IP66 rating protecting against dust and water ingress, making it suitable for industrial and outdoor installations.

This temperature controller operates on a maximum supply voltage of 240V AC with a maximum operating temperature of 50°C, suitable for diverse environmental conditions. With certifications from CE, cUL, FM, and UL, it meets rigorous safety and performance standards.

Common applications include automation in manufacturing industries and scientific laboratories requiring precise temperature management. The product is supported by CALgrafix software providing enhanced configuration and data logging capabilities.

Set contains one panel mount PID temperature controller with dual output types including relay and solid-state relay. Explore the full range of Temperature Controllers and advanced automation solutions available at EnvMart for industrial process control needs.

Equipped with a 1 x 4 digit LED display with 2 output indicator LEDs. Accepts inputs from 9 thermocouple classes, 2-wire RTD, and linear voltage ranging from 0 mV to 50 mV. Features easy-to-use auto PID tuning and menu-driven configuration.

Robust panel mounting with IP66 rated impact-resistant fascia and rubberized buttons. Compatible with CALgrafix configuration and data logging software. Supports single ramp/soak (dwell) programming for process control. Designed for demanding manufacturing and scientific applications.

Operates on a maximum supply voltage of 240V AC with a maximum current of 20mA. Certified to CE, UL, cUL, and FM standards ensuring industrial reliability. Compact size: 48 mm width and height (1/16 DIN) with 106.7 mm panel depth.
