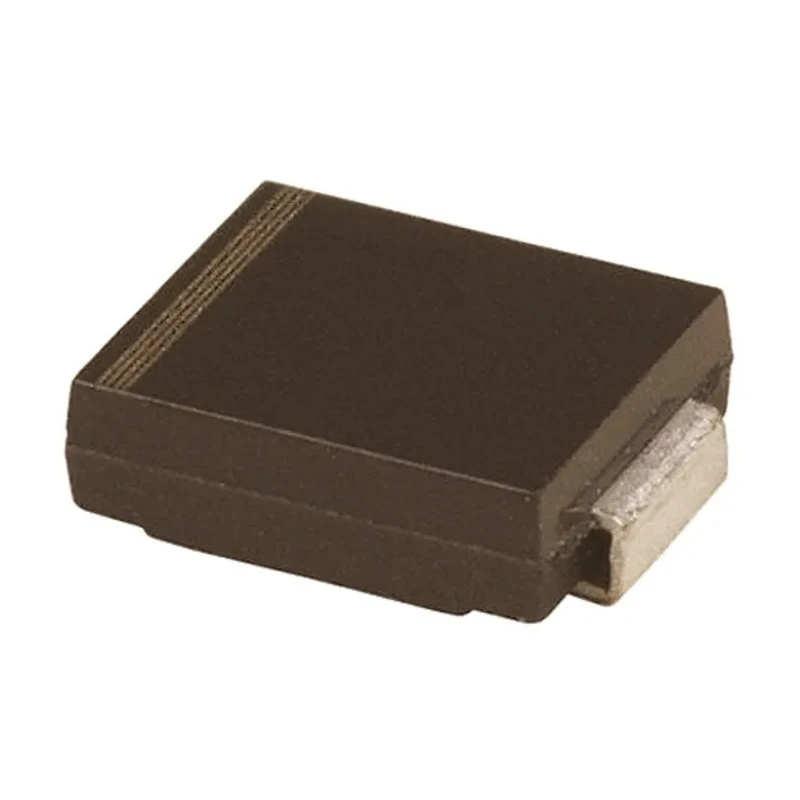

Vishay 20 V 8 A Schottky Diode, Surface Mount DO-214AB Package SL42-E3/57T

Free Delivery in India | Lowest Global Shipping Charges

Vishay 20 V 8 A Schottky Diode, Surface Mount DO-214AB Package SL42-E3/57T

Name: Vishay 20 V 8 A Schottky Diode, Surface Mount DO-214AB Package SL42-E3/57T
Brand: Vishay
SKU: 133087
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.42mm
Length	7.11mm
Model	SL42-E3/57T
Width	6.22mm
Mount Type	Surface
Series	SL42
Maximum Operating Temperature	125°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	35mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	470mV

Key Features

Schottky diode with low forward voltage drop of 470 mV for efficient power conversion.
Peak reverse repetitive voltage rating of 20 V ensures robust voltage handling.
Can withstand peak non-repetitive forward surge current of 150 A for transient conditions.
Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height.
Operates within temperature range from -55°C to 125°C for reliable performance.
Single diode configuration with 2 pins suitable for surface mount PCB assembly.
Maximum peak reverse current of 35 mA maintains leakage under control.
Designed and manufactured with standard DO-214AB (SMC) packaging.

Product Description

Vishay SL42-E3/57T is a high-performance Schottky diode designed to deliver efficient power rectification for electronic circuits. It features a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 20 V, making it suitable for applications requiring fast switching and low forward voltage drop.

The diode is housed in a compact DO-214AB (SMC) surface mount package measuring 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, enabling space-efficient integration on PCBs. Its single diode configuration and 2-pin design facilitate easy mounting and reliable electrical connectivity.

Operating across a wide temperature range of -55°C to 125°C, the SL42-E3/57T diode ensures robust performance under diverse environmental conditions. It exhibits a maximum forward voltage of 470 mV, minimizing power loss during conduction phases.

The device can tolerate peak non-repetitive forward surge currents up to 150 A, providing resilience against transient overloads. A peak reverse current of 35 mA maintains diode integrity under reverse voltage stress.

Schottky rectifiers such as this Vishay diode are essential in electronics manufacturing, power management modules, and circuits where fast switching with minimal energy dissipation is critical. Typical industrial, laboratory, and commercial uses include power supplies, DC-DC converters, and voltage clamping circuits.

Low forward voltage drop enhances energy efficiency. Compact SMC packaging supports high-density PCB designs. Wide operation temperature range ensures versatility. High peak surge current capacity protects against transient spikes.

Reliable performance in power electronics and consumer devices. Explore more Vishay electronic components and semiconductor solutions at EnvMart for your industrial and electronics assembly requirements.
