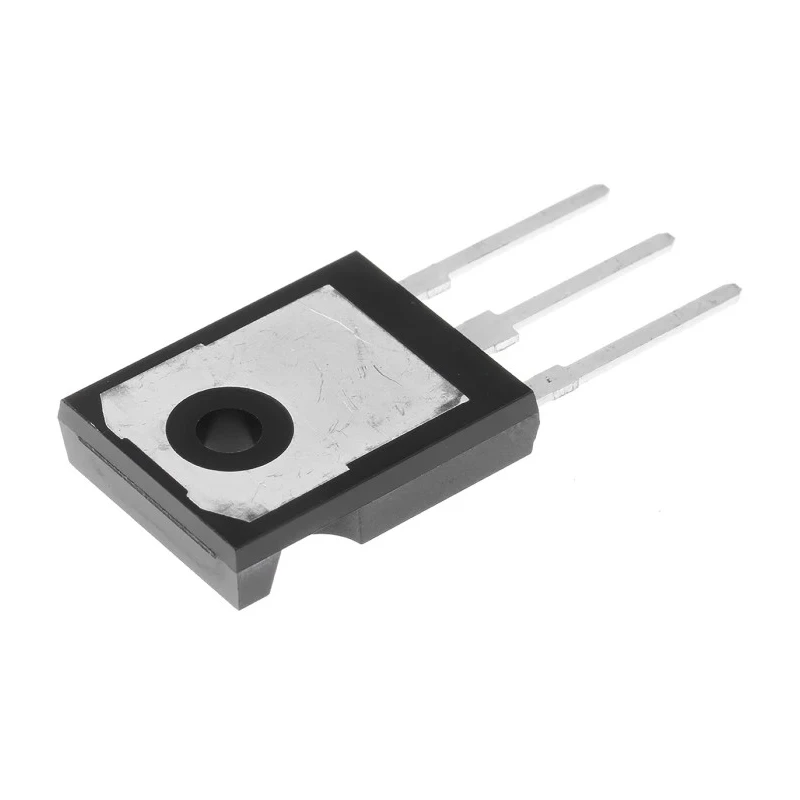

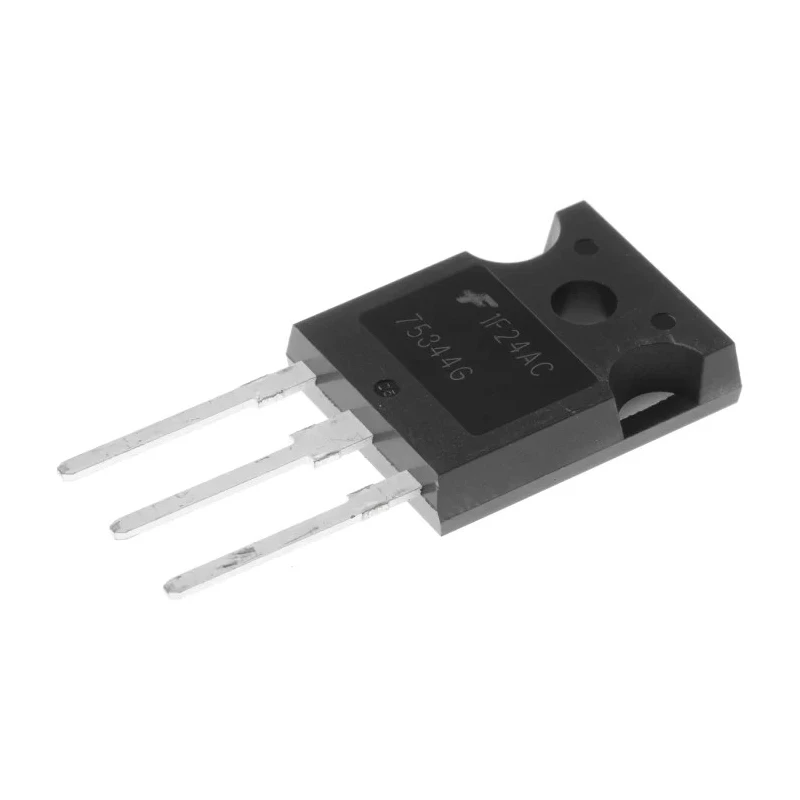

onsemi UltraFET N-Channel MOSFET TO-247 Package 55 V 75 A Enhancement Mode 3-Pin HUF75344G3
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 20.82mm |
| Length | 15.87mm |
| Model | HUF75344G3 |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | UltraFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 75A |
| Maximum Drain Source Voltage Vds | 55V |
| Maximum Drain Source Resistance Rds | 8mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 285W |
| Typical Gate Charge Qg @ Vgs | 175nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
Key Features
- This enhancement mode MOSFET features a maximum continuous drain current of 75 amperes.
- It supports a maximum drain-source voltage of 55 volts, suitable for medium-voltage circuits.
- The device package is TO-247 with a 3-pin through-hole mount design.
- Maximum power dissipation is rated at 285 watts, enabling robust thermal performance.
- The MOSFET has an ultra-low drain-source resistance of 8 milliohms for efficient conduction.
- Typical gate charge is 175 nanocoulombs at 10 volts gate-to-source voltage.
- Operating temperature range spans from -55°C to +175°C for industrial reliability.
- The maximum gate-to-source voltage allowed is -20 to +20 volts, ensuring safe gate operation.
Product Description
The onsemi HUF75344G3 is an UltraFET N-Channel MOSFET designed in a TO-247 package, capable of handling continuous drain currents up to 75 amperes and voltages up to 55 volts. This enhancement mode transistor features ultra-low RDS(on) resistance of only 8 milliohms and a maximum power dissipation of 285 watts, making it well suited for high-efficiency power conversion and switching applications.
Engineered for industrial and commercial use, the device supports a wide operating temperature range from -55°C to +175°C, providing robust performance in demanding environments. Its fast recovery diode and low gate charge of 175 nC facilitate efficient high-frequency switching, ideal for DC to DC converters, switching regulators, and motor driver circuits.
The TO-247 package with through-hole mounting and 3-pin configuration allows for straightforward integration into various electronic and power modules. With a maximum gate-to-source voltage of ±20 V, the transistor ensures safe gate operation under typical and transient conditions.
This UltraFET MOSFET delivers benchmark efficiency in power management applications. Capable of withstanding avalanche energy, it enhances system reliability. Optimized for low conduction and switching losses, reducing heat generation.
Supports compact, high-frequency designs due to low ESR and Miller capacitance. Applied widely in industrial power supplies, motor drives, and switching regulators. Long operating temperature range supports automotive and industrial systems.
TO-247 package offers ease of mounting and effective heat dissipation.
This component is a crucial part of power management solutions requiring reliable, efficient switching performance. Explore the wide range of onsemi UltraFET MOSFETs for diverse application needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 75 amperes.
It can handle a maximum drain-source voltage of 55 volts.
The maximum power dissipation is rated at 285 watts, allowing for robust thermal performance.
This model is packaged in a TO-247 type with a through-hole mount design.
The typical gate charge at a gate-to-source voltage of 10 volts is 175 nanocoulombs.
The operating temperature range spans from -55°C to +175°C.
It features an ultra-low drain-source resistance of 8 milliohms.
The maximum gate-to-source voltage allowed is -20 to +20 volts.
This model has a 3-pin configuration.
It is an N-channel MOSFET designed for enhancement mode operation.
This model is suitable for high-efficiency power conversion and switching applications, such as DC to DC converters and motor drivers.
The country of origin for this model is India.
