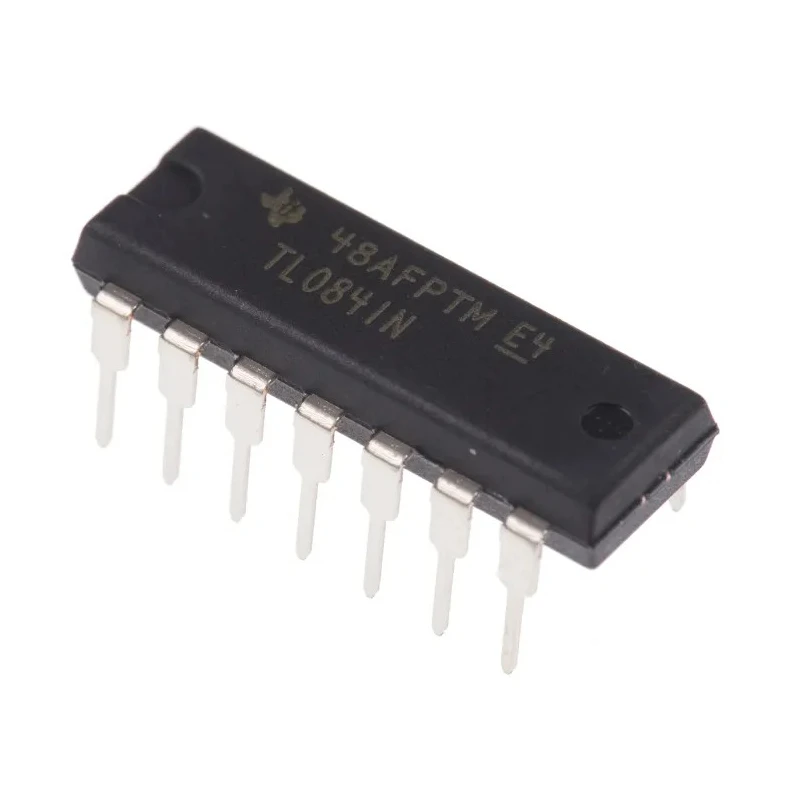

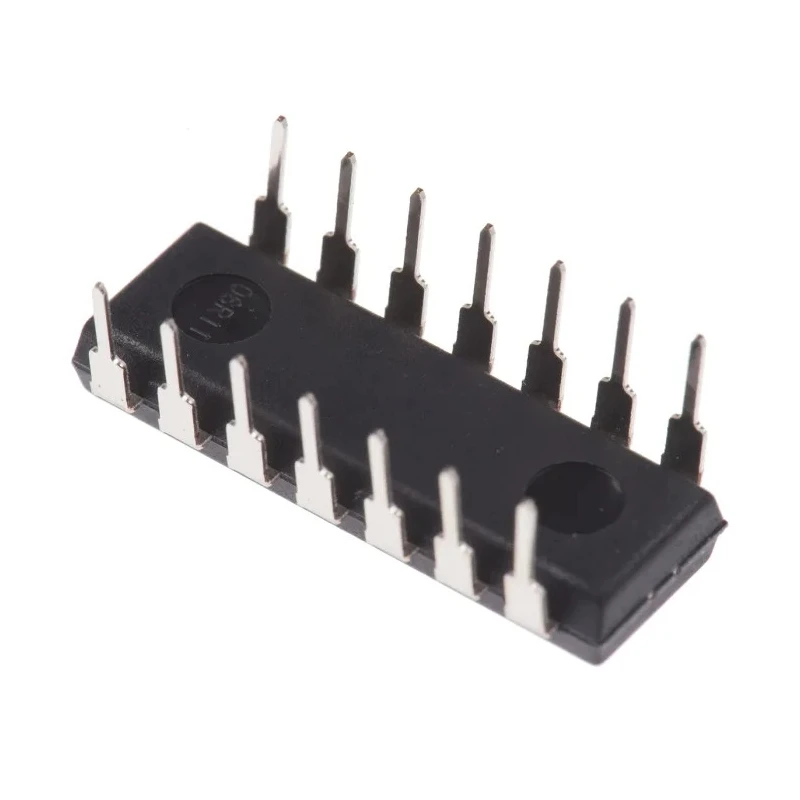

Texas Instruments Operational Amplifier 3 MHz 14-Pin 15V PDIP TL084IN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084IN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Features a wide supply voltage range of ±5 to ±15V.
- Contains 4 channels with 14 pins in a PDIP package.
- Has a high slew rate of 13 V/μs for fast signal processing.
- Input bias current is low at 20 nA ensuring minimal loading effects.
- Operates efficiently across temperature range of -40°C to 85°C.
- Offers low input offset voltage of 9 mV and low total harmonic distortion of 0.003%.
- Comes with automotive standard AEC-Q100 certification.
Product Description
Texas Instruments TL084IN Operational Amplifier 3 MHz 14-Pin 15V PDIP is a JFET input op amp combining low input bias currents and high slew rates. It is part of the TL070 and TL080 families, known for high performance and low noise.
This device supports a wide voltage supply range of ±5 to ±15V, making it suitable for a broad spectrum of electronic circuit applications that require precision amplification. With four channels and a 14-pin PDIP through-hole mount package, the TL084IN is ideal for audio signal processing, instrumentation, and industrial control.
The high slew rate of 13 V/μs and low total harmonic distortion of 0.003% ensure excellent signal fidelity. Its low input offset voltage of 9 mV and input bias current of 20 nA reduce errors in sensitive measurement circuits.
Designed to operate reliably from -40°C to 85°C, it meets automotive standards (AEC-Q100), indicating robustness for automotive electronics and other harsh environments.
The compact physical dimensions (19.3mm length, 6.35mm width, and 4.57mm height) facilitate integration into various PCB designs. The device does not come with additional certifications.
This operational amplifier suits industrial, laboratory, automotive, and audio electronics use cases, providing versatility across sectors requiring precise amplification. Features a wide supply voltage range of ±5 to ±15V.
Contains 4 channels with 14 pins in a PDIP package. Has a high slew rate of 13 V/μs for fast signal processing. Input bias current is low at 20 nA ensuring minimal loading effects. Operates efficiently across temperature range of -40°C to 85°C.
Offers low input offset voltage of 9 mV and low total harmonic distortion of 0.003%. Comes with automotive standard AEC-Q100 certification. Dimensions are compact with length 19.3mm, width 6.35mm, and height 4.57mm.
Explore EnvMart for a comprehensive range of semiconductor components, including precision Operational Amplifiers from Texas Instruments tailored to your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide supply voltage range of ±5 to ±15V.
It contains 4 channels, making it suitable for various applications requiring multiple signal processing paths.
The maximum operating temperature for the TL084IN is 85°C.
The input bias current for this model is low at 20 nA, which helps minimize loading effects in circuits.
It has a high slew rate of 13 V/μs, allowing for fast signal processing.
The input offset voltage is low at 9 mV, which reduces errors in sensitive measurement circuits.
The dimensions are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It meets the automotive standard AEC-Q100, indicating its suitability for automotive applications.
The total harmonic distortion is low at 0.003%, ensuring excellent signal fidelity.
The gain bandwidth product is 3 MHz, which is typical for this operational amplifier.
It comes in a PDIP package, which is suitable for through-hole mounting.
It operates efficiently across a temperature range of -40°C to 85°C.
