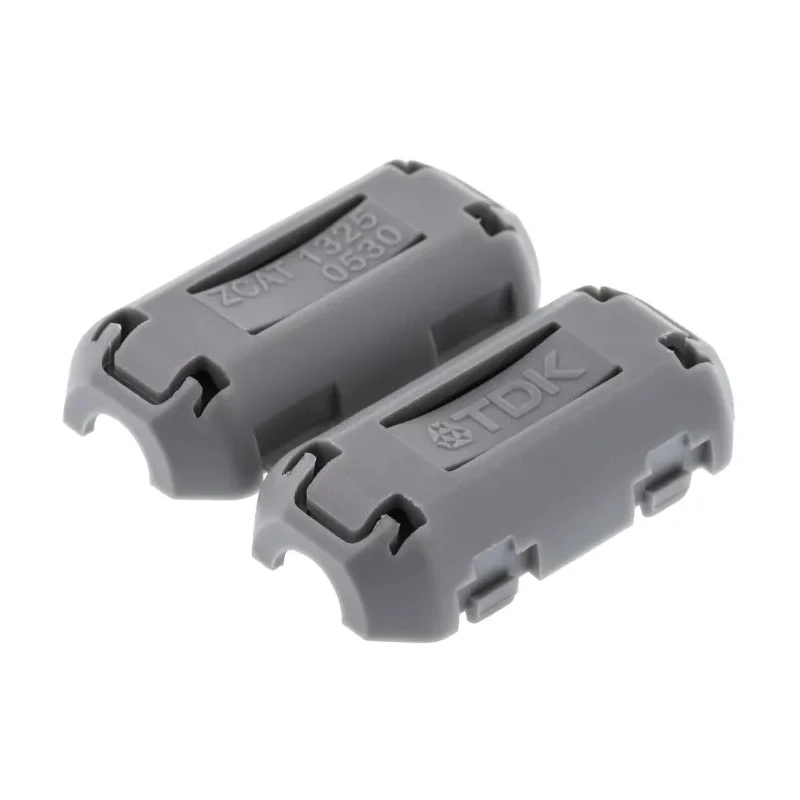

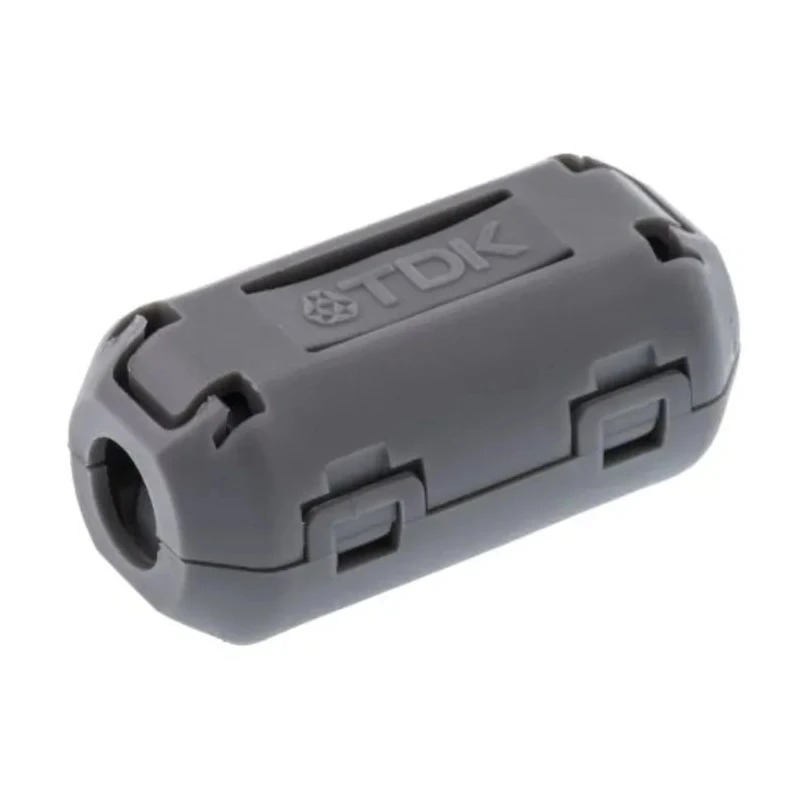

TDK Openable Diameter 5 mm Ferrite Sleeve for Suppression Components ZCAT1325-0530A
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT1325-0530A |
| Series | ZCAT |
| Aperture diameter | 5mm |
| Sub Type | Ferrite Core |
| External Width | 25mm |
| External Depth | 12.8mm |
| External Height | 11.2mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 25 MHz | 50Ω |
| Number of Apertures | 1 |
| Impedance at 300 MHz | 100Ω |
| TDK Openable, Diameter 5 mm Ferrite Sleeve, Apertures | 1 12.8 mm 11.2 mm 25 mm, For Suppression Components |
Key Features
- The sleeve has a single aperture with a diameter of 5 mm.
- It provides impedance of 50Ω at 25 MHz, 100Ω at 300 MHz, and 100Ω at 500 MHz.
- The external dimensions are 12.8 mm depth, 11.2 mm height, and 25 mm width.
- Constructed with 30 material ferrite core and a unique plastic snap-lock case for easy assembly.
- Designed to suppress electromagnetic interference on cables for various electronic devices.
- Its openable design allows for installation without disconnecting cables.
- Compliant with REACH and RoHS standards ensuring environmental safety.
Product Description
TDK ZCAT1325-0530A is an openable ferrite sleeve with a diameter of 5 mm aperture, engineered for suppression components. It has an external depth of 12.8 mm, height of 11.2 mm, and width of 25 mm, constructed with 30 material ferrite core enclosed in a snap-fixing plastic case.
This ferrite sleeve offers impedance of 50Ω at frequencies of 25 MHz, 50 MHz, and 100 MHz, and impedance of 100Ω at 300 MHz and 500 MHz. The design provides effective high-frequency electromagnetic compatibility absorption, particularly for common mode EMC interference, without degrading signal quality.
The snap-lock mechanism allows easy clamp installation on cables without the need for disconnection, making it suitable for use in personal computers, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, facsimiles, and various industrial control equipment.
Split ferrite sleeves like the ZCAT1325-0530A reduce electromagnetic interference radiated or induced in data and power cables. The protective outer housing prevents core breakage during handling and ensures durable performance under cable tie or glue-fixed mounting.

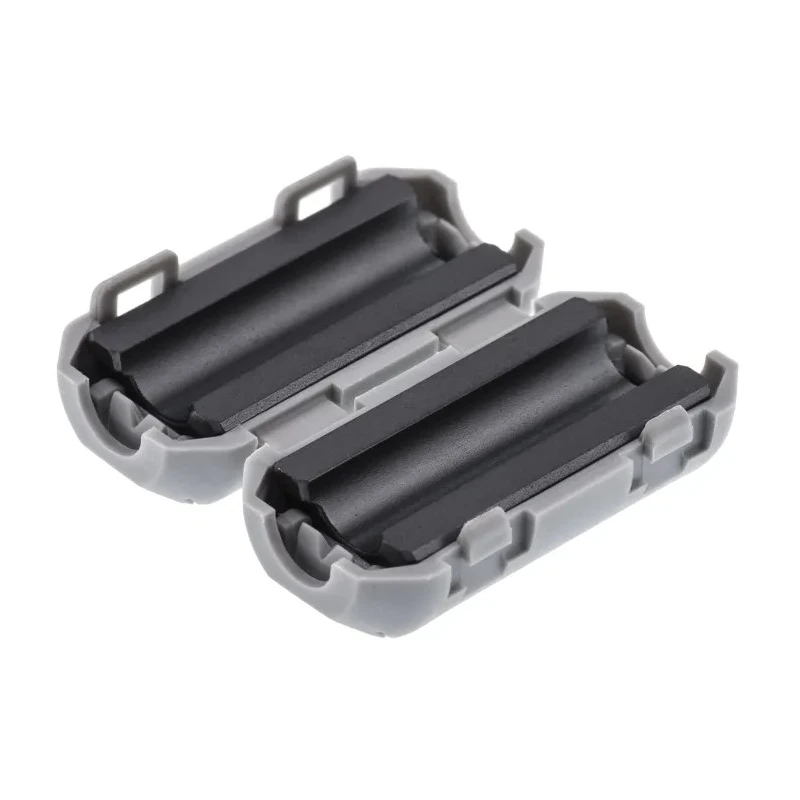

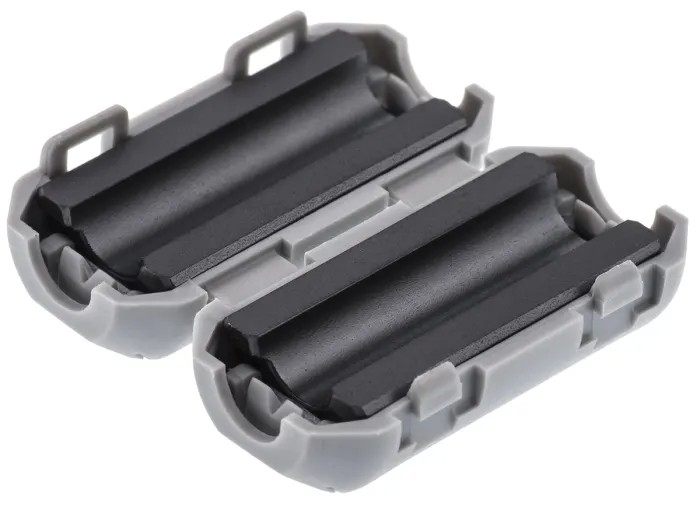

The sleeve features a single 5 mm diameter aperture for cable insertion. It is openable, providing convenience in installation on pre-attached or connected cables. Its construction utilizes 30 ferrite material for optimized suppression.
Dimensions of 12.8 mm depth, 11.2 mm height, and 25 mm width make it suited for a variety of cable sizes. Compatible with REACH and RoHS directives, ensuring compliance with environmental standards. Optimal for EMI filter applications in electronic components and power connectors.
Protects sensitive electronic equipment from common mode high-frequency noise disturbances.
Ideal for industrial, laboratory, communication, and consumer electronic applications, the ZCAT series ferrite sleeves deliver reliable noise suppression enhancing overall system performance. For additional Ferrite Sleeve selections and related passive components, EnvMart provides extensive product ranges and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ferrite sleeve offers an impedance of 50Ω at 25 MHz, 50 MHz, and 100 MHz, and 100Ω at 300 MHz and 500 MHz.
The external dimensions are 12.8 mm in depth, 11.2 mm in height, and 25 mm in width.
The aperture diameter of this model is 5 mm, designed for cable insertion.
It is constructed with a 30 material ferrite core, optimized for electromagnetic interference suppression.
The openable design allows for easy installation on pre-attached or connected cables without the need for disconnection.
This ferrite sleeve is compliant with REACH and RoHS standards, ensuring environmental safety.
It is suitable for use in personal computers, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, facsimiles, and various industrial control equipment.
It is designed to suppress electromagnetic interference on cables, protecting sensitive electronic equipment from common mode high-frequency noise disturbances.
The snap-lock mechanism allows for easy clamp installation on cables, enhancing convenience during setup.
This ferrite sleeve features a single aperture for cable insertion.
The country of origin for this ferrite sleeve is India.
This model belongs to the ZCAT series of ferrite sleeves designed for suppression components.
