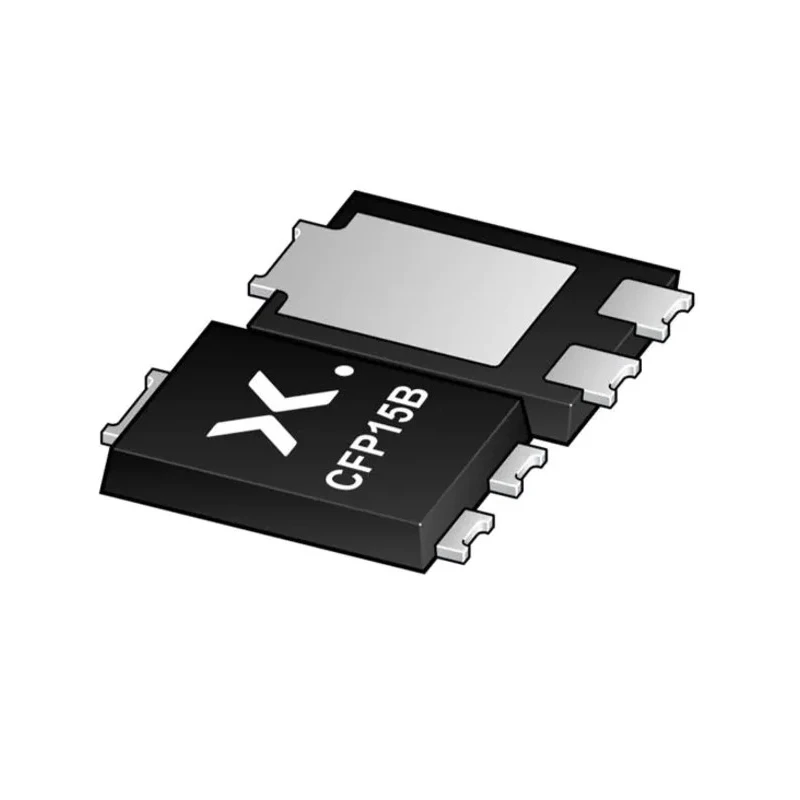

Nexperia Schottky Barrier Rectifier 100V 5A Single Diode 3-Pin CFP15B PMEG100T050ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 5.8mm |
| Model | PMEG100T050ELPEZ |
| Width | 4.3mm |
| Mount Type | PCB |
| Series | PMEG100T50ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 60134 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Offers low forward voltage, reducing power losses in applications.
- Features high efficiency DC-to-DC conversion for modern electronics.
- Flat lead surface mount package CFP15B for easy PCB integration.
- Maximum continuous forward current is 5A and peak reverse repetitive voltage is 100V.
- Automotive qualified to AEC-Q101 standard for demanding environments.
- Ideal for switch mode power supplies, automotive LED lighting and reverse polarity protection.
- Trench MEGA Schottky technology ensures low leakage and fast recovery time.
- Complies with IEC 60134 for quality and performance.
Product Description
Nexperia PMEG100T050ELPEZ is a high-performance Schottky barrier rectifier designed for demanding power applications. With its maximum continuous forward current of 5A and a peak reverse repetitive voltage of 100V, this rectifier is suitable for efficient DC-to-DC conversion, freewheeling, reverse polarity protection, and OR-ing functions in modern electronic circuits.
Encapsulated in a CFP15B package, the device uses clip-bonding technology for high power capability, and its surface-mount configuration supports automated manufacturing processes. The 3-pin single diode design incorporates Trench MEGA Schottky technology, delivering low forward voltage, minimal leakage current, and fast recovery characteristics.
This Schottky rectifier is automotive qualified, meeting the AEC-Q101 standard. It operates reliably between -55°C and 175°C, catering to both industrial and automotive sectors. Its compact form factor (5.8 mm length, 4.3 mm width, 0.95 mm height) ensures ease of integration into PCBs where space is a premium.
Low forward voltage minimizes energy losses in power supply circuits. Peak surge current of 100A and fast recovery time (12ns) support robust performance in transient conditions. IEC 60134 compliance guarantees superior safety and operational reliability.
Suitable for use in automotive LED lighting, switch mode power supplies, and electronic reverse polarity protection. Small and flat lead SMD power plastic package for space-saving PCB design. Flexible for industrial, manufacturing, and commercial electronics requiring stable and efficient rectification.
The Nexperia PMEG100T050ELPEZ stands out for its reliability, efficiency, and versatility in both automotive and industrial use cases. Spare parts, upgrades, and bulk manufacturing benefit from its rugged build and standardized package. Explore EnvMart’s complete range of Nexperia Schottky Diodes and rectifiers for advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 5A.
The peak reverse repetitive voltage for this diode is 100V.
The dimensions of the CFP15B package are 5.8 mm in length, 4.3 mm in width, and 0.95 mm in height.
This rectifier operates reliably between -55°C and 175°C.
It is automotive qualified to the AEC-Q101 standard.
The maximum forward voltage drop is 810mV.
The peak non-repetitive forward surge current is rated at 100A.
The peak reverse recovery time is 12ns.
This model supports PCB mounting.
It is suitable for applications such as switch mode power supplies, automotive LED lighting, and reverse polarity protection.
It complies with the IEC 60134 standard for quality and performance.
This Schottky barrier rectifier has a 3-pin configuration.
