| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 20.95mm |
| Length | 5.2mm |
| Model | PN2907ATF |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | PN2907A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -60V |
| Minimum DC Current Gain hFE | 75 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -5V |
| Maximum Collector Base Voltage VCBO | -60V |
| Maximum Power Dissipation Pd | 625mW |
| Maximum DC Collector Current Idc | -800mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 100MHz |

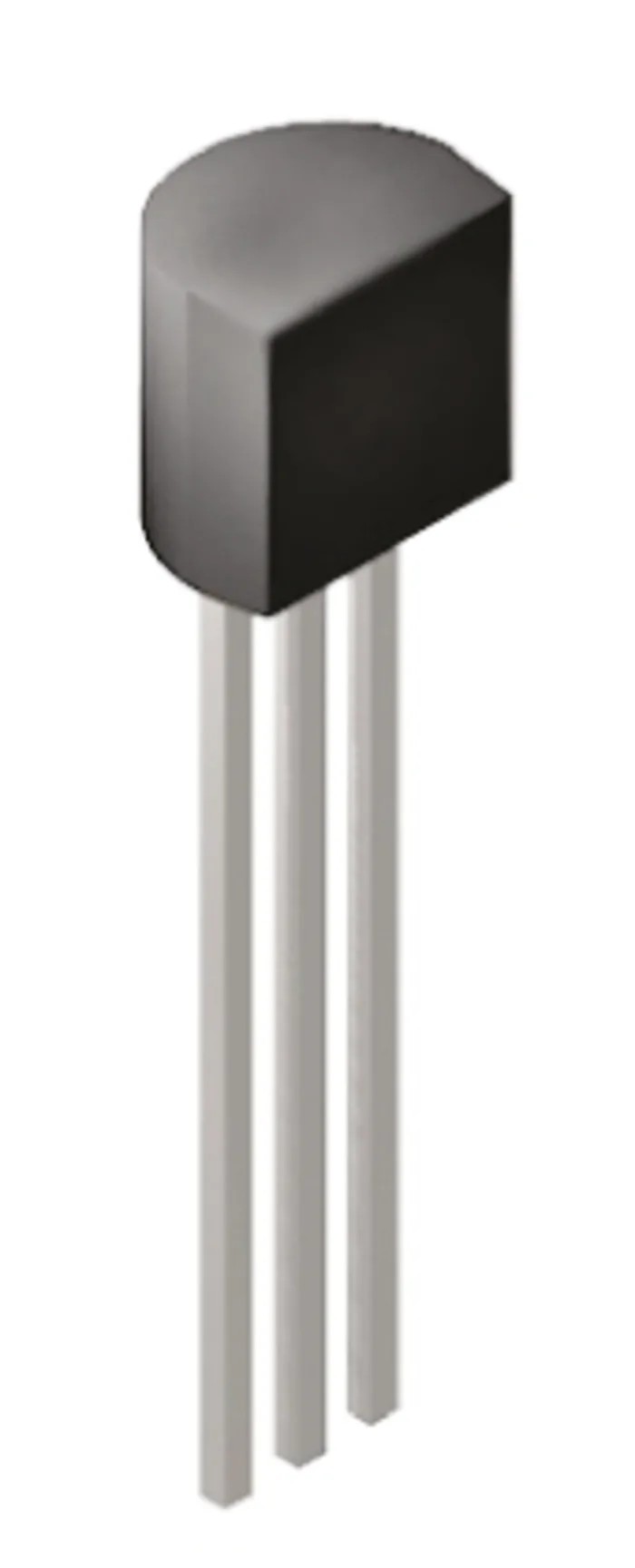

onsemi PN2907ATF is a small signal PNP bipolar junction transistor designed for moderate power and voltage applications in through-hole TO-92 package format. It supports a maximum DC collector current of 800 mA and a collector-emitter voltage rating of 60 V, enabling its use in general purpose amplification and switching circuits.
With a minimum DC current gain (hFE) of 75 and maximum power dissipation of 625 mW, the transistor offers efficient performance and reliability across a wide temperature range from -55°C to 150°C. Its maximum transition frequency of 100 MHz makes it suitable for audio, industrial, and communication device circuits requiring fast switching.
The 3-pin TO-92 package provides a compact footprint for through-hole mounting on PCBs, facilitating easy implementation in prototyping and production environments. The single transistor configuration and PNP polarity enable various analog electronic designs including amplifiers and signal processing.
onsemi's PN2907A series, which includes the PN2907ATF variant, is known for its robust construction, high reliability, and consistent performance meeting industry standards without additional certification marks.
Maximum collector current is 800 mA for moderate load handling. Collector-emitter voltage maximum of 60 V ensures voltage tolerance in circuits. 625 mW maximum power dissipation supports reliable thermal operation. Wide operational temperature range from -55°C to 150°C.
High frequency switching up to 100 MHz. Compact TO-92 through-hole package with 3 pins for board mounting. PNP polarity suitable for a variety of analog applications. Ideal for industrial control, audio amplification, and communication devices.
Single transistor configuration for flexible circuit design.
This transistor is widely used in industrial electronics, audio equipment, communication devices, and laboratory circuits due to its dependable electrical characteristics and package convenience.
Explore a full range of Bipolar Transistors and semiconductors at EnvMart for your electronic design and repair needs.
