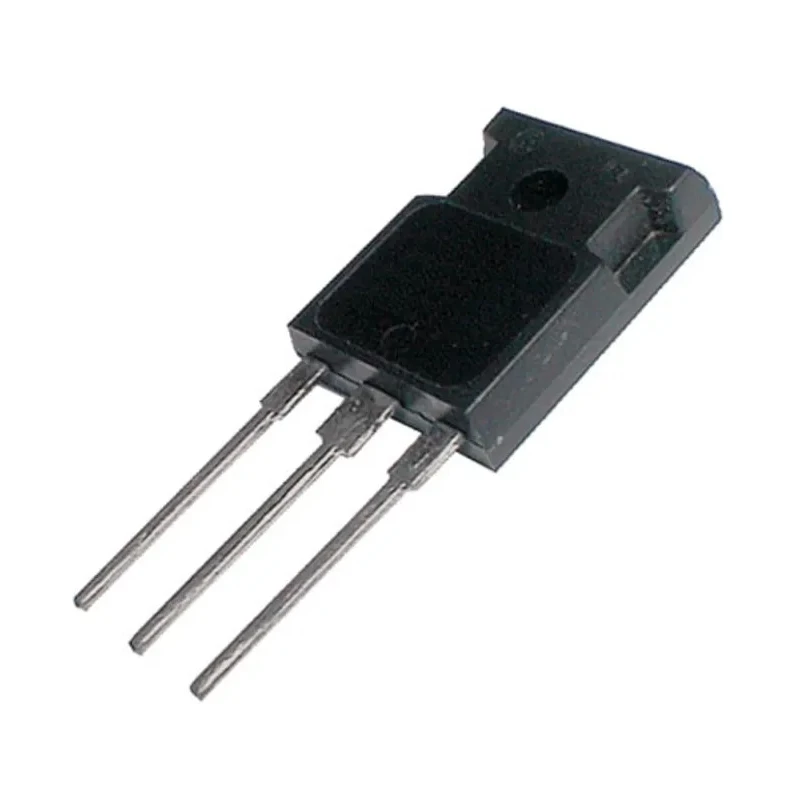

ROHM N-Channel MOSFET, 93 A, 650 V, Enhancement Mode, 3-Pin TO-247 Package SCT3022ALGC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 21mm |
| Length | 16mm |
| Model | SCT3022ALGC11 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | SCT3022AL |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 93A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 29mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 262W |
| Typical Gate Charge Qg @ Vgs | 133nC |
| Maximum Gate Source Voltage Vgs | 22V |
| Forward Voltage Vf | 3.2V |
Key Features
- Designed for high power applications with 262 W maximum power dissipation.
- Featuring low on-resistance of 29 mΩ for efficient conduction.
- Operates in enhancement mode, ensuring reliable switching performance.
- Typical gate charge of 133 nC at Vgs provides fast switching speed.
- Wide operating temperature range from -55°C to 175°C for harsh environments.
- Maximum gate-source voltage rating of ±22 V enhances device robustness.
- Forward voltage drop of 3.2 V suitable for power circulation applications.
- Through-hole mounting in a compact 3-pin TO-247 package with dimensions 21mm height, 16mm length, and 5mm width.
Product Description
ROHM SCT3022ALGC11 is a high-performance N-Channel MOSFET designed for demanding electronic and power management applications. It supports a maximum continuous drain current of 93 A and can withstand a drain-source voltage up to 650 V, making it ideal for high voltage switching and amplification tasks.
This device operates in enhancement mode, allowing efficient control via the gate terminal. Its low drain-source resistance of 29 mΩ reduces conduction losses, while the typical gate charge of 133 nC at gate-source voltage ensures rapid switching capabilities suitable for industrial and commercial electronics circuits.
The MOSFET is housed in a rugged TO-247 package with a 3-pin layout suited for through-hole mounting, facilitating easy installation on PCBs with enhanced heat dissipation. The component measures 21 mm in height, 16 mm in length, and 5 mm in width, balancing size and thermal handling.
It supports a wide operating temperature range from -55°C to 175°C, guaranteeing reliable performance in harsh environmental conditions. Electrical characteristics include a maximum gate-source voltage of ±22 V and a forward voltage of 3.2 V, reflecting its robustness and efficiency in power systems.
The SCT3022ALGC11 is Pb-free with lead plating compliant with RoHS standards, ensuring it meets modern environmental regulations. It contains no automotive-specific certifications but is suitable for general industrial, laboratory, and power supply applications.
Designed for industrial power electronics requiring high current and voltage rating. Enhanced thermal performance due to TO-247 packaging. Low on-resistance minimizes power losses during operation. Fast switching speed for use in DC-DC converters and motor control.
Suitable for use in power supplies, inverters, and UPS systems. Compliance with RoHS directives endorses eco-friendly manufacturing. Explore more ROHM semiconductor products and MOSFETs on EnvMart for robust industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 93 A.
It can withstand a maximum drain-source voltage of 650 V.
This MOSFET is housed in a TO-247 package, which is designed for through-hole mounting.
The operating temperature range is from -55°C to 175°C.
The typical gate charge at a gate-source voltage is 133 nC.
The on-resistance is 29 mΩ, which helps in reducing conduction losses.
It has a maximum power dissipation capability of 262 W.
The forward voltage drop is 3.2 V, suitable for power circulation applications.
This model features a 3-pin layout.
The maximum gate-source voltage rating is ±22 V.
Yes, it is Pb-free with lead plating compliant with RoHS standards.
It is suitable for use in power supplies, inverters, and UPS systems.
