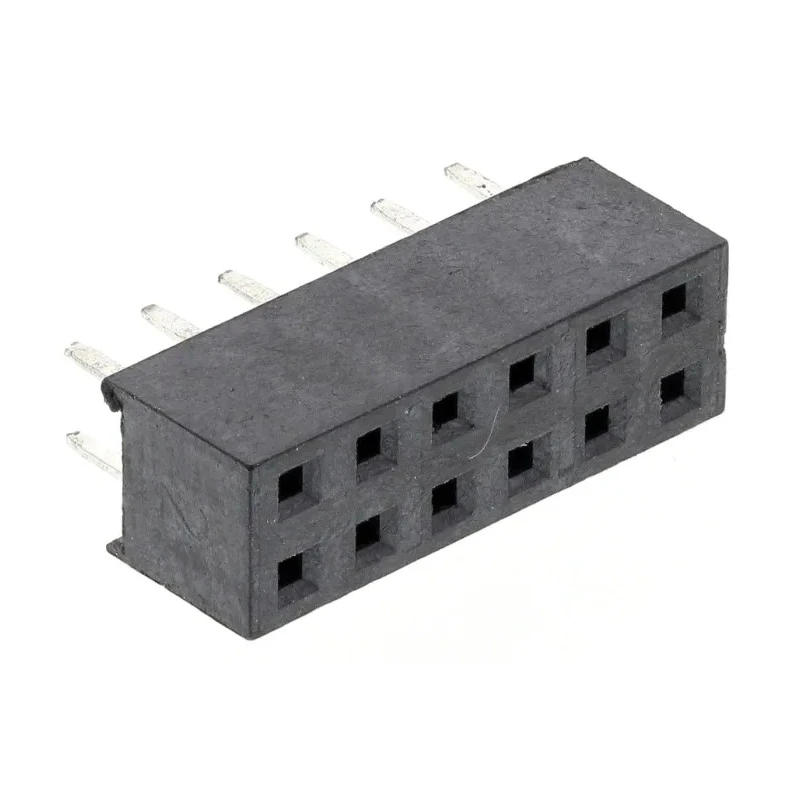

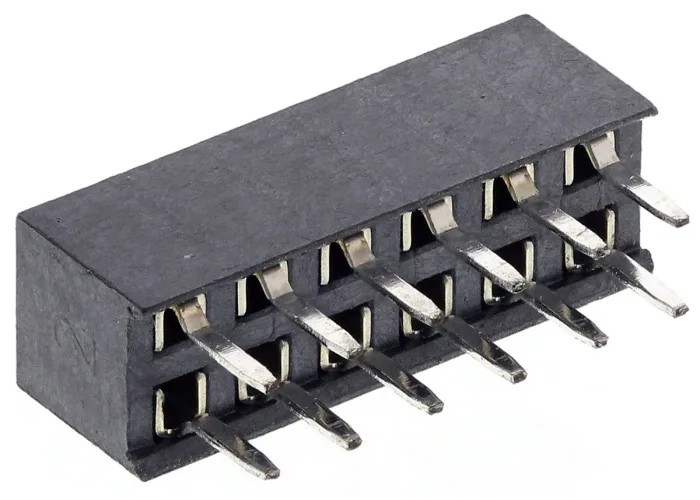

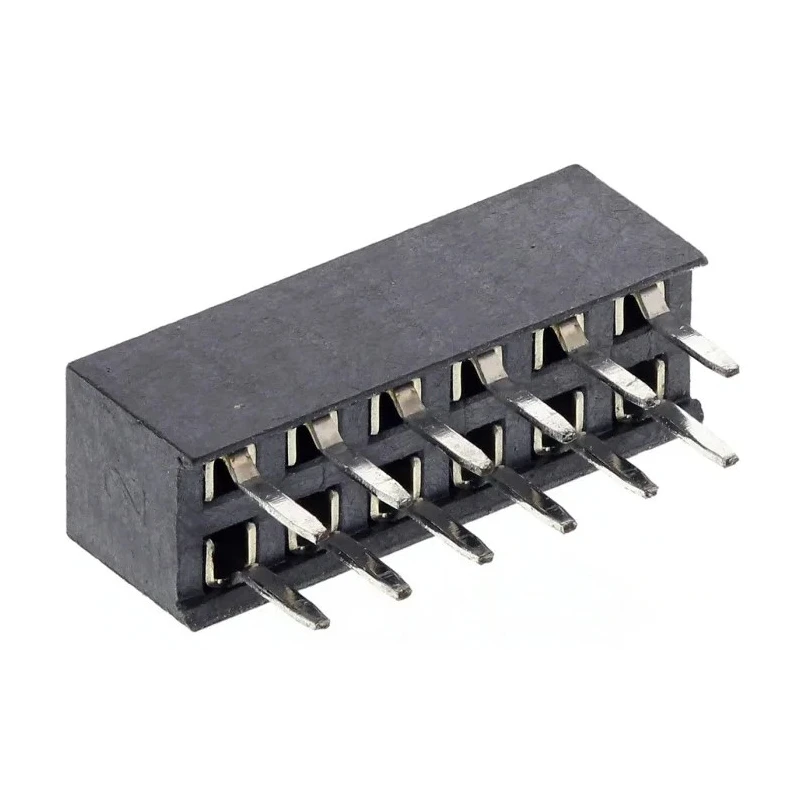

HARWIN M22 Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2 mm Pitch, 12A, 500V M22-7140642

HARWIN M22-7140642 is a high-quality M22 Series Straight Through Hole PCB Socket featuring 12 female contacts in a 2-row configuration with a fine pitch of 2 mm. This PCB socket is engineered for board-to-board applications requiring a reliable and compact connector solution.

The housing is fabricated from UL94V-0 rated Liquid Crystal Polymer, capable of withstanding high temperature soldering processes and ensuring long-term thermal stability. The bronze contacts are gold plated to offer superior conductivity and corrosion resistance, contributing to reliable electrical connections.

This connector supports a current rating up to 12A per contact and can operate efficiently at voltages up to 500V. It is designed for through-hole PCB mounting with a straight orientation to facilitate easy assembly and integration onto printed circuit boards.

With a minimum operating temperature of -25°C and maximum operating temperature of 105°C, these sockets are suitable for harsh industrial and consumer electronic environments. The dual beam contact design is highly durable, allowing up to 300 mating cycles while maintaining consistent performance.

Ideal for use in consumer electronics, communication devices, drives, controls, industrial monitoring, and personal computing applications, the HARWIN M22 Series PCB sockets provide a balance of compact design and high reliability to meet demanding industry requirements.

Comprises 12 female contacts arranged in 2 rows with 2 mm pitch spacing. Constructed with high temperature Liquid Crystal Polymer housing ensuring durability and UL94V-0 compliance. Gold plated bronze contacts provide excellent electrical conductivity and corrosion resistance.

Capable of withstanding currents up to 12A and voltages up to 500V. Designed for through-hole mounting with straight orientation for easy PCB integration. Operates reliably across a temperature range from -25°C to 105°C.

Supports up to 300 mating cycles ensuring long service life. Compact design facilitates increased PCB density and height restrictions. Widely used in consumer electronics, communications equipment, industrial monitoring, and embedded computer systems.

Manufactured in Taiwan, Province Of China, ensuring high production standards.

This product forms part of the large portfolio of high-reliability PCB connectors suited for industrial, laboratory, communication, and commercial electronics manufacturing sectors. Explore more about HARWIN connectors and other premium PCB Socket products here at EnvMart.
