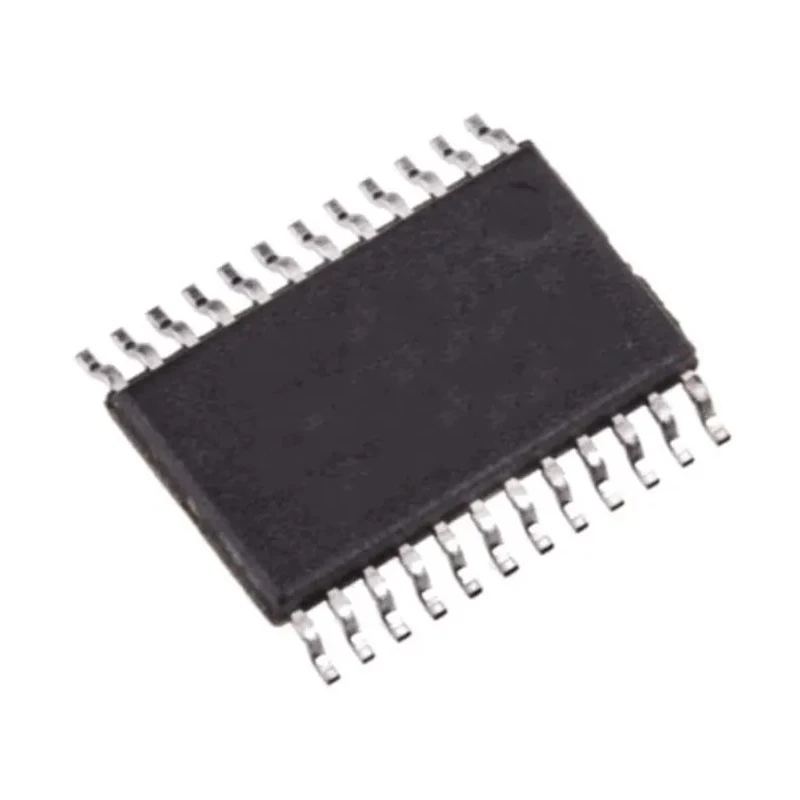

Renesas Electronics Line Transceiver ISL83387EIVZ CMOS Inverting 24-Pin TSSOP 3-5.5V Supply ISL83387EIVZ

Renesas Electronics ISL83387EIVZ line transceiver is a CMOS logic family device designed for RS-232 line interface communications. With an inverting function, it supports bi-directional data transmission and reception using a single device. The component is supplied in a 24-pin thin shrink small outline package (TSSOP) optimized for surface mounting in compact electronic designs.

Operating with a voltage supply ranging from 3 V to 5.5 V, the transceiver integrates robust features such as ±15kV electrostatic discharge (ESD) protection on both transmitter and receiver pins compliant with RS-232 requirements. This protection safeguards sensitive circuitry from electrical damage during handling or in operational environments.

The ISL83387EIVZ exhibits an exceptionally low supply current of 300μA, reducing power consumption in portable and battery-powered applications. It incorporates manual and enhanced automatic powerdown modes where the receiver remains active, allowing continuous monitoring of signals even during power save conditions. This functionality is critical in industrial, communication, and automotive electronic systems that demand reliability and energy efficiency.

Compact physical dimensions of 7.8 mm length, 4.4 mm width, and 1.2 mm height facilitate integration into densely packed printed circuit boards (PCBs). The device is designed to operate reliably over a temperature range from -40°C to +80°C, suitable for industrial and commercial usage scenarios where thermal stresses may occur.

The maximum propagation delay time is 0.15 microseconds at typical capacitive load, ensuring quick signal turnaround and minimal latency in communication lines. Output drive capability includes a maximum high-level output current of -1mA and low-level output current of 1.6mA, providing sufficient drive strength for standard RS-232 loads.

This line transceiver is ideal for applications in electronic communications equipment, industrial control systems, and embedded computing platforms requiring efficient, low power, and compact RS-232 interface solutions. It offers a reliable, high-performance component for electrical signal transmission in modern electronic designs.

Complies with EIA/TIA-232 RS-232 communication standards. ±15kV ESD protection on RS-232 transmitter and receiver pins. Low supply current with manual and automatic powerdown features. Active receiver in powerdown enhances signal monitoring.

Compact 24-pin TSSOP package for surface mount applications. Wide operating temperature range supports industrial conditions. Fast propagation delay of 0.15μs for responsive communication. Inverting CMOS logic for reliable signal processing.

Suitable for use in industrial, laboratory, telecommunications, and automotive environments. Explore the comprehensive range of semiconductor Line Interface ICs and components on EnvMart for reliable and efficient electronic solutions.
