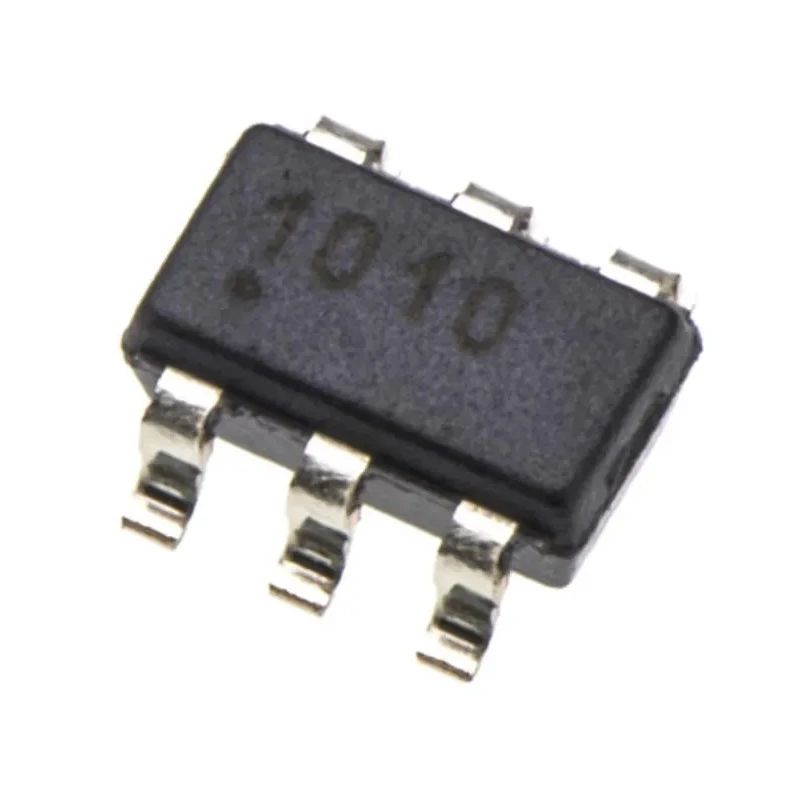

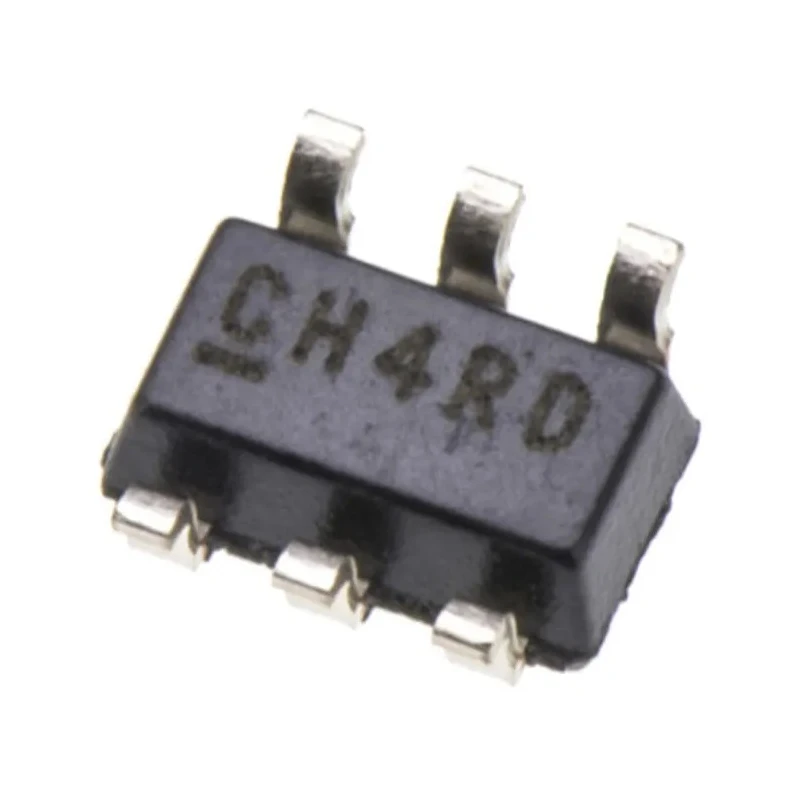

Renesas Electronics Line Transceiver, 3 State, Bipolar, 6-Pin SOT-23 ISL3295EIHZ-T7A

Renesas Electronics ISL3295EIHZ-T7A is a line transceiver designed for robust and efficient data transmission over long twisted pair cabling commonly used in RS-485 communication standards.

This device features a 3 state output allowing high impedance during idle states, minimizing bus contention. Its bipolar polarity and differential input type improve noise immunity which is essential for industrial control, automation, and HVAC systems where data integrity is critical.

Operating with a CMOS logic family, it supports TTL and CMOS compatible logic functions, making it versatile for integration with varied digital electronics. The device operates within 3.3V to 5.5V power supply range and offers a low supply current of just 1 microampere to optimize power usage.

It is housed in a compact 6-pin SOT-23 surface mount package with precise dimensions of 2.9mm length, 2.8mm width, and 1.15mm height, suitable for space-constrained PCB layouts. The transceiver ensures fast data timing with a maximum propagation delay of only 42 nanoseconds, enhancing communication speed in time-critical applications.

Designed to operate reliably in harsh environments with temperature ratings from -40°C up to 125°C, it is ideal for automotive, manufacturing, and industrial process control environments.

Operates with a supply voltage range of 3.3V to 5.5V. Supports differential input and output with 3 state logic functionality. Designed with CMOS logic family, compatible with TTL and CMOS logic functions. Maximum propagation delay time of 42 nanoseconds at specified load capacitance.

Functions reliably in temperatures from -40°C to 125°C. Compact surface mount package measuring 2.9mm length, 2.8mm width, and 1.15mm height. Low supply current consumption of approximately 1 microampere. Specifically suited for RS-485 line driver and receiver applications.

Manufactured to high standards by Renesas Electronics ensuring consistency and quality.

This line transceiver is highly suitable for industrial automation, data communication networks, and other electronic systems requiring reliable differential signaling. It aligns with industry requirements for surface mount device packages and low power consumption while maintaining data accuracy.
