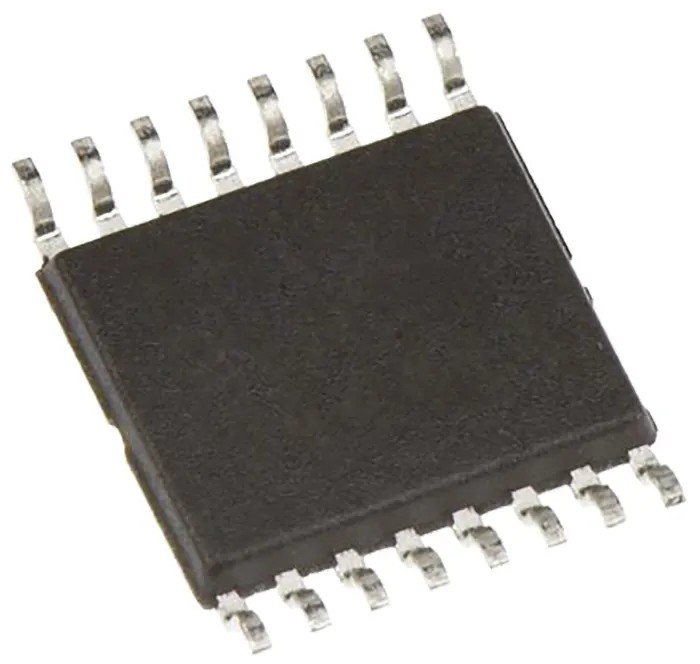

Renesas Electronics Line Transceiver TTL/CMOS 16-Pin TSSOP ICL3221ECVZ

Renesas Electronics ICL3221ECVZ is a high-performance line transceiver featuring TTL/CMOS logic compatible outputs housed in a 16-pin TSSOP surface mount package measuring 6.4mm in width, 5mm in length, and 1.2mm in height. This device is optimized for reliable signal transmission adhering to RS-232 standards with low power consumption and fast response times.

Operating over a supply voltage range of 3 to 5.5 volts, the ICL3221ECVZ offers a maximum propagation delay of 0.15 microseconds at the specified capacitive load. It supports a wide industrial temperature range from -40°C to 125°C, making it suitable for robust electronic and communication equipment.

The line transceiver complies with V.28/V.24 standards and carries IEC61000-4-2 ESD protection ensuring durability against electrostatic discharges. With an ultra-low supply current of just 1 microampere, it is ideal for power-sensitive applications requiring efficient data interface solutions.

Its compact TSSOP package enables space-saving PCB layouts in industrial controllers, data acquisition, and communication systems. The device supports single-ended input and TTL/CMOS output types, enabling flexible integration into a broad range of electronic designs.

Operates between 3V and 5.5V supply voltages ensuring flexibility across power domains. Fast switching with a maximum propagation delay of 0.15μs enhances signal integrity. Extended temperature range from -40°C to +125°C ensures performance in harsh environments.

16-pin TSSOP surface mount design allows compact and efficient PCB integration. Incorporates RS-232 line driver and receiver functions supporting data rates up to 1Mbps. Low supply current of 1μA ideal for energy-conscious systems.

Meets recognized standards including V.28/V.24 and IEC61000-4-2 for signal and ESD robustness.

This line transceiver is widely used in industrial communication interfaces, automation controls, telecommunication devices, and other demanding electronic applications requiring reliable signal transmission with minimal power consumption.
